Cisco UCS 6324 Fabric Interconnect
The Cisco UCS 6324 Fabric Interconnect (UCS-FI-M-6324) is an integrated fabric interconnect and I/O
module. It can be configured only with the UCSB-5108-AC2 and UCSB-5108-DC2 versions of the chassis.

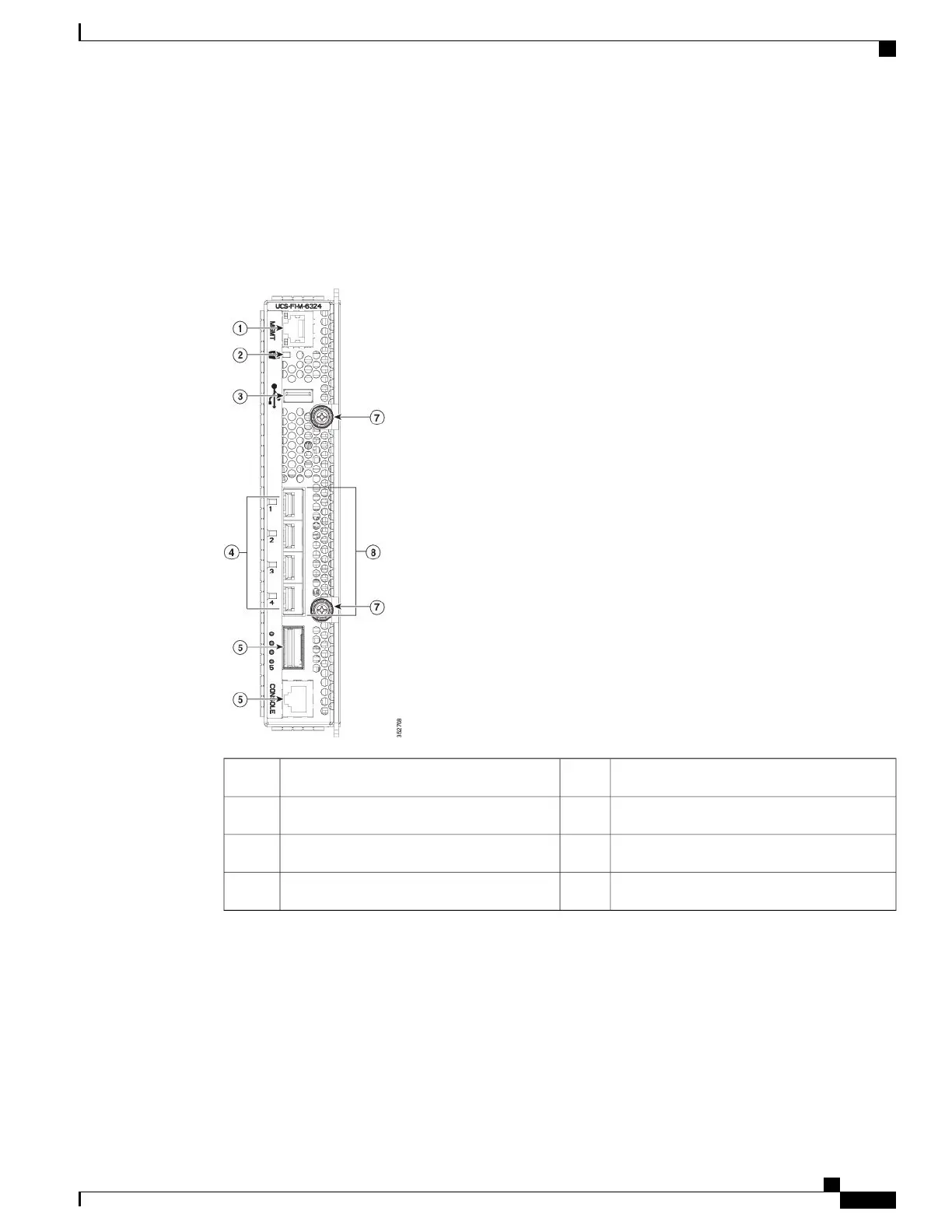

Figure 12: Cisco UCS 6324 Fabric Interconnect
QSFP+ licensed server port5Management port1
Console management port6Power-on LED2
Ejector captive screws7USB port3
Four SPF+ unified ports8Port LEDs4
The Cisco UCS 6324 Fabric Interconnect connects directly to external Cisco Nexus switches through 10-Gigabit
Ethernet ports and Fibre Channel over Ethernet (FCoE) ports.
The Cisco UCS 6324 Fabric Interconnect fits into the back of the Cisco UCS Mini chassis. Each Cisco UCS
Mini chassis can support up to two UCS 6324 Fabric Interconnects, which enables increased capacity as well
as redundancy.
Cisco UCS 5108 Server Chassis Installation Guide
23
Overview
Cisco UCS 6324 Fabric Interconnect
