Cisco UCS B22 M3 Blade Servers
For full service and installation instructions, see the Cisco UCS B22 Blade Server Installation and Service
Note. You can install up to eight UCS B22 M3 Blade Servers to a chassis.

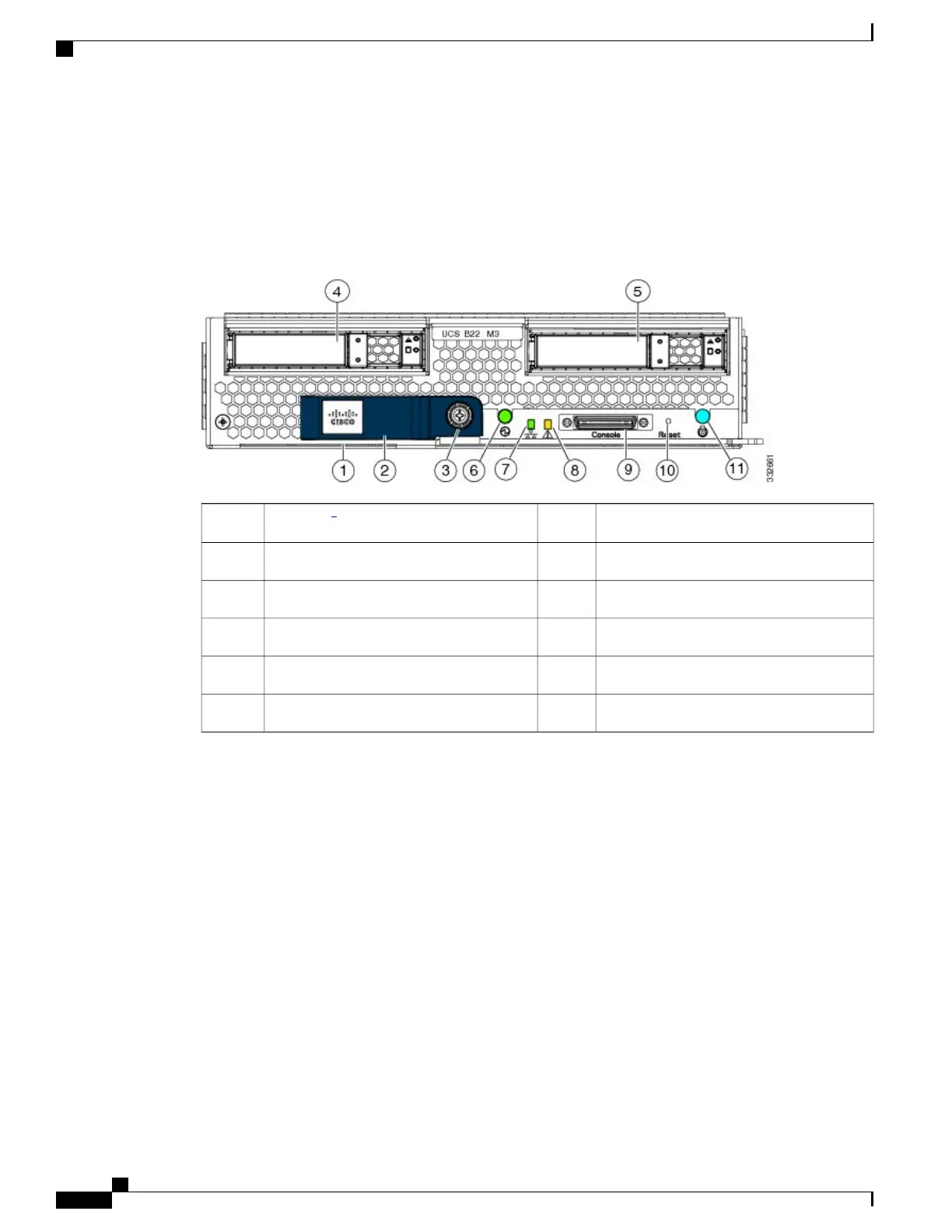

Figure 4: Cisco UCS B22 M3
Network link status LED7Asset tag
2
1
Blade health LED8Blade ejector handle2
Console connector9Ejector captive screw3
Reset button access10Hard drive bay 14
Beaconing LED and button11Hard drive bay 25
Power button and LED6
2
Each server has a blank plastic asset tag that pulls out of the front panel, provided so you can add your own asset tracking label without interfering with the
intended air flow.
LEDs
The LED indicators indicate whether the blade server is in active or standby mode, the status of the network
link, the over all health of the blade server, and whether the server is set to give a flashing blue beaconing
indication. See Interpreting LEDs, on page 36 for details.
The removable hard disks also have LEDs indicating hard disk access activity and hard disk health.
Buttons
The Reset button is just inside the chassis and must be pressed using the tip of a paper clip or a similar item.
Hold the button down for five seconds and then release it to restart the server if other methods of restarting
are not working.
The beaconing function for an individual server may get turned on or off by pressing the combination button
and LED. See Interpreting LEDs, on page 36 for details.
Cisco UCS 5108 Server Chassis Installation Guide
10
Overview
Blade Servers
