B250/B440 M1/M2 Connectivity (Full-Width Blades with Two Mezzanine Slots)
Figure 12 shows in general how the B250/B440 M1/M2 blade servers connect to the fabric extenders in the
UCS 5108 chassis. Several cards are available for use in the two card adapter slots (see Tab le 16 on page
27). Note that adapter slot 0 is on the right when the server is viewed from the rear and slot 1 is on the
left.

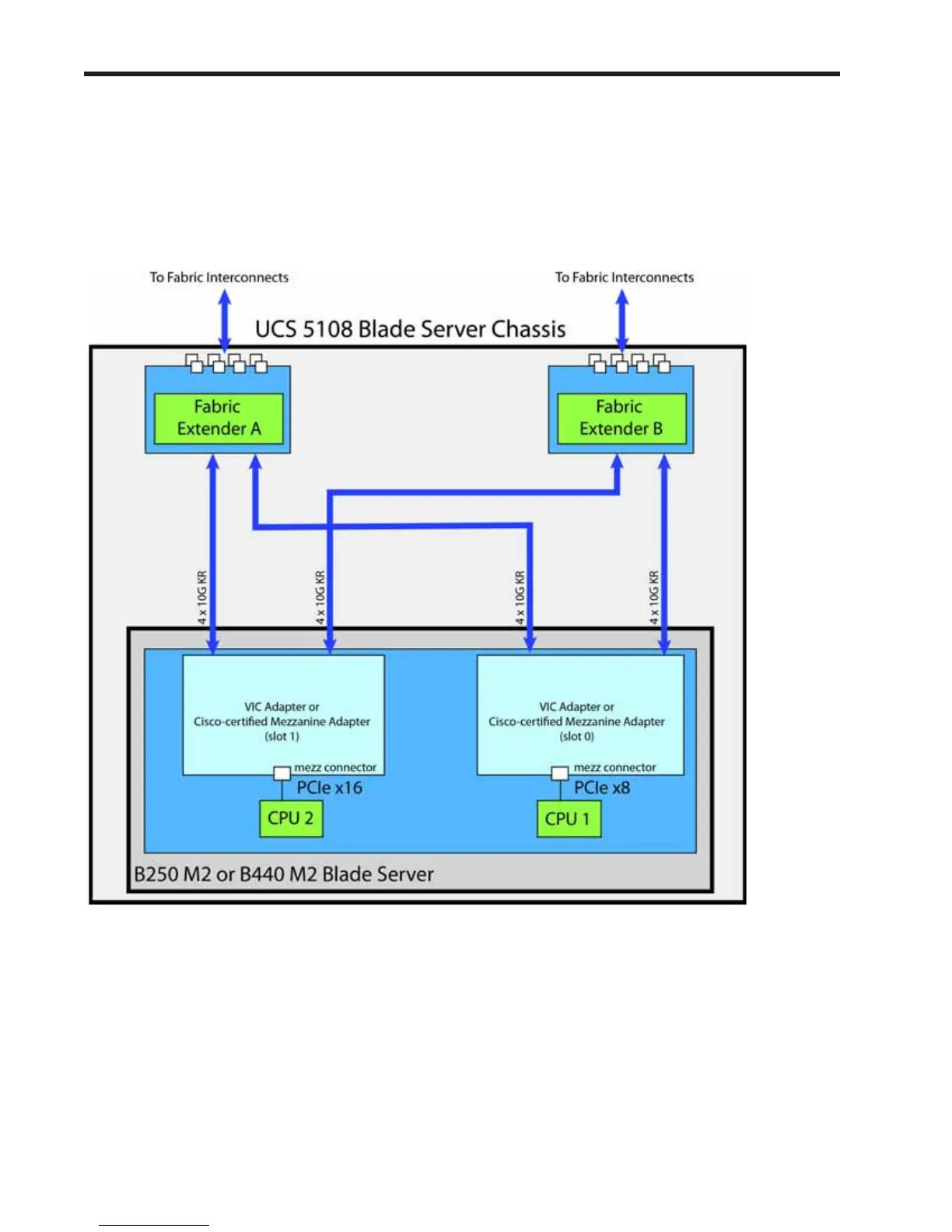

Figure 12 B250/B440 M1/M2 to Fabric Extenders

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
