Cisco UCS 5108 Spec Sheet

Cisco UCS 5108 Blade Server Chassis
4
DETAILED VIEWS
DETAILED VIEWS
Chassis Front Views

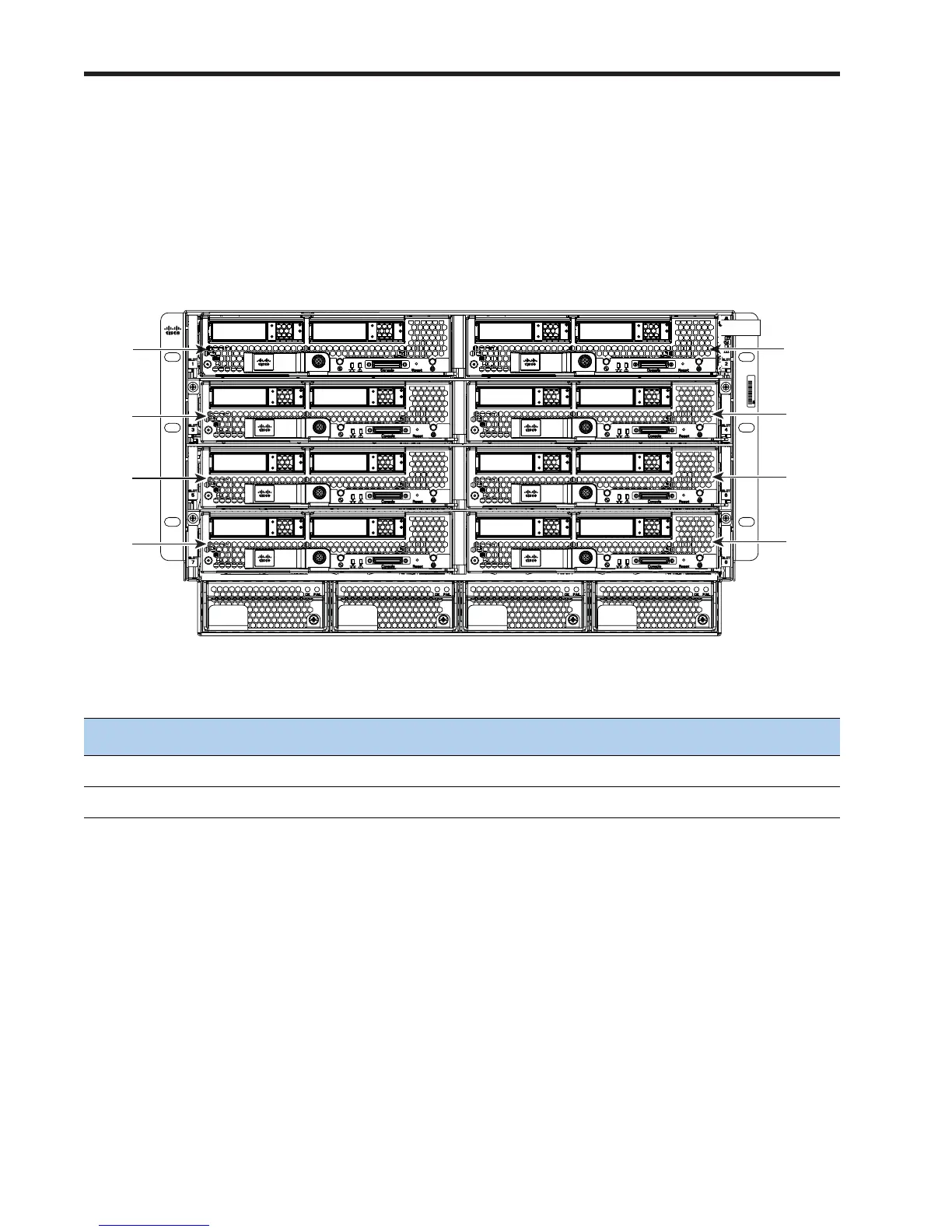

Figure 3 is a detailed front view of the Cisco UCS 5108 Blade Server Chassis with eight half-width blade
servers installed.
Figure 3 5108 Chassis Front View With Eight Half-Width Blade Servers Installed
Table 1 Front View Callouts
Callout Description
Slot 1 - 8 Slot numbering for half-width blade servers
Power Supply 1 - 4 4 x 2500 W power supplies
Slot 1
Slot 3
Slot 5
Slot 7
Power Supply 1 Power Supply 2 Power Supply 3 Power Supply 4
Slot 2
Slot 4
Slot 6
Slot 8

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
