Cisco UCS 5108 Spec Sheet

Cisco UCS 5108 Blade Server Chassis
40
SUPPLEMENTAL MATERIAL
Connectivity Between Fabric Extender and Fabric Interconnect
Figure 24 shows the correct method to connect the Fabric Interconnect modules to two separate port
fabric interconnects. You must connect each port fabric interconnect to the chassis through its own Fabric
Extender.

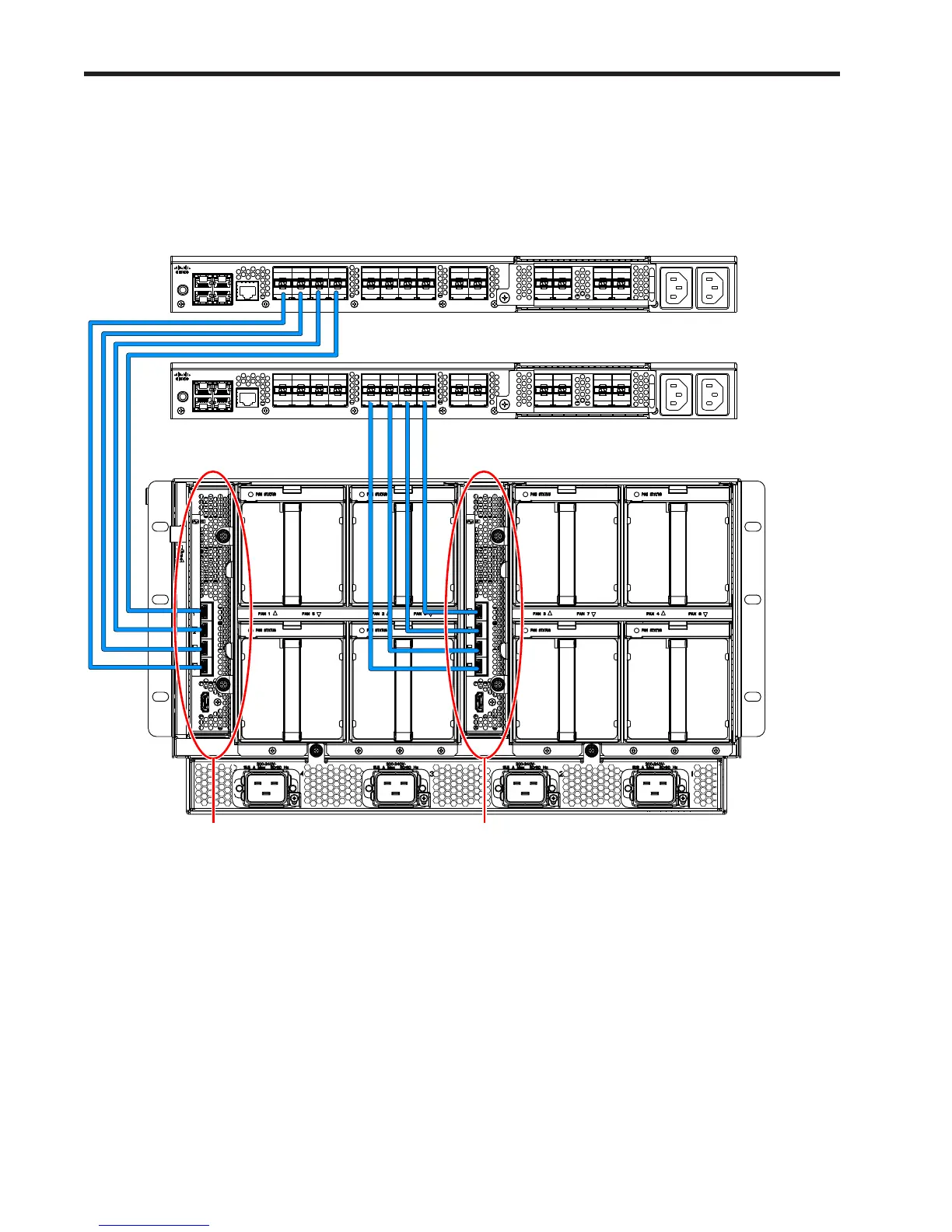

Figure 24 Connecting Blade Chassis Fabric Extenders to Fabric Interconnect Chassis
192749
Fabric Interconnect A
Fabric Interconnect B
Fabric Extender 1
Fabric Extender 2

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
