Cisco UCS 5108 Spec Sheet

Cisco UCS 5108 Blade Server Chassis
6
DETAILED VIEWS
Chassis Rear View

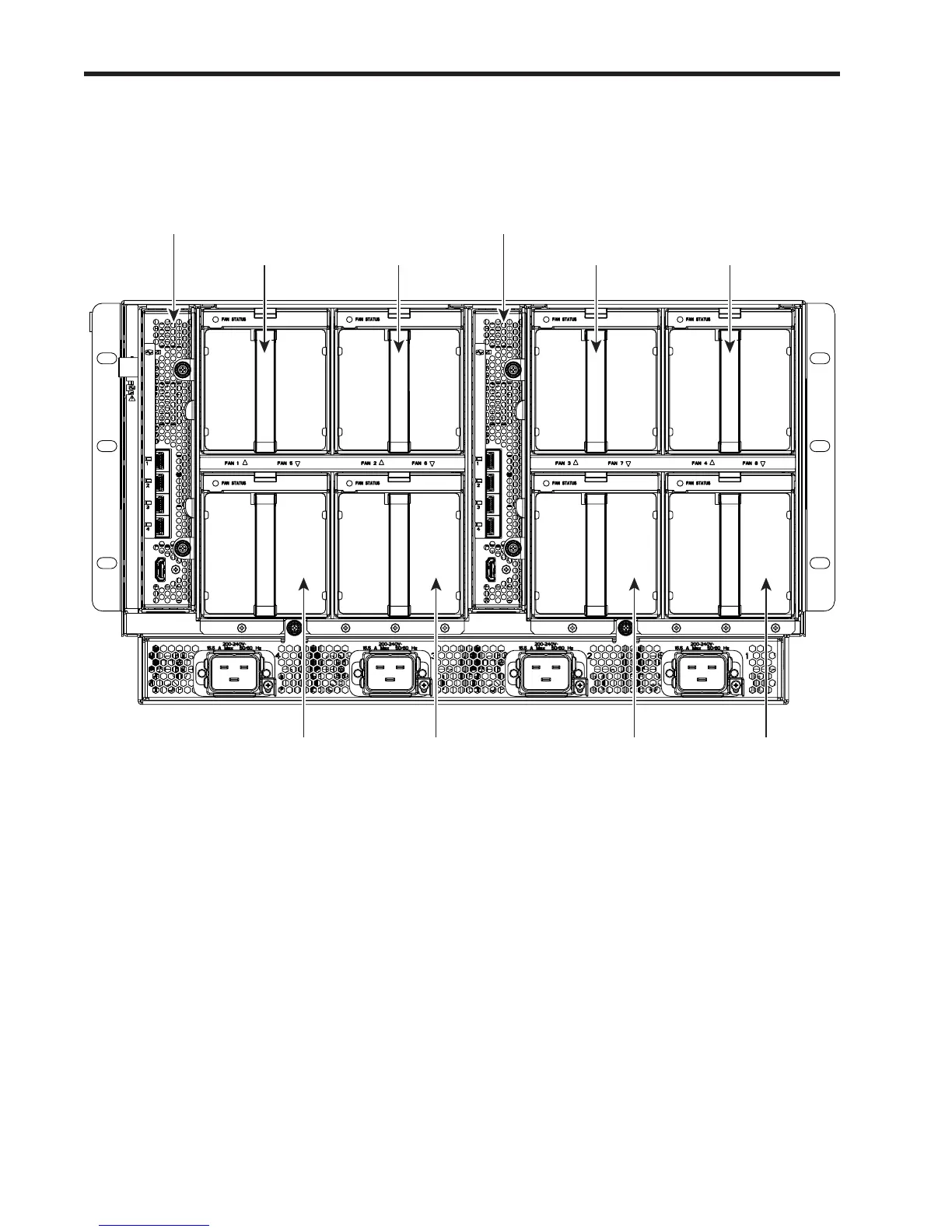

Figure 5 shows the rear view of the 5108 chassis (AC power version).
Figure 5 Chassis Rear View (AC power supplies)
Power Supply 1Power Supply 2Power Supply 3Power Supply 4
Fabric Extender
Fan #1
Fabric Extender
Fan #5 Fan #6 Fan #7 Fan #8
Fan #2 Fan #3 Fan #4

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
