Cisco UCS 5108 Spec Sheet

Cisco UCS 5108 Blade Server Chassis
SUPPLEMENTAL MATERIAL
35
B420 M3 Connectivity (Full-Width Blade with Three Mezzanine Slots)
Figure 20 shows in general how the B420 M3 blade server connects to the fabric extenders in the UCS 5108
chassis. Several cards available for use in the three adapter card slots (see Table 19 on page 36 and
Table 20 on page 37).

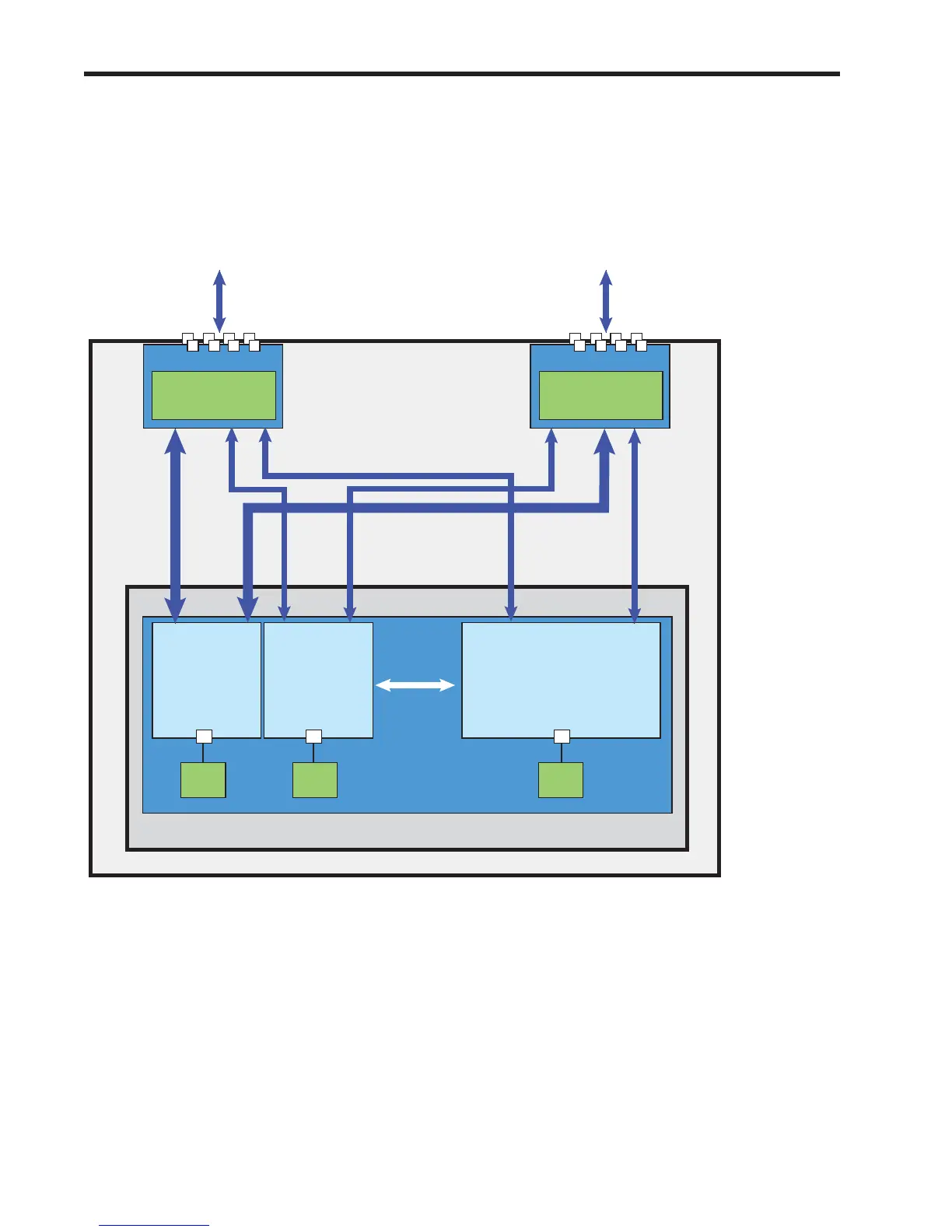

Figure 20 B420 M3 to Fabric Extenders
VIC 1240
Adapter
Port
Expander
VIC 1280
Adapter
CPU
CPUCPU
PCIe x16PCIe x16PCIe x16
4 x 10G KR
4 x 10G KR 4 x 10G KR 2 x 10G KR 2 x 10G KR 2 x 10G KR 2 x 10G KR
VIC 1240 connector
mezz connector #1mezz connector #2
Fabric
Extender A
UCS 5108 Blade Server Chassis
To Fabric Interconnects To Fabric Interconnects
B420 M3 Blade Server
Fabric
Extender B

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
