Cisco UCS 5108 Blade Server Chassis
OVERVIEW
3
OVERVIEW
The UCS 5108 chassis is a 6RU chassis the that can accommodate up to 8 half-width blades or 4 full-width
blades, or any combination that will fit in the chassis. The chassis has two I/O bays for Fabric Extenders
such as the UCS 2208XP.
Figure 1 shows the front and rear views of a 5108 chassis filled the following blade servers (starting from
top):
■ Two Cisco UCS B200 M3 half-width blade servers
■ One Cisco UCS B250 M2 full-width blade server
■ One Cisco UCS B420 M3 full-width blade server
■ One Cisco UCS B440 M2 full-width blade server

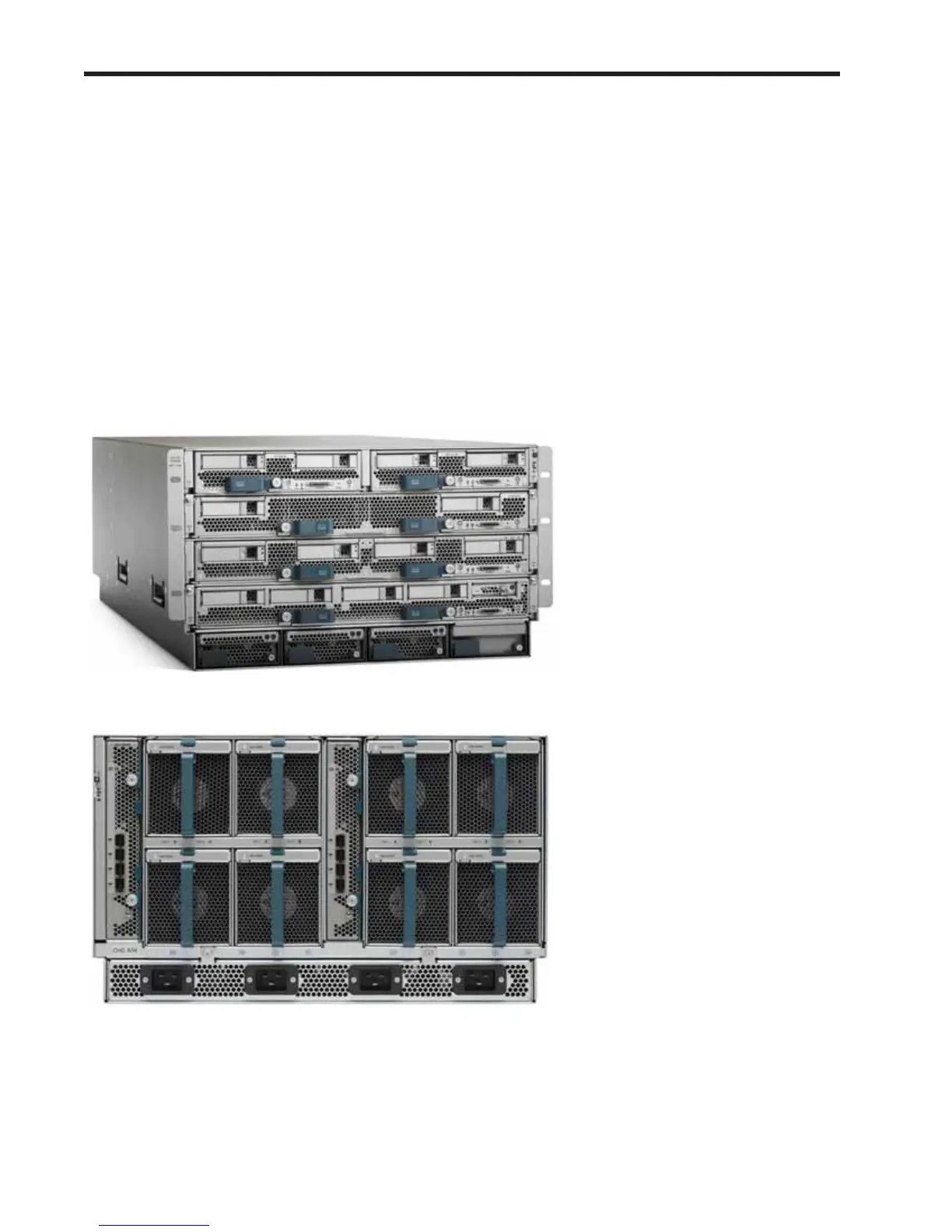

Figure 1 Cisco UCS 5108 Blade Server Chassis (front view)
Figure 2 Cisco UCS 5108 Blade Server Chassis (rear view)
