Cisco UCS 5108 Spec Sheet

Cisco UCS 5108 Blade Server Chassis
22
SUPPLEMENTAL MATERIAL
B200/B230 M1/M2Connectivity (Half-Width Blades with One Mezzanine Slot)

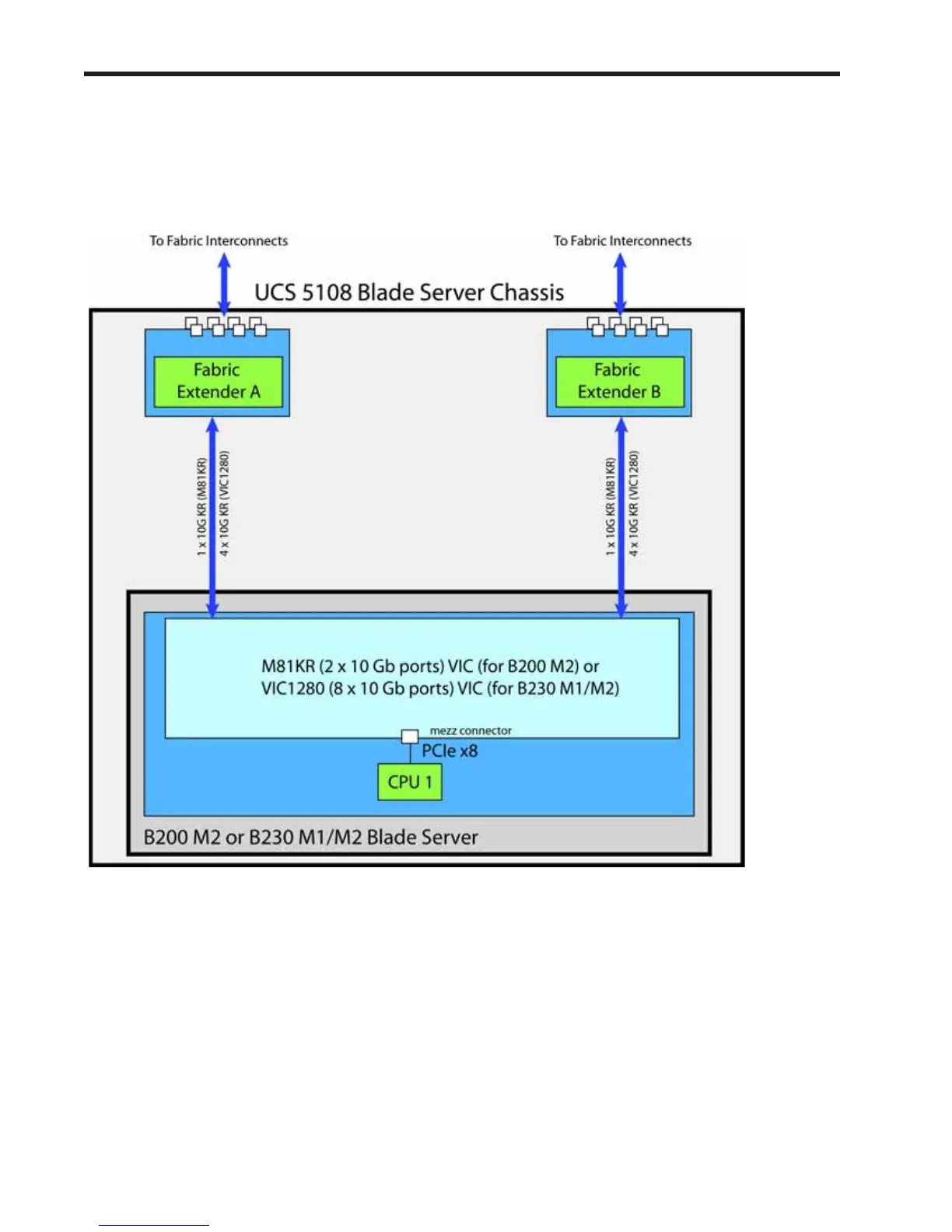

Figure 8 shows in general how the B200/B230 M1/M2 blade servers connect to the fabric extenders in the
UCS 5108 chassis. Several cards are available for use in the card adapter slot (see Table 15 on page 23).
Figure 8 B200/B230 M1/M2 to Fabric Extenders

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
