B22/B200 M3 Connectivity (Half-Width Blades with Two Mezzanine Slots)

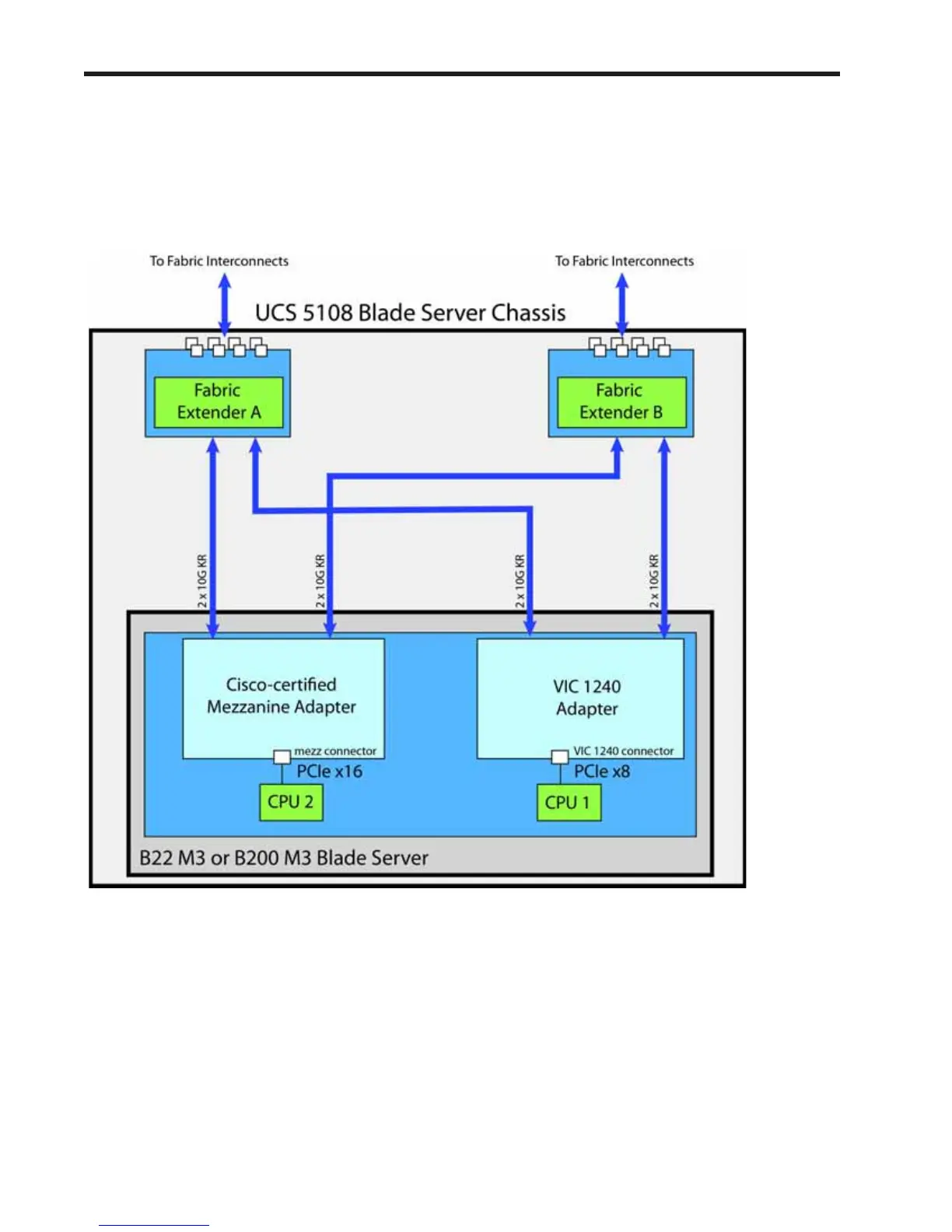

Figure 16 shows in general how the B22 M3 and B200 M3 blade servers connect to the fabric extenders in
the UCS 5108 chassis. Several cards are available for use in the two card adapter slots (see Table 19 on
page 36 and Table 20 on page 37).
Figure 16 B22 M3 or B200 M3 to Fabric Extenders

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
