Cisco UCS 5108 Blade Server Chassis
28
SUPPLEMENTAL MATERIAL
The general connectivity diagrams between the adapter cards and the different fabric extenders are shown
in
Figure 13 on page 28 through Figure 15 on page 29.

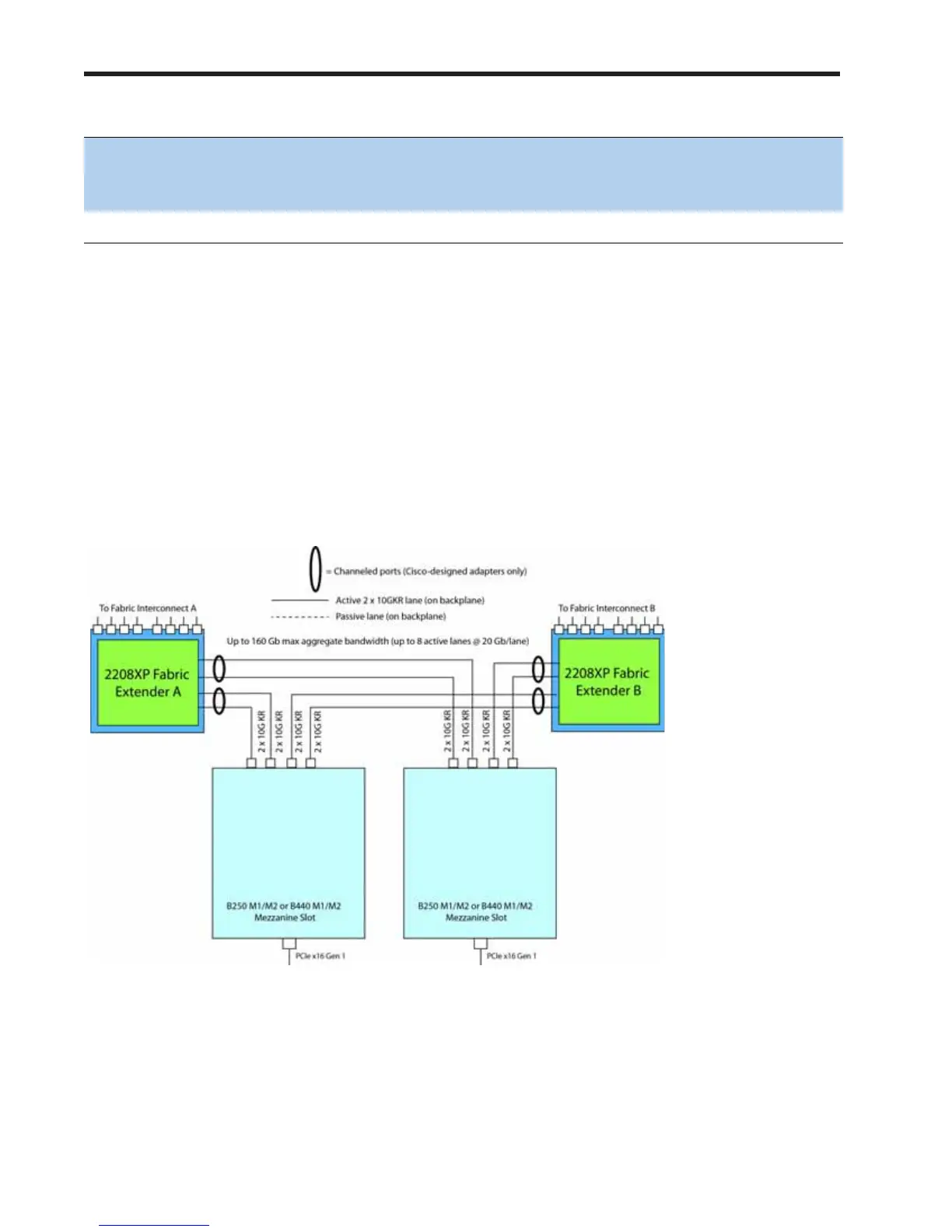

Figure 13 B250/B440 M1/M2 to 2208XP Fabric Extenders
2104XP Cisco-certified mezzanine adapter Cisco-certified mezzanine adapter 2 x 10 Gb
1. Cisco-designed adapters are capable of port channeling. A port channel bundles up to four individual interfaces
into a group to provide increased bandwidth and redundancy. Port channeling also load balances traffic across
these physical interfaces. The port channel stays operational as long as at least one physical interface within
the port channel is operational. Cisco-certified adapters suppled by third-party vendors do not support port
channeling. Port channeling is indicated with an oval drawn around several individual ports.
2. Cisco-certified mezzanine adapters are manufactured by third-party vendors and are certified by Cisco for use
in the servers. For more information about supported Cisco-certified mezzanine adapters, see
http://www.cisco.com/en/US/docs/unified_computing/ucs/hw/chassis/install/blade.html#wp1010426
3. Available only on M2 and M3 servers (not available on M1 servers)
Table 16 Adapter Card Options (continued)
Fabric
Extender
Compatibility
Adapter in Slot 0 Adapter in Slot 1
Ports
1
