Cisco UCS C240 Server Installation and Service Guide
OL-25761-01
Chapter 1 Overview
Figure 1-1 shows the front panel features of the small form-factor drives version of the server. This
version of the server can be ordered with either a 16-drive backplane or a 24-drive backplane with an
expander. When the 16-drive backplane is installed, only the first 16 drive bays are used.

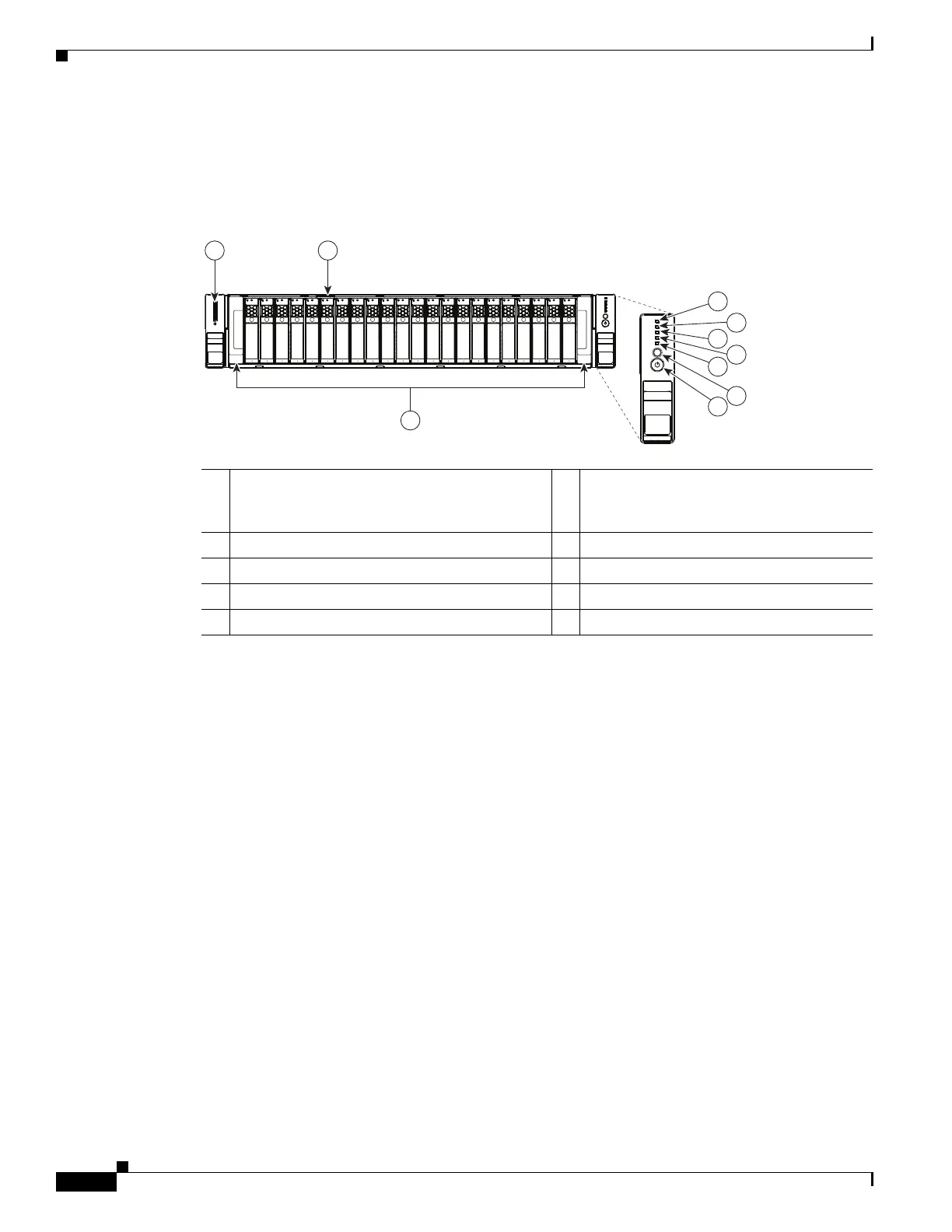

Figure 1-1 Cisco UCS C240 Server (Small Form-Factor Drives) Front Panel Features
1 KVM connector
(used with KVM cable that provides two
USB 2.0, one VGA, and one serial connector)
6 Temperature status LED
2 Pull-out asset tag 7 Fan status LED
3 Drives, hot-swappable (up to 24 2.5-inch drives) 8 System status LED
4 Network link activity LED 9 Identification button/LED
5 Power supply status LED 10 Power button/power status LED
HDD 1 HDD 2 HDD 3 HDD 4 HDD 5 HDD 6 HDD 7 HDD 8 HDD 9 HDD 10 HDD 11 HDD 12 HDD 13 HDD 14 HDD 15 HDD 16 HDD 17 HDD 18 HDD 19 HDD 20 HDD 21 HDD 22 HDD 23 HDD 24
331807
4
5
6
7
8
10
9
3
21
