Cisco UCS C240 User Manual

1-3
Cisco UCS C240 Server Installation and Service Guide
OL-25761-01
Chapter 1 Overview
Figure 1-2 shows the front panel features of the Large Form-Factor drives version of the server. This
version of the server has a 12-drive backplane with an expander.

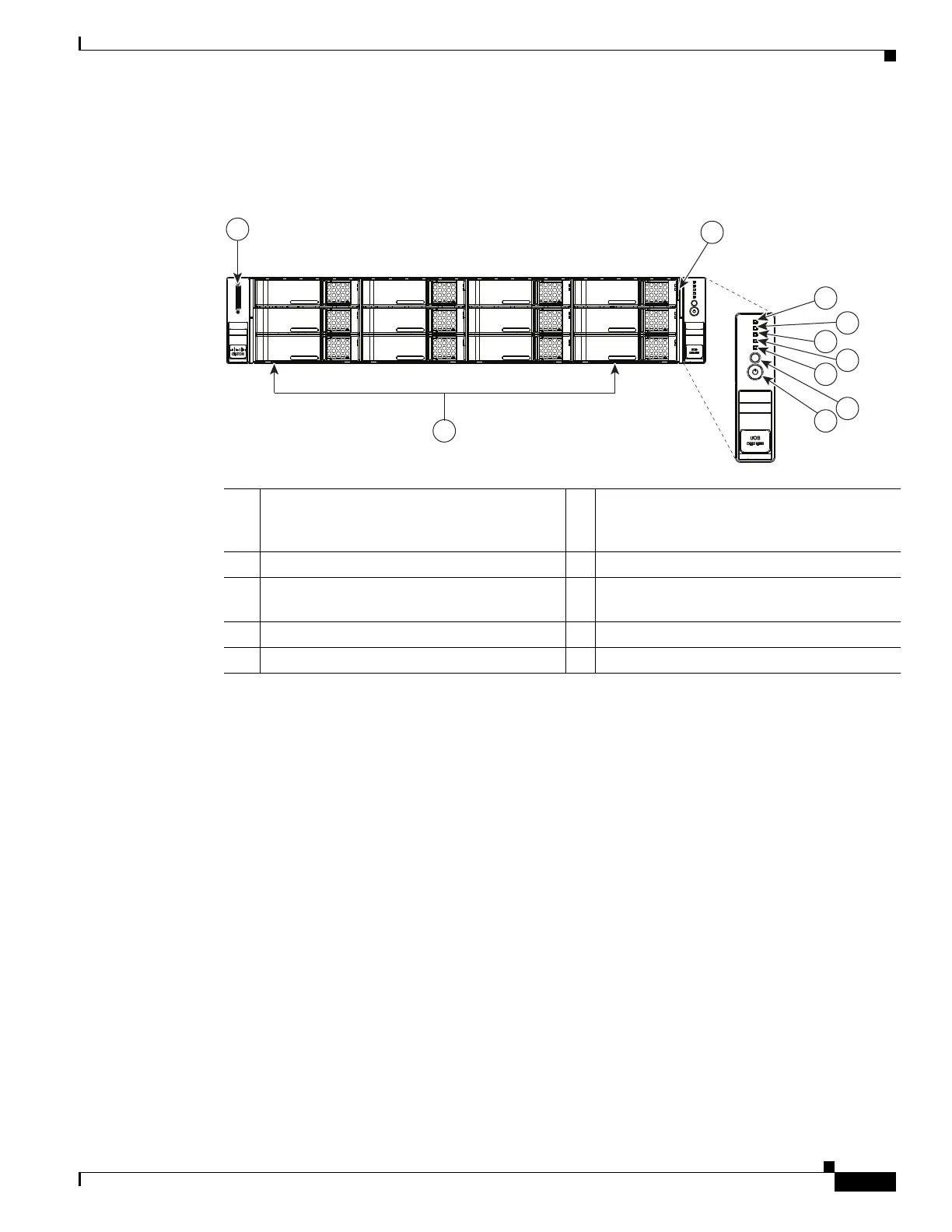

Figure 1-2 Cisco UCS C240 Server (Large Form-Factor Drives) Front Panel Features
1 KVM connector
(used with KVM cable that provides two
USB 2.0, one VGA, and one serial connector)
6 Temperature status LED
2 Pull-out asset tag 7 Fan status LED
3 Drives, hot-swappable
(up to twelve 3.5-inch drives)
8 System status LED
4 Network link activity LED 9 Identification button/LED
5 Power supply status LED 10 Power button/power status LED
HDD 1
HDD 5
HDD 9
HDD 2
HDD 6
HDD 10
HDD 3
HDD 7
HDD 11
HDD 4
HDD 8
HDD 12
331825
4
5
6
7
8
10
9
3
2
1
