Cisco UCS C240 Server Installation and Service Guide
OL-25761-01
Chapter 1 Overview

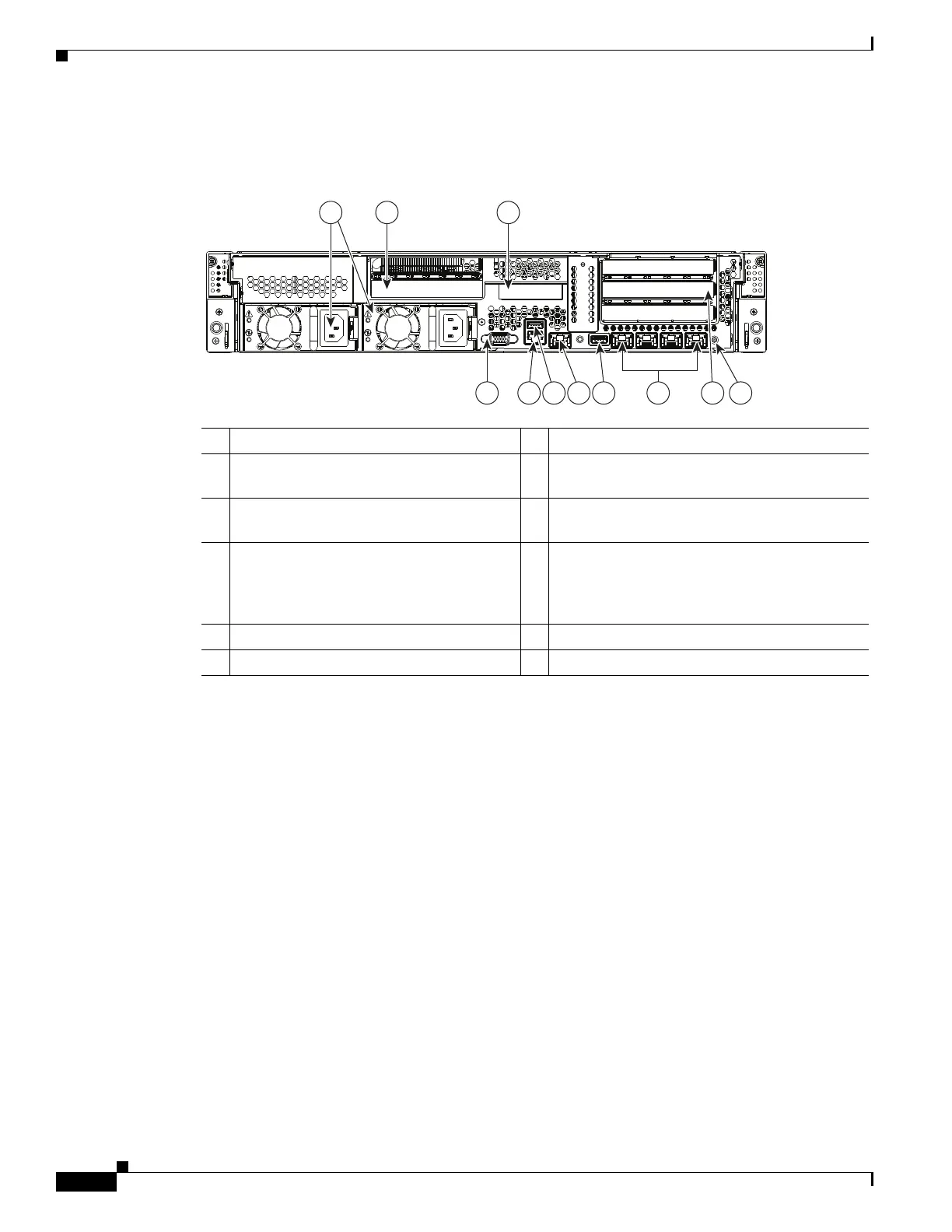

Figure 1-3 shows the rear panel features of the server (identical for all versions of the server).
Figure 1-3 Cisco UCS C240 Server Rear Panel Features
1 Power supplies (two) 7 1-Gb Ethernet dedicated management port
2 PCIe slot on riser 2:
PCIe 5—full-height, 3/4-length, x16 lane)
8 USB 2.0 port
3 PCIe slot on riser 2:
PCIe 4—half-height, 3/4-length, x8 lane)
9 Quad 1-Gb Ethernet ports
(LAN1, LAN2, LAN3, and LAN4)
4 VGA video connector 10 PCIe slots on riser 1:
PCIe 1—full-height, half-length, x8 lane
PCIe 2—full-height, half-length, x16 lane
PCIe 3—full-height, half-length, x8 lane
5 Serial port (RJ-45 connector) 11 Rear Identification button/LED
6 USB port –
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
4 98 107 1165
2 3
331826
1
