Cisco UCS C480 M5 Maintaining The Server

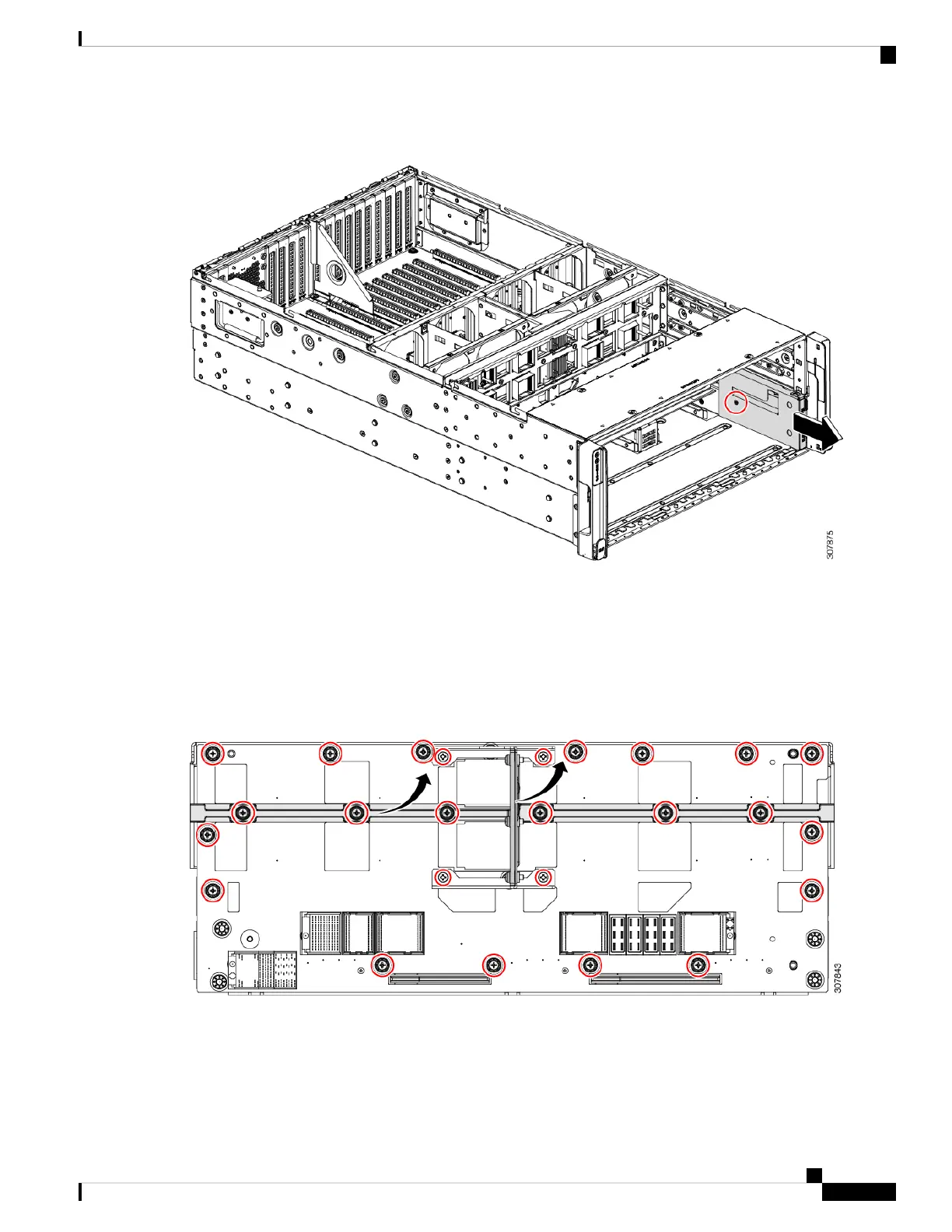

Figure 57: Location of KVM Card and Security Screw
Step 7 Remove the mounting screws and Bridge card from the Midplane assembly:
a) Using a screwdriver, rotate each of the screws counter clockwise until it disengages.
b) Grasp the Bridge card (the vertical card) and remove it by hand.
c) Grasp the Midplane stiffener and remove it by hand.
The following image shows the location of these screws and components.
Figure 58: Location of Mounting Screws, Bridge Card, and Midplane Stiffener
Step 8 Using a screwdriver, continue disassembling the Bridge card by rotating each of its screws counter clockwise until it
disengages.
The following image shows the location of the screws.
Maintaining the Server
107
Maintaining the Server
Recycling the PCB Assembly (PCBA)
