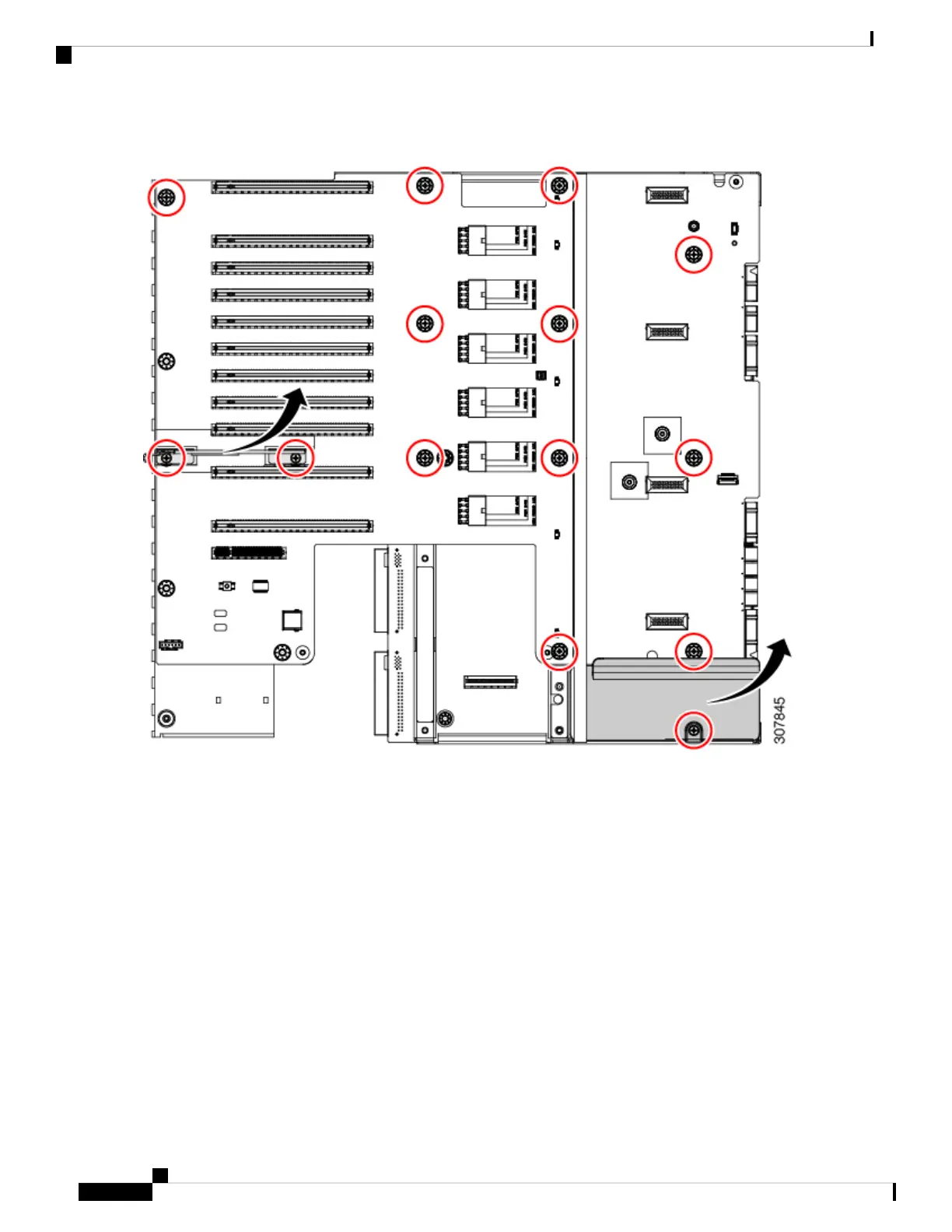

Figure 62: Location of Mounting Screws, Baffle, and PCBA Bracket (Top Down View)
Step 12 Disassemble the power distribution board.
a) Flip the PCBA over so that the component-side is facing down.
This step exposes the Power Distribution board and its mounting screws.
b) Using a screwdriver, rotate each of the screws counter clockwise until it disengages.
c) Detach the Power Distribution Board from the PCBA.
The following image shows the location of these components.
Maintaining the Server
110
Maintaining the Server
Recycling the PCB Assembly (PCBA)
