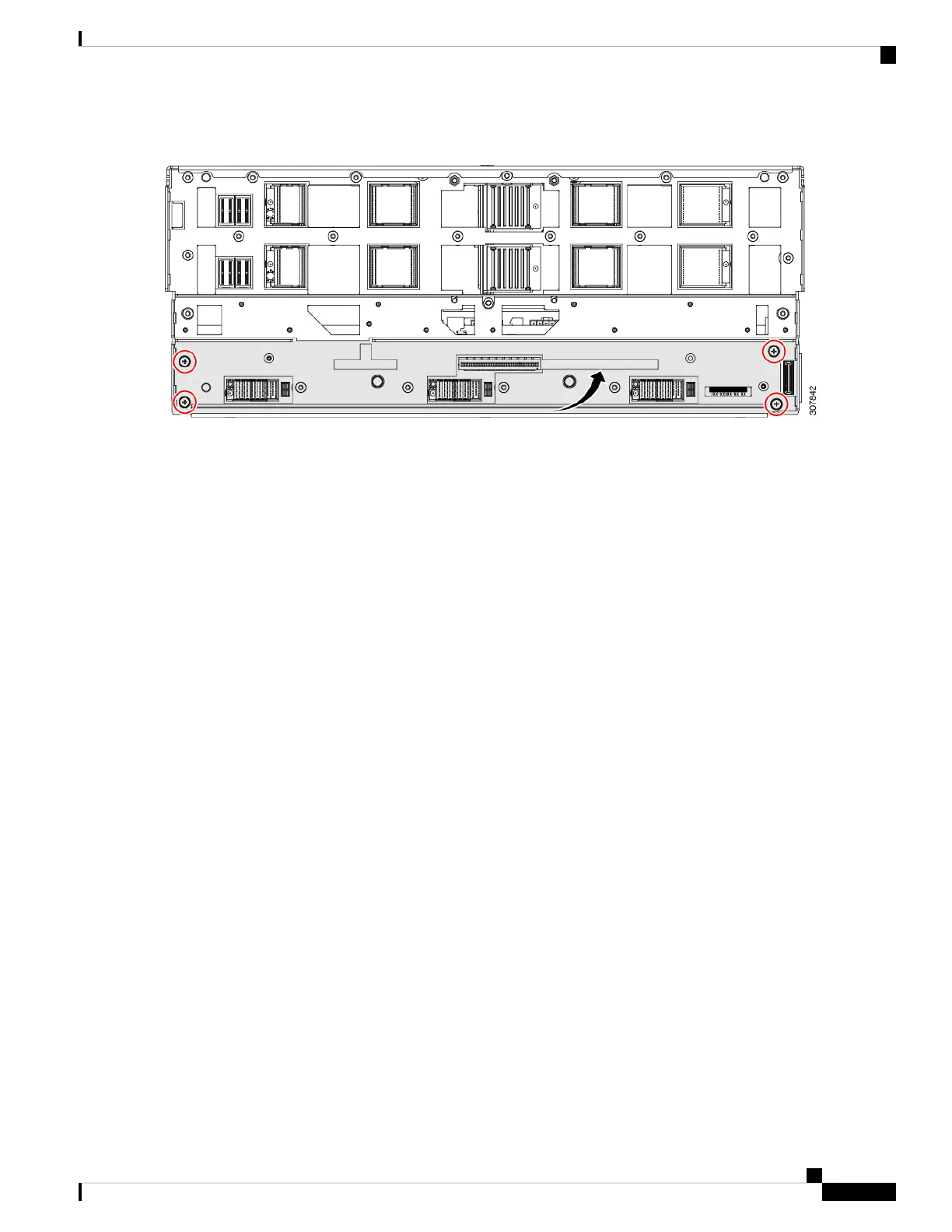

Figure 61: Location of Mounting Screws for Rear Sub Assembly
Step 11 Remove the PCBA, which includes additional components.
a) Using a screwdriver, rotate each of the screws counter clockwise until it disengages, then detach the motherboard
from the sheet metal tray.
b) Remove the vertical metal PCBA handle.
c) Remove the plastic baffle.
The following image shows these components.
Maintaining the Server
109
Maintaining the Server
Recycling the PCB Assembly (PCBA)
