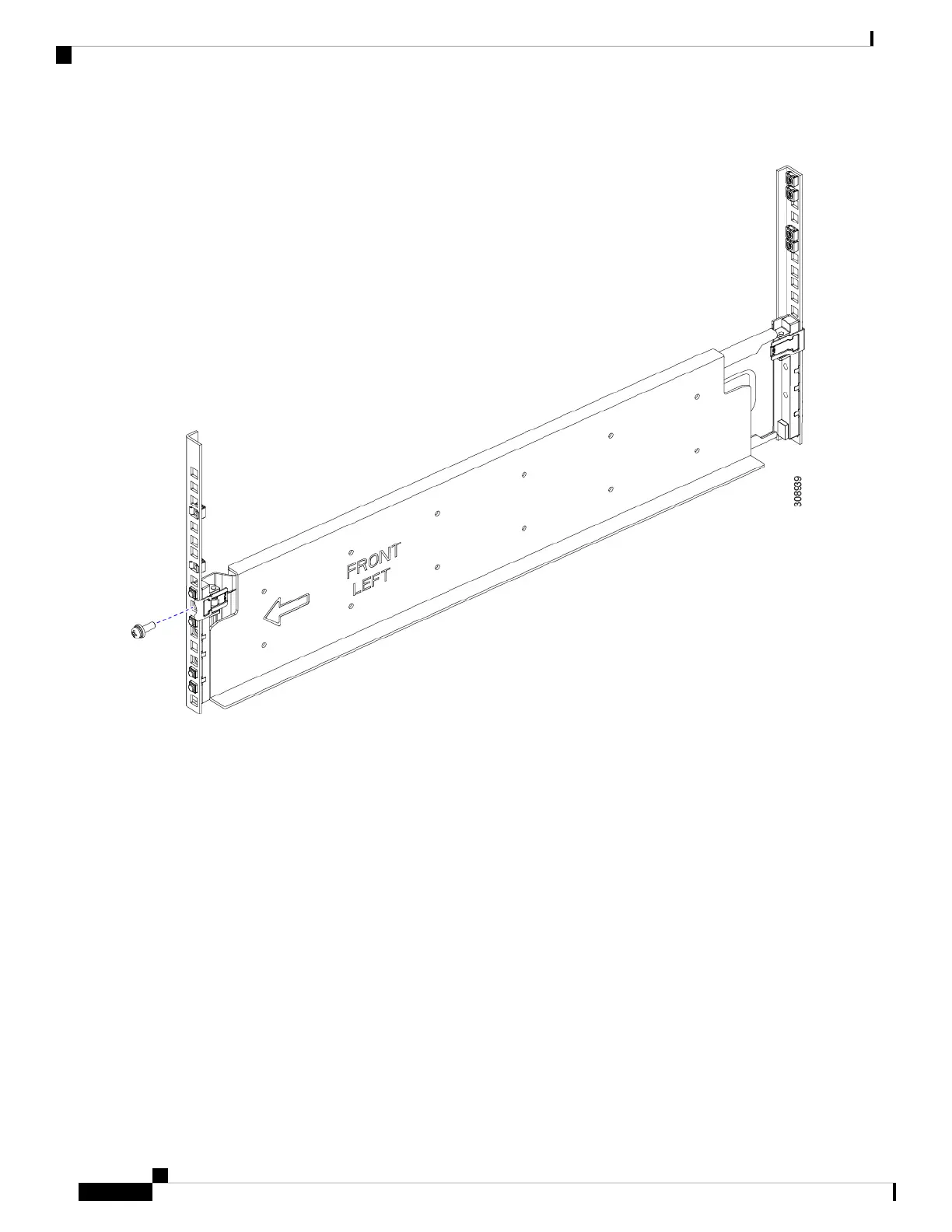

Figure 6: Secure the Rail at the Front to the Rack
Step 7 At the rear of the rack, refer to the template, then insert a screw in each rear rail to secure each rail to the rack at the
correct location.
Installation
22
Installation
Installing the Rails, Square-Hole Rack
