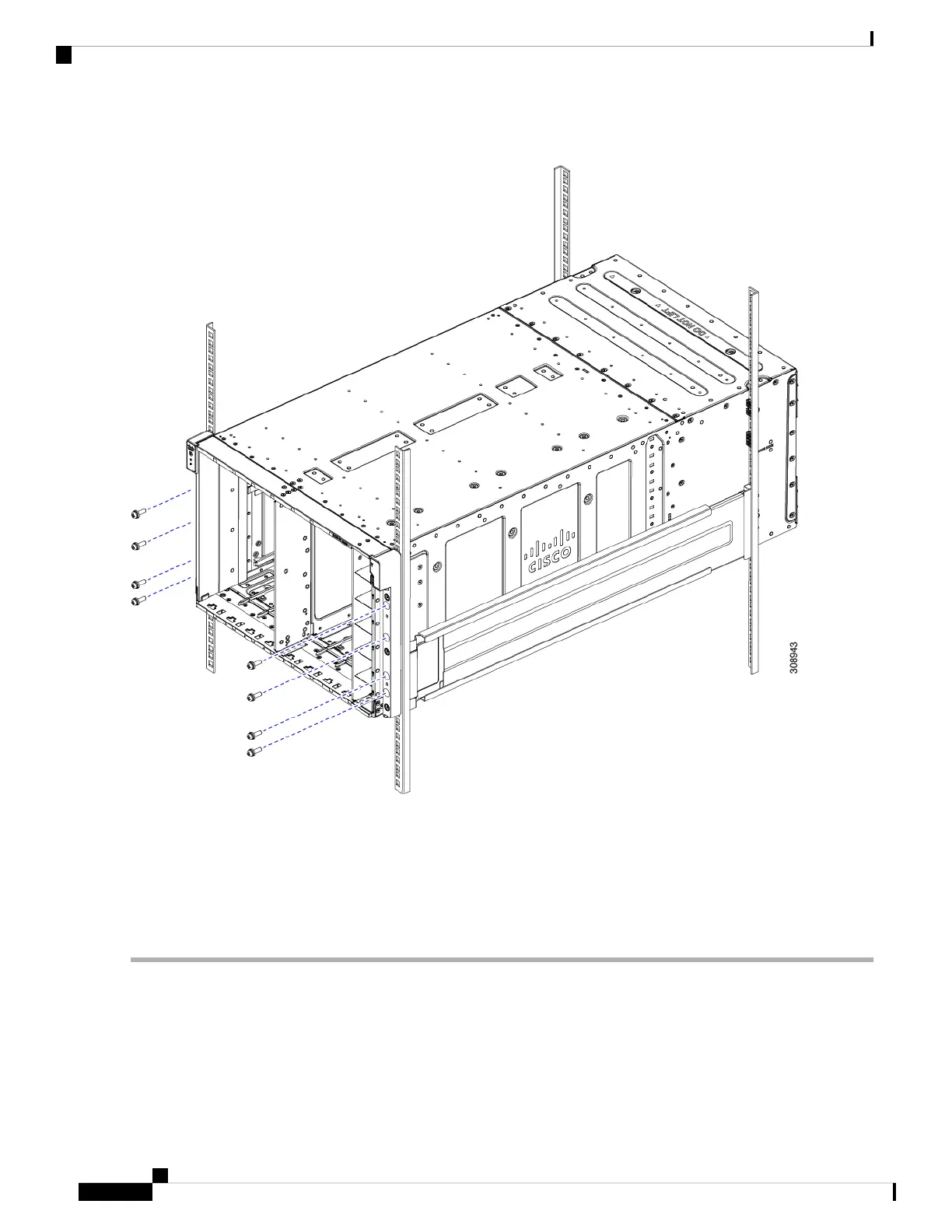

Figure 19: Securing the Front of the Chassis to the Rack
Step 5 Choose the appropriate option:
a) If your chassis will ship per-installed in a rack, attach the rear mounting brackets. If you plan to install and ship your
chassis in a shippable rack, attach the rear mounting brackets. See Installing Rear Mounting Brackets, Square-Hole
Rack, on page 40.
b) If you will be installing the chassis in a stationary rack, continue the installation procedure. See Completing Installation,
on page 44.
Installation
36
Installation
Inserting the Chassis into a Square-Hole Rack
