Cisco UCS X9508 - Page 35

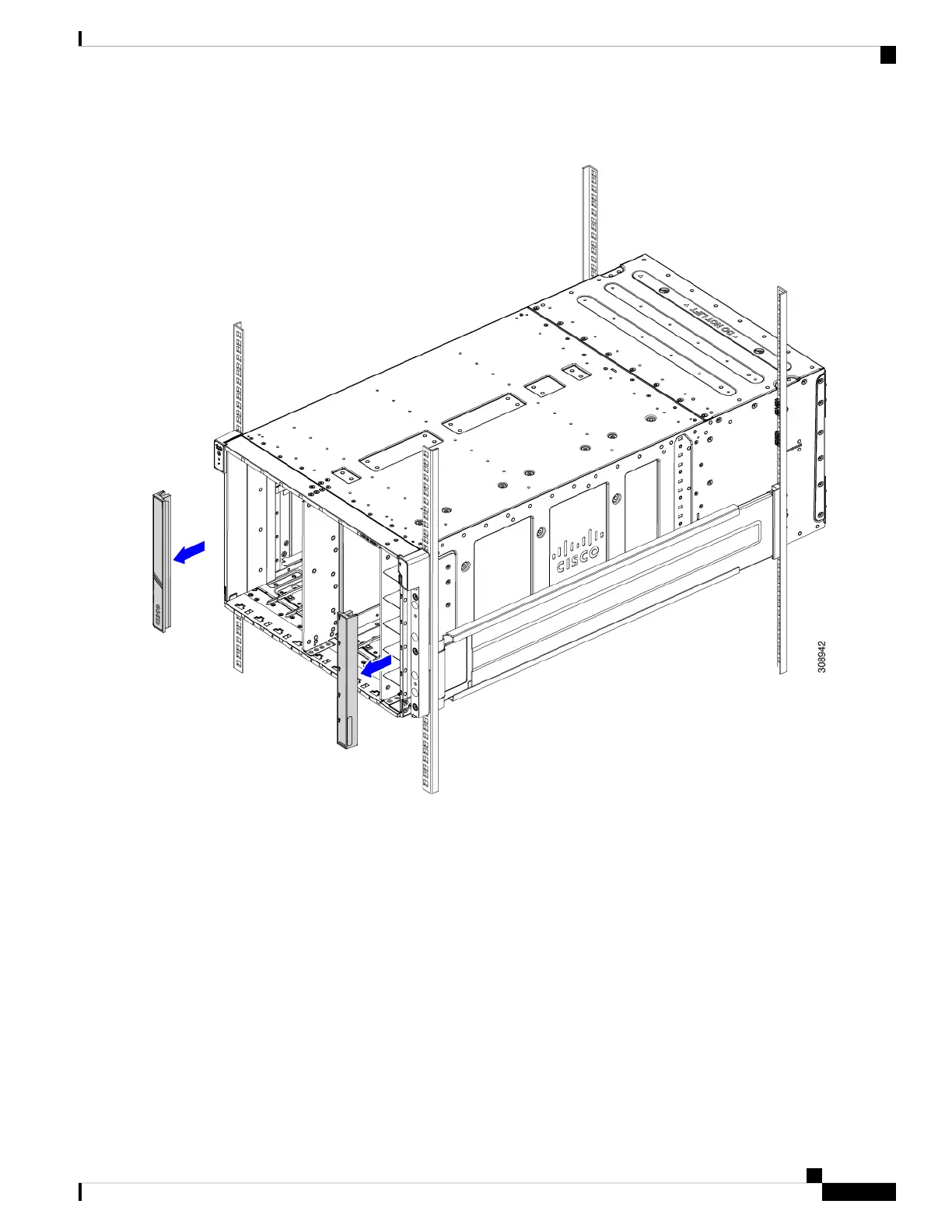

Figure 18: Detach the Chassis Side Trim Panels
Step 4 At the front of the chassis, use a #3 Phillips-head screwdriver to insert and tighten the eight M6 x 20mm screws through
the front mounting flanges.
Installation
35
Installation
Inserting the Chassis into a Square-Hole Rack
