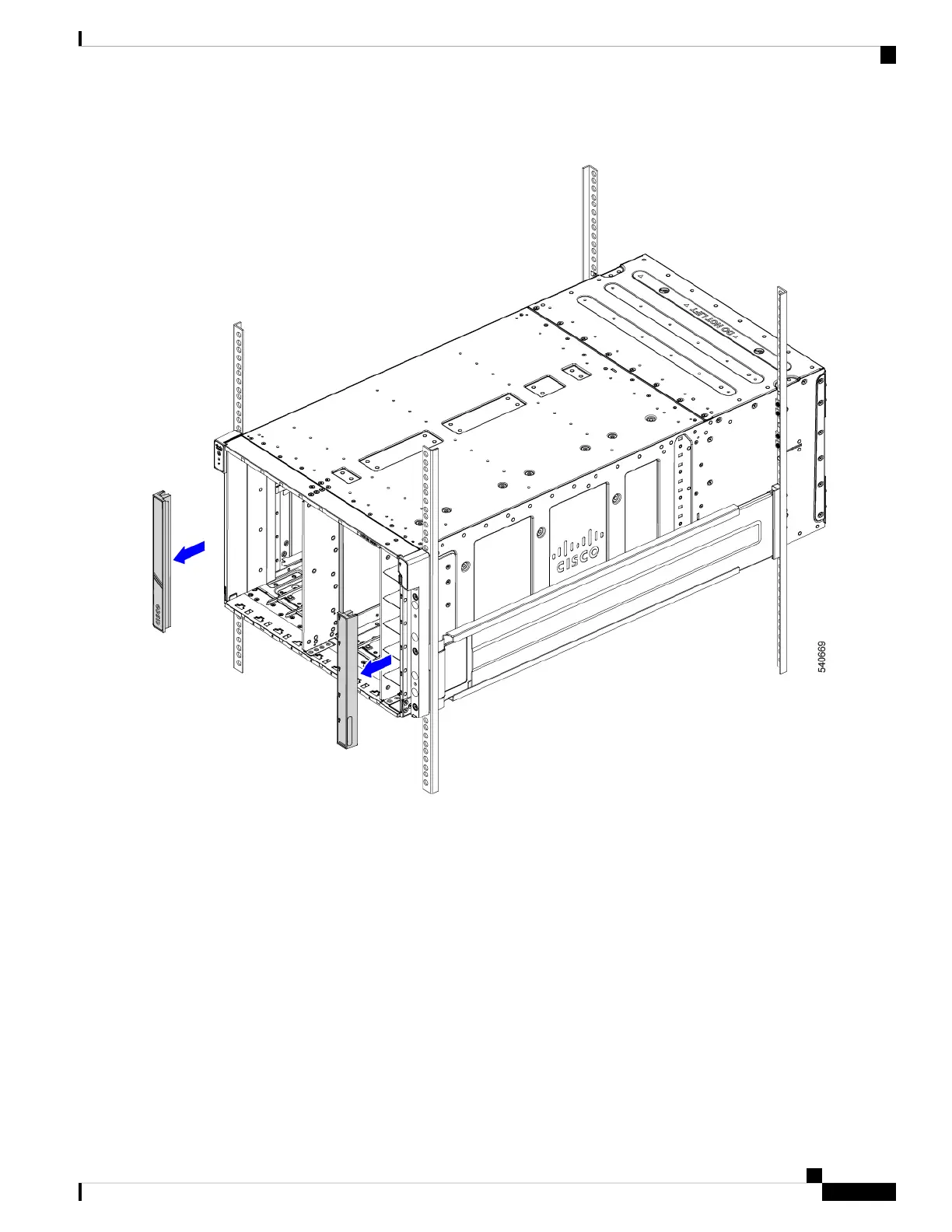

Figure 21: Detach the Chassis Side Trim Panels
Step 4 At the front of the chassis, use a #3 Phillips-head screwdriver to insert and tighten the eight M6 x 20mm screws through
the front mounting flanges.
Installation
39
Installation
Inserting the Chassis into a Round-Hole Rack
