Chapter 1 Overview of the Cisco VG202 and Cisco VG204 Voice Gateways
Cisco VG202 and Cisco VG204 Voice Gateway Deployment

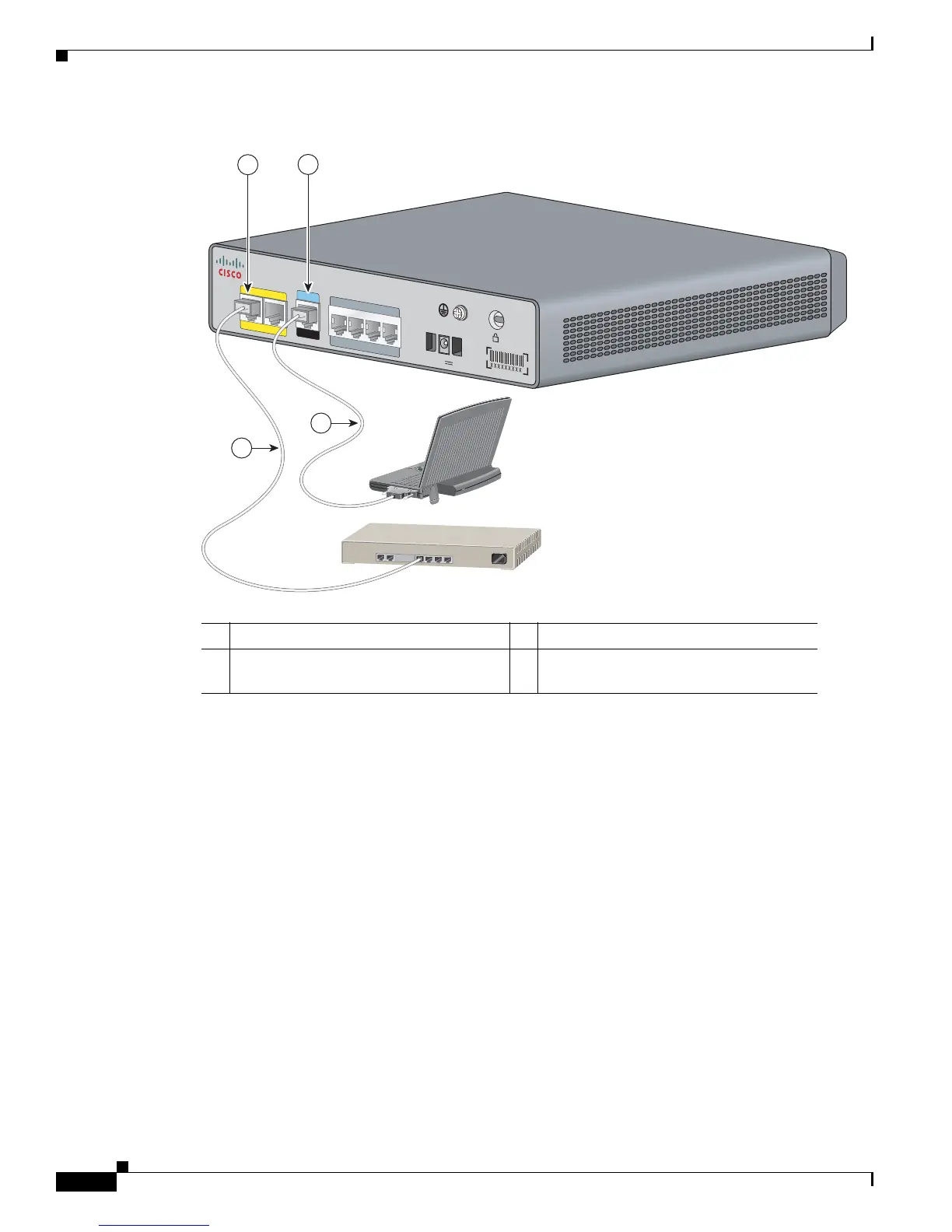

Figure 1-6 Typical Deployment of Cisco VG202 and Cisco VG204 Voice Gateways
1 Fast Ethernet port 2 Console port
3
Fast Ethernet straight-through cable
connected to an Ethernet hub
4
RJ-45-to-DB9 console cable connected to
a PC
VG204
12V
D
C
SA
C
ON
SO
L
E
AUX
Fas
tE
ther
n
et
0/
1
0/
0
FXS
0
/
1
0
/2
0
/3
0
/0
272225
3
4
2
1

Cisco VG202 Specifications

General

Product Type	Voice Gateway
Voice Ports	2 FXS ports
Network Interfaces	1 x 10/100Base-TX
Protocols Supported	SIP
Operating Temperature	32°F to 104°F (0°C to 40°C)
Relative Humidity	10 - 90% (non-condensing)
