Chapter 3 Installing Cisco VG202 and Cisco VG204 Voice Gateways
Connecting Cables
Connecting Input Power to the Voice Gateway
To connect input power to the Cisco VG202 or Cisco VG204 voice gateway, follow these steps:
Step 1 Connect the voice gateway to an AC power outlet as shown in Figure 3-6.

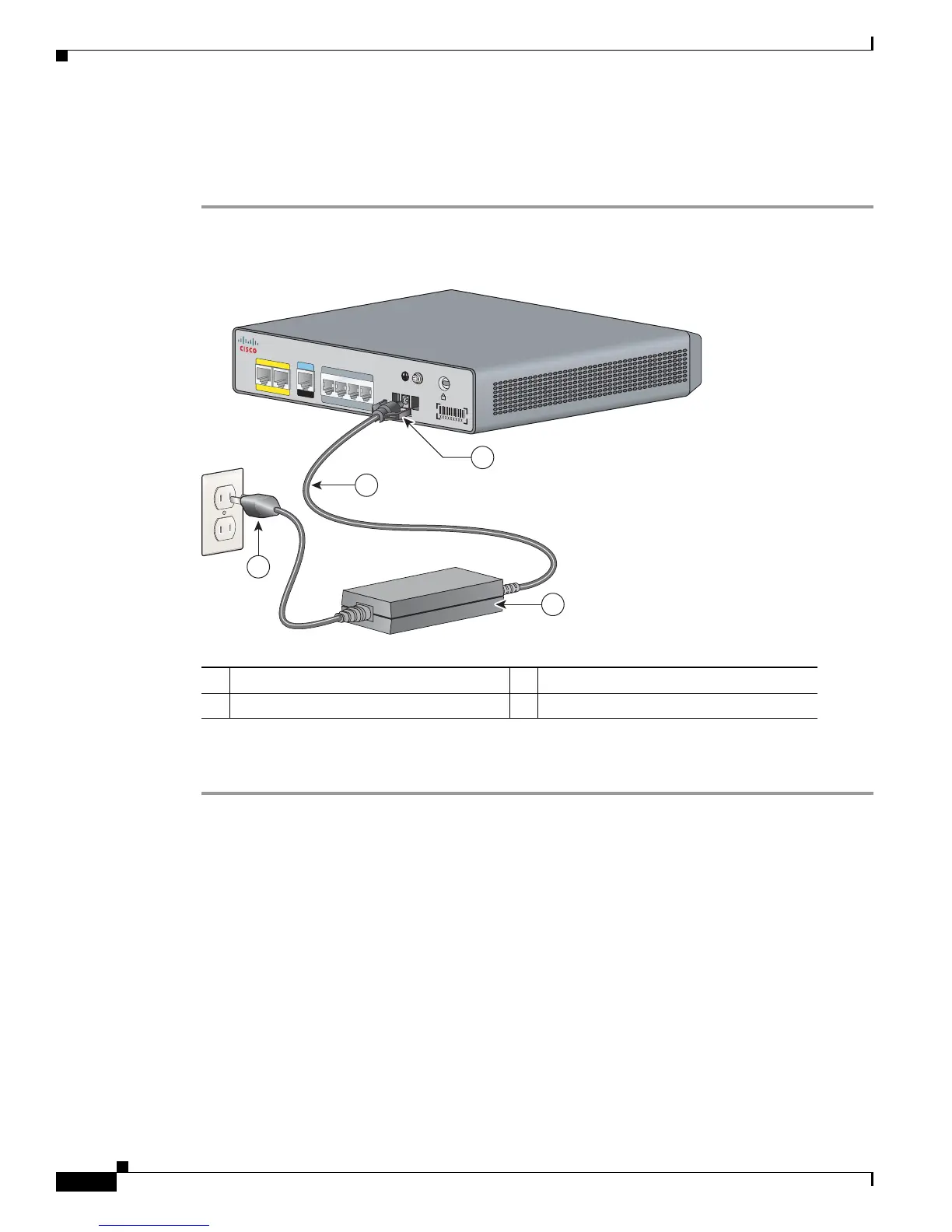

Figure 3-6 Connecting the External Power Supply to the Cisco Voice Gateway
Step 2 To secure the power cord to the voice gateway, attach the power lock clip to the power cord, and slide
the clip to the end of the DC plug. See location 1 in
Figure 3-6.
Connecting a Terminal or PC to the Console Port
Connect a terminal or PC to the Console Aux port either to configure the software by using the
command-line interface (CLI) or to troubleshoot problems with the voice gateway.
1 Power lock clip 2 Power cord
3 Power adapter 4 AC plug
VG204
12V D
C S
A
CO
N
SOL
E
AU
X
FastEthernet
0/1
0/0
FXS
0/1
0/
20/3
0/0
272269
1
2
4
3

Cisco VG202 Specifications

General

Product Type	Voice Gateway
Voice Ports	2 FXS ports
Network Interfaces	1 x 10/100Base-TX
Protocols Supported	SIP
Operating Temperature	32°F to 104°F (0°C to 40°C)
Relative Humidity	10 - 90% (non-condensing)
