Appendix A Cable Specifications and Information
Console and Auxiliary Port Cables and Pinouts
Console Port to PC

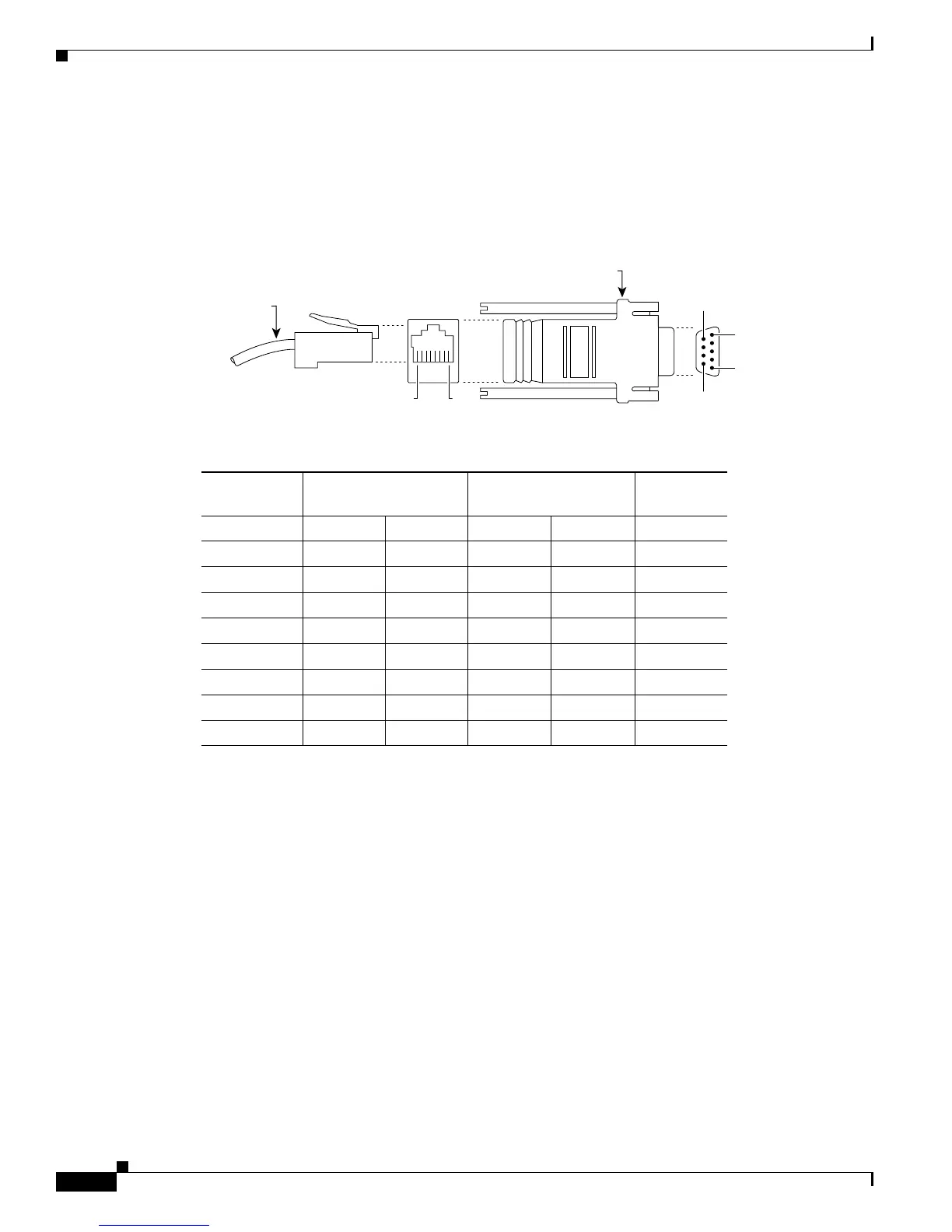

Figure A-1 shows the RJ-45-to-RJ-45 rollover cable assembly and the RJ-45-to-DB-9 female DTE
adapter (labeled TERMINAL); Table A-1 lists the pinouts.
Figure A-1 Console Port to PC—Cable and Adapter
Table A-1 Console Port to PC—Cable Pinouts (RJ-45 to DB-9)
Console Port
(DCE, RJ-45)
RJ-45-to-RJ-45
Rollover Cable
RJ-45-to-DB-9
Adapter “TERMINAL”
PC Port
(DTE, DB-9)
Signal RJ-45 Pin RJ-45 Pin RJ-45 Pin DB-9 Pin Signal
RTS 1
1
1. Pin 1 is connected to pin 8 inside the Cisco VG350 Voice Gateway.
888 CTS
DTR 2 7 7 6 DSR
TxD 3 6 6 2 RxD
GND 4 5 5 5 GND
GND 5 4 4 5 GND
RxD 6 3 3 3 TxD
DSR 7 2 2 4 DTR
CTS 8
1
117 RTS
TERMINAL
9
6
5
1
RJ-45 cable
8
1
RJ-45-to-DB-9 female adapter
H11192
