Appendix A Cable Specifications and Information
Gigabit Ethernet Port Pinouts (RJ-45)
Gigabit Ethernet Port Pinouts (RJ-45)

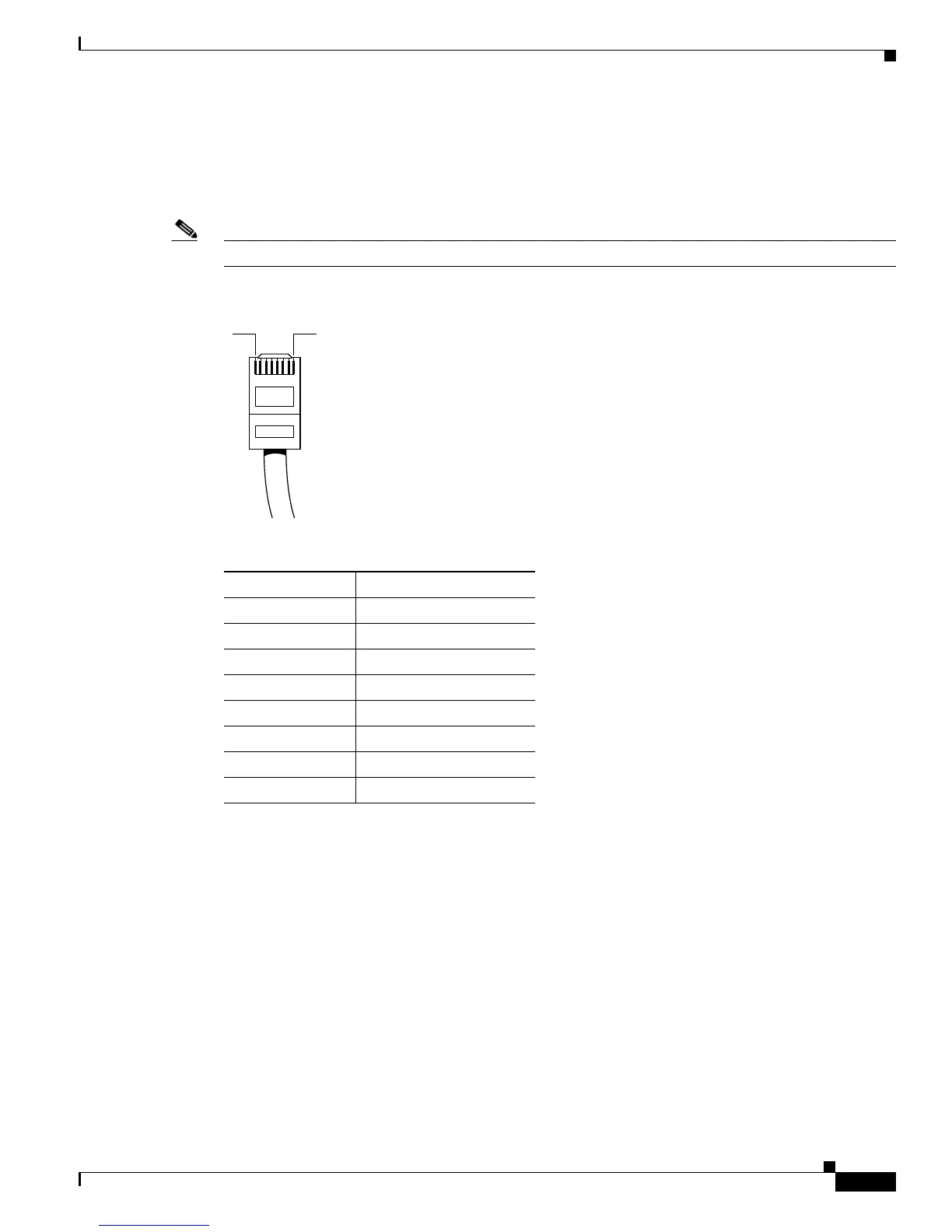

Figure A-4 shows the RJ-45 connector wiring for the Gigabit Ethernet cable; Figure A-4 lists the
pinouts.
Note Pinout shown is for category 3, 4, or 5 10/100BASE-T connection to an Gigabit Ethernet switch.
Figure A-4 RJ-45 Connector Wiring
Table A-5 Gigabit Ethernet Port Pinouts (RJ-45)
Pin
1
1. Any pin not referenced is not connected.
Signal
1TX+
2TX–
3RX+
4–
5–
6RX–
7–
8–
H11421
1
8
