3-11
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Step 7 Place the switch onto the mounting screws and slide the switch forward until it locks in place, as shown
in Figure 3-4.

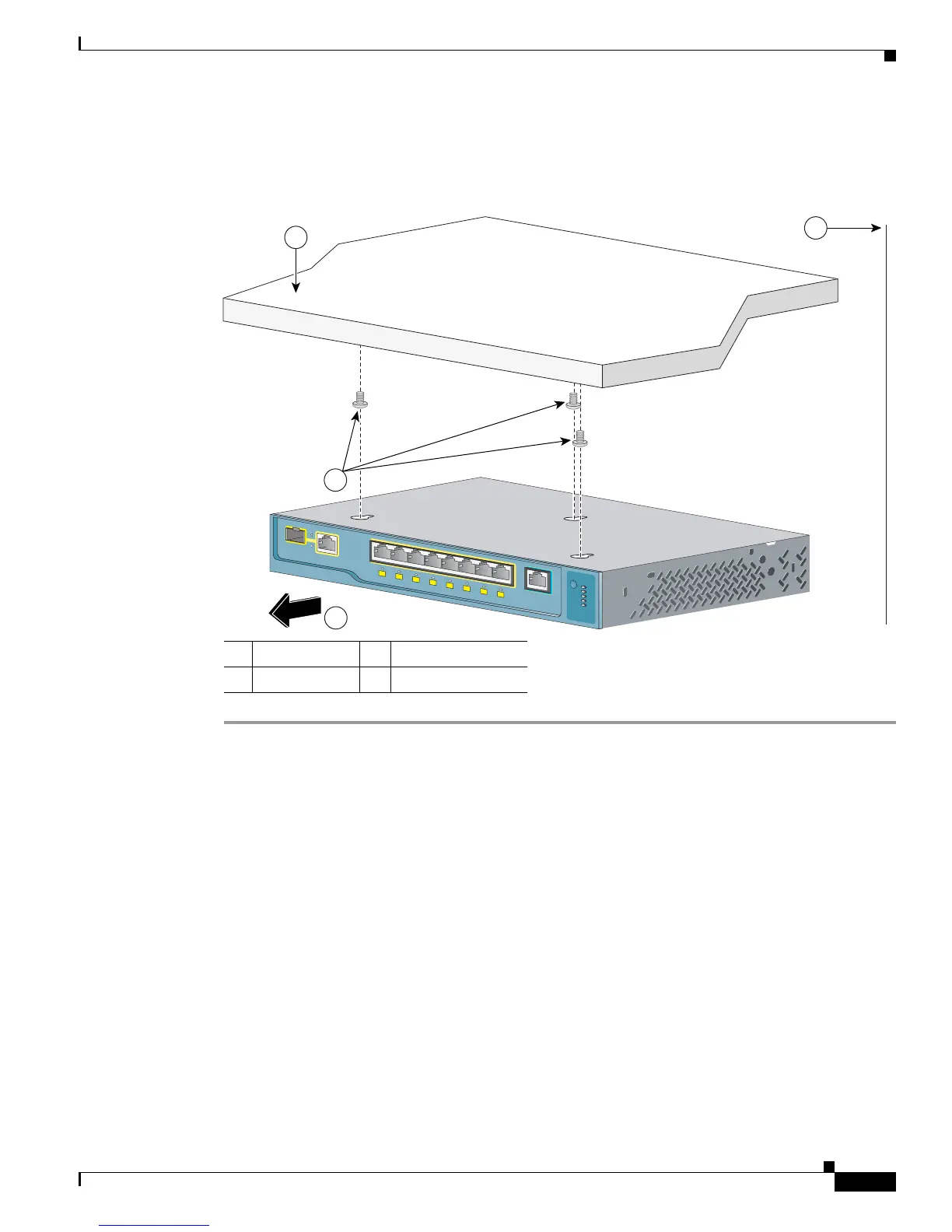

Figure 3-4 Mounting the Switch Under a Desk or Shelf
After the switch is mounted on or under the desk or shelf:
1. (Optional) Secure the AC power cord. See “Securing the AC Power Cord” section on page 3-19.
2. Power on the switch. See the “Verifying Switch Operation” section on page 3-7.
3. Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
4. Connect to the front-panel ports.
1 Desk or shelf 3 Slides on this way
2 Screws 4 Wall
1x
2x
3x
4x 5x 6x
7x
8x
1
Catalyst 3560
SERIES
PoE-8
SYST
S
TAT
D
PLX
SPD
S
YST
CONSOLE
4
3
1
2
