3-16
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
3. Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
4. Connect to the front-panel ports.
Rack-Mounting
Installing the Catalyst 3560-8PC switch or the Catalyst 3560 12-PC-S switch in a 19-inch rack requires
a bracket kit that is not included with the switch (RCKMNT-19-CMPCT=).
• Attaching Brackets to the Switch, page 3-16
• Mounting the Switch in a 19-Inch Rack, page 3-17
Attaching Brackets to the Switch
Figure 3-8 shows how to attach a 19-inch bracket to one side of the switch. Follow the same steps to
attach the second bracket to the opposite side.

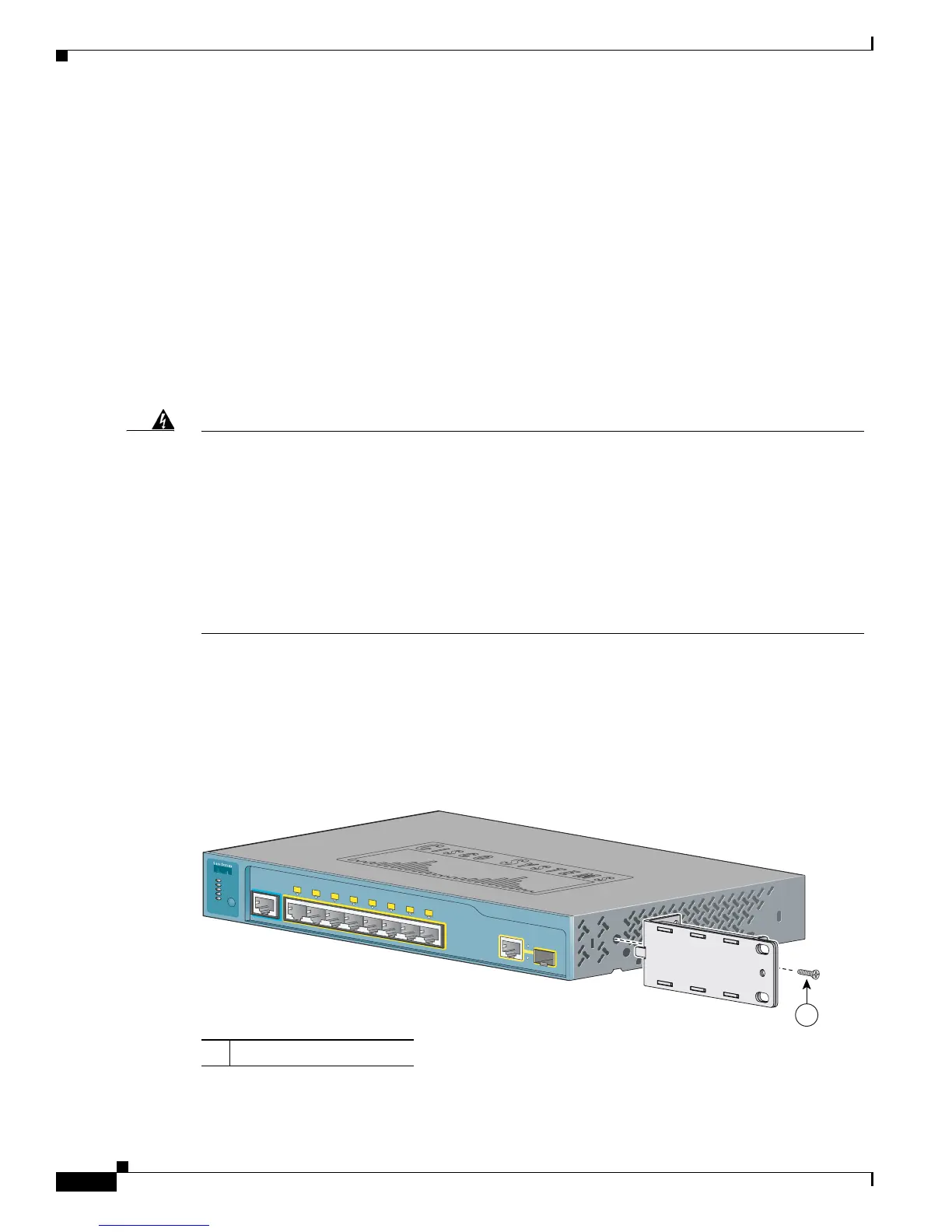

Figure 3-8 Attaching the 19-inch Brackets for Rack-Mounting
Warning
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special
precautions to ensure that the system remains stable. The following guidelines are provided to
ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest
component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in
the rack.
Statement 1006
1 Phillips flat-head screws
1
CONSOLE
1x
2x
3x
4x
5x
6x
7x
8x
Catalyst 3560
SERIES
PoE-8
PoE
SPD
DPLX
STAT
SYST
MODE
1
