Appendix B Connector and Cable Specifications
Connector Specifications

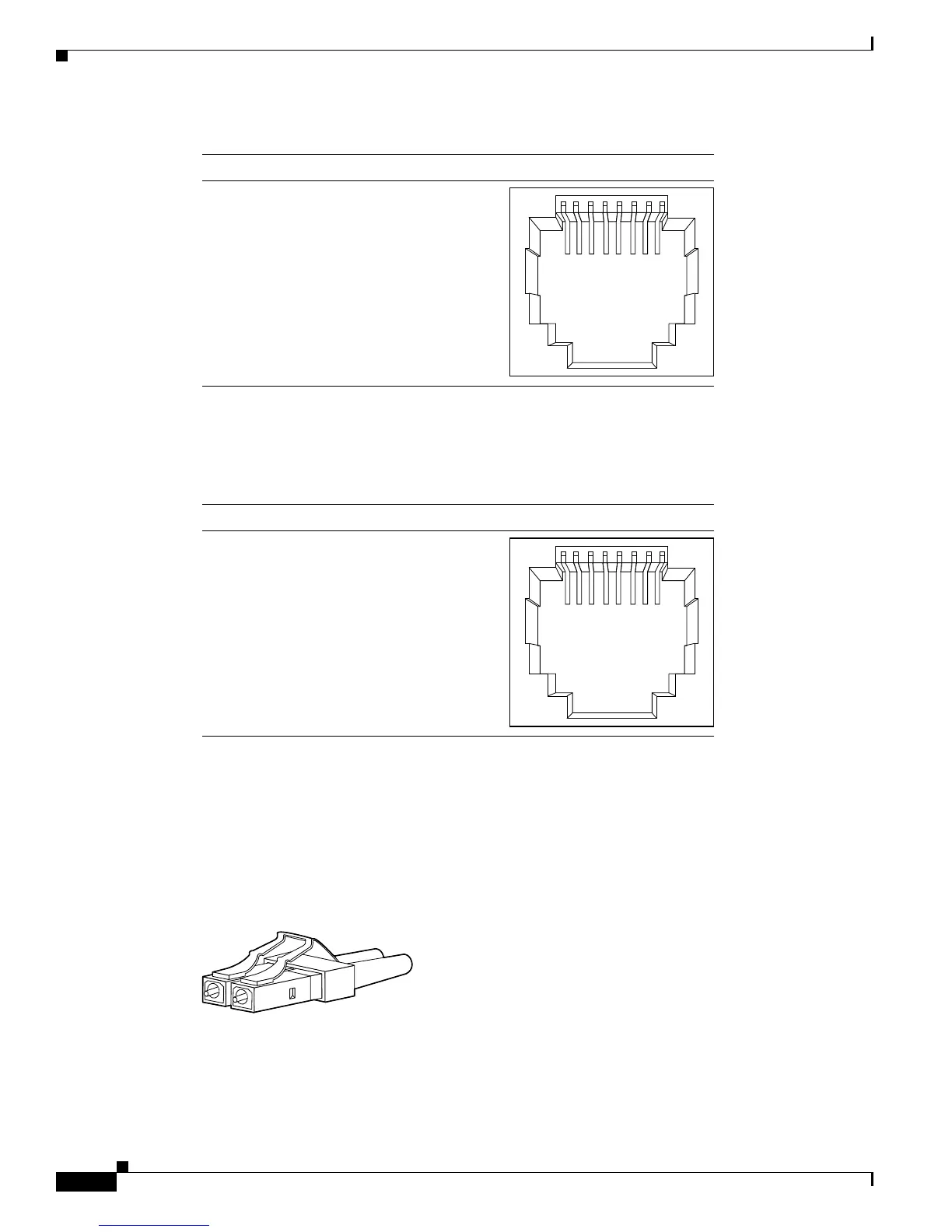

Figure B-1 10/100 Port Pinouts
Figure B-2 shows the pinout for a 10/100/1000 port.
Figure B-2 10/100/1000 Port Pinouts
SFP Module Ports
The Catalyst 3560 switch uses SFP modules for fiber-optic and copper uplinks. See the Catalyst 3560
release notes for a list of supported SFP modules.
Figure B-3 Fiber-Optic SFP Module LC Connector
H5318
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
58476

Cisco WS-C3560-48PS-S Specifications

General

Brand	Cisco
Model	WS-C3560-48PS-S
Category	Switch
Language	English
