2-8
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 2 Switch Installation (24- and 48-Port Switches)
Installing the Switch
Removing Screws from the Switch
Before you install the switch in a rack, remove the switch chassis screws (see Figure 2-1.)

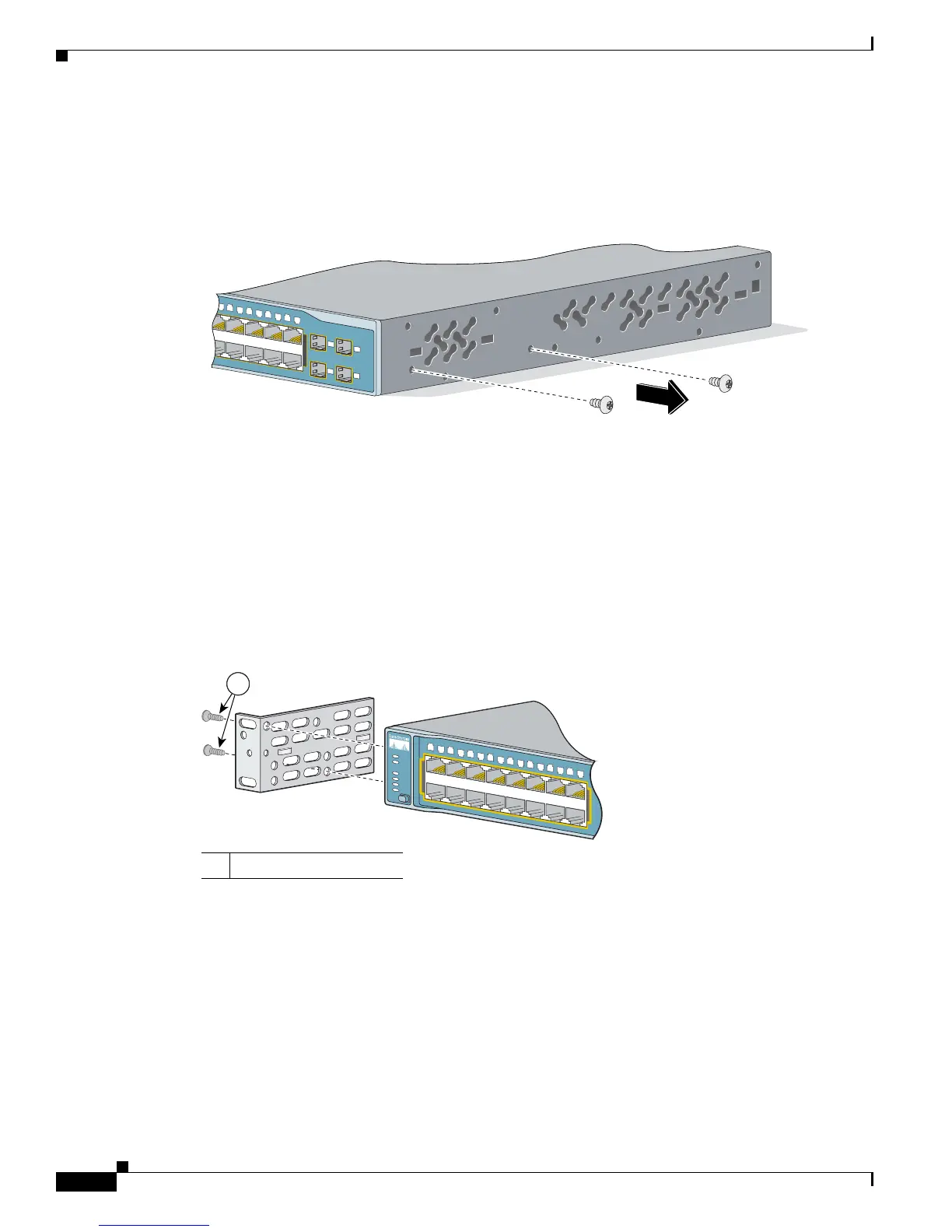

Figure 2-1 Removing Screws from the Catalyst 3560 Switch
Attaching Brackets to the Catalyst 3560 Switch
The bracket orientation and the brackets that you use depend on whether you are attaching the brackets
for a 19-inch or a 24-inch rack.
• For 19-inch racks, use bracket part number 700-8209-01
• For 24-inch racks, use bracket part number 700-13248-01.
Figure 2-2 through Figure 2-7 show how to attach each type bracket to one side of the switch. Follow
the same steps to attach the second bracket to the opposite side.
Figure 2-2 Attaching Brackets for 19-Inch Racks to a Catalyst 3560 Switch, Front Panel Forward
40
41
42
43
44
45
46
47
48
47X
48X
97916
Catalyst 3560
S
ER
IE
S
PoE-48
1
2
3
4
1 Phillips flat-head screws
1
SYST
RPS
STAT
DUPLX
SPEED
PoE
MODE
1
2
5
6
7
8
9
10
11
12
13
14
15
16
3
4
1X
2X
15X
16X
97917
