3-14
Catalyst 3560 Switch Hardware Installation Guide
OL-6337-07
Chapter 3 Switch Installation (8- and 12-Port Switches)
Installing the Switch
Step 8 Place the switch onto the mounting screws and slide it down until it locks in place, as shown
in Figure 3-6.

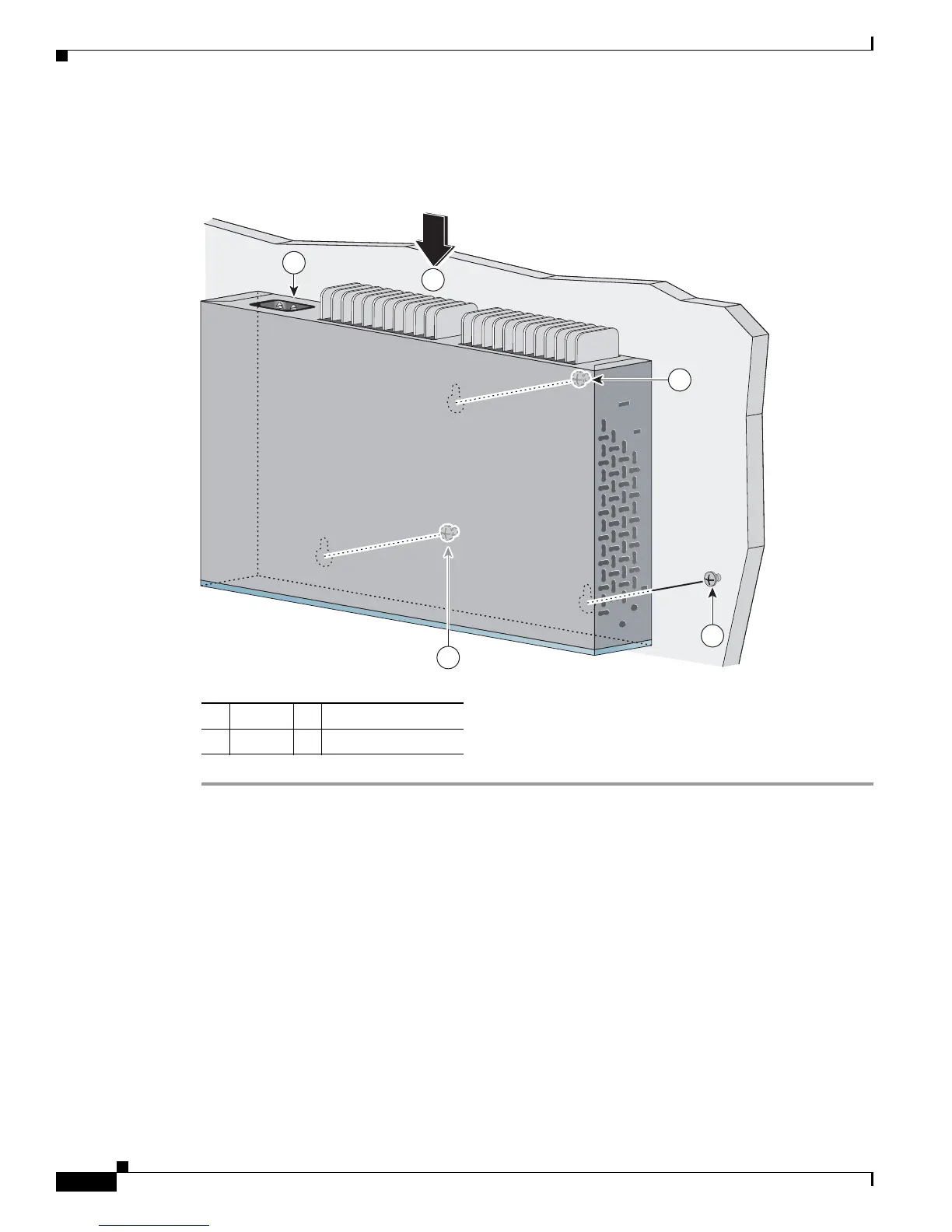

Figure 3-6 Installing the Switch On a Wall
After the switch is mounted on the wall:
1. (Optional) Secure the AC power cord. See “Securing the AC Power Cord” section on page 3-19.
2. Power on the switch. See the “Verifying Switch Operation” section on page 3-7.
3. Connect to a 10/100 or 10/100/1000 port, and run Express Setup. See the Catalyst 3560 Switch
Getting Started Guide for instructions. To use the CLI setup program, see Appendix D,
“Configuring the Switch with the CLI-Based Setup Program.”
4. Connect to the front-panel ports.
1 Switch 3 Slides down
2 Screw
