Chapter 2 Printer Operation
Mode Settings
When you are changing a menu value, pressing the “PAUSE” key
(YES) causes the printer to save the currently selected parameter.
The CONDITION LED ashes briey. Do not turn o the power to the
printer at this time as this may cause a malfunction.
If the power is accidentally turned o, rst reset the printer to
factory defaults.
Menu Setup Mode
If the printer power is turn on while the MODE/REPEAT key is pressed, the
printer enters menu setup mode. In this mode, the printer’s conguration
can be changed using the VuePrint Menu System. During menu setting
mode, the PRINT LED and CONDITION LED are on. Media must be
installed in the printer to use the VuePrint menu system.
YES/Select/Save
Next digit
Exit to previous menu
NO/Next Item/Change Value
Light up

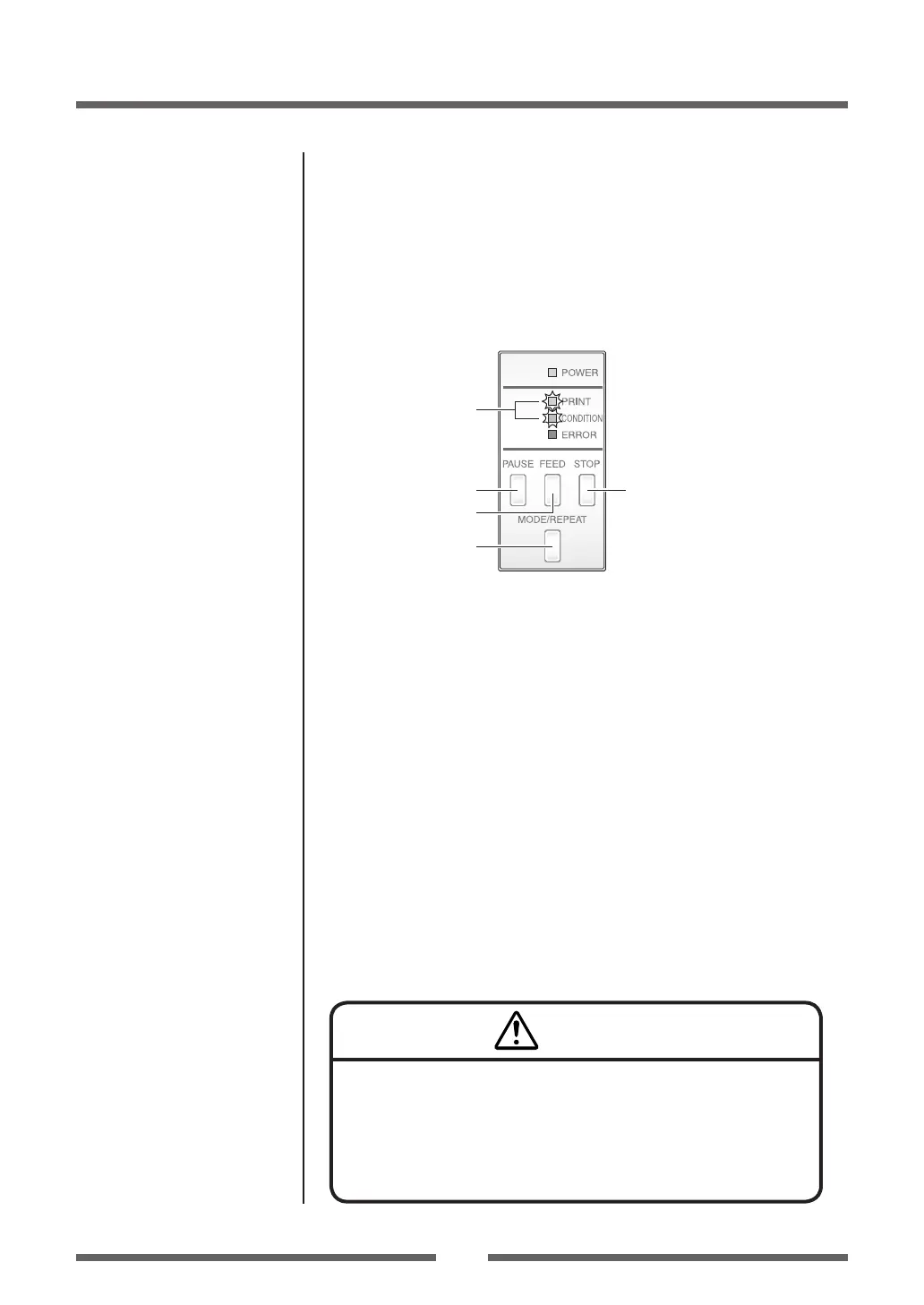

Functions of the keys
After each menu item is printed, the printer will also print the function
of each of the buttons at that time. They vary slightly depending on the
menu selected but generally t the following guidelines:
PAUSE key (YES/Select/Save):
It is pushed to either select the current menu option or to save the
new setting after which it advances to the next menu.
STOP key (NO/Next Item/Change Value):
Whilst changing a menu value (such as head temperature), pressing
this key displays the next menu value available but does not save the
setting. In the “main menu“, pressing this key moves to the next menu
available.
FEED key (Next digit):
With some menu options such as head temperature, there is more
than one “digit” than can be changed.
This key moves the cursor to the next digit.
MODE/REPEAT key (Exit to previous menu):
Exits the current menu or the VuePrint menu system.
Caution

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
