Citizen CL-S521 User Manual

39
Chapter 3 Printer Adjustments
Chapter 3 Printer Adjustments
Installing the Media (p.24)
Sensor Adjustments
The sensing level of both the transparent (see thru) and reective sensors
is adjusted separately and independently. Firstly, the sensor type must
be selected either using the VuePrint menu system or the Sensor Method
Selection shown below. Then the adjustment and calibration of the sensor
can be made.
Entering Sensor Adjustment Mode

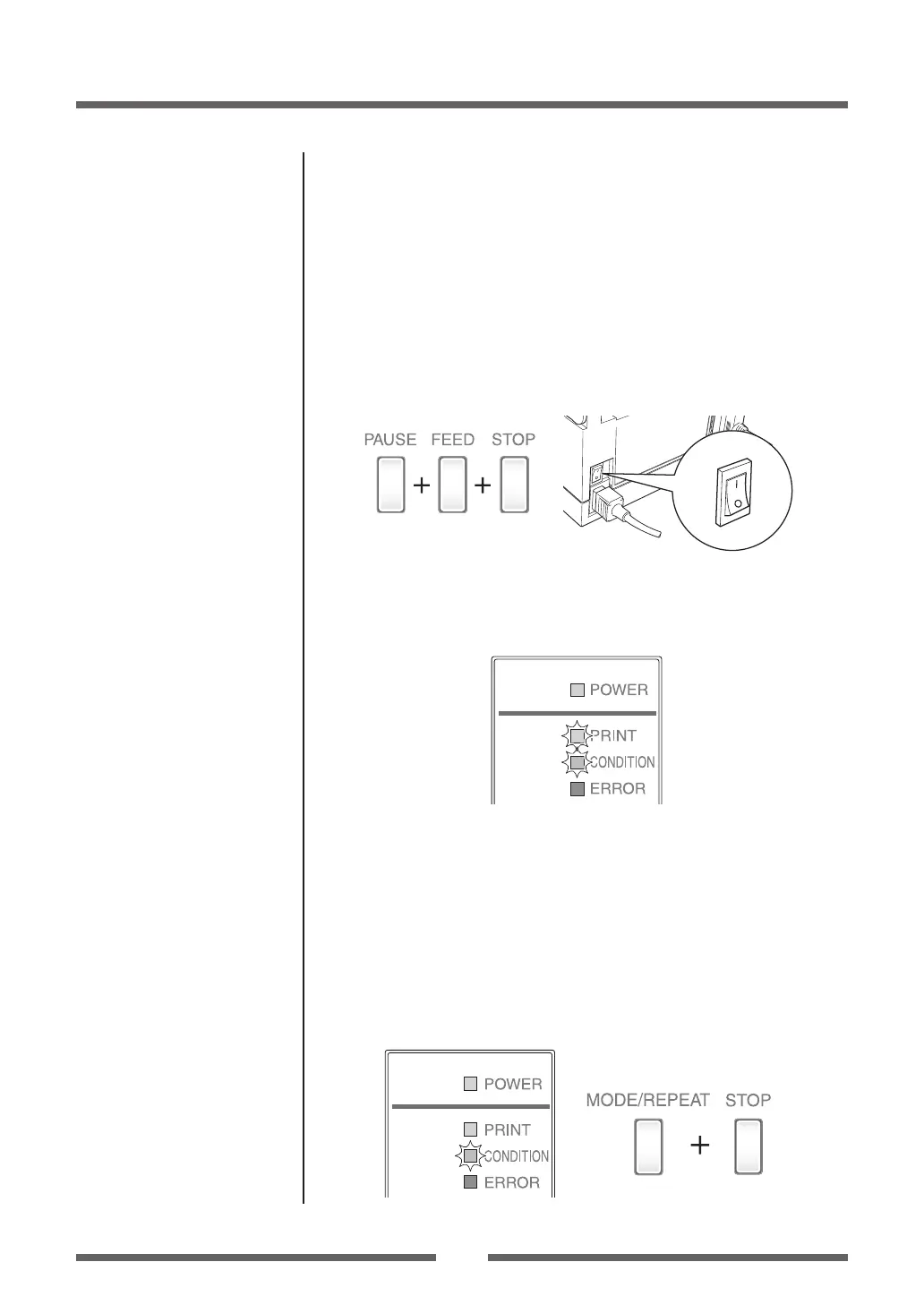

1. Turn on the power while pushing the PAUSE key, FEED key,
and STOP key simultaneously.
Power Switch
2. After the PRINT LED and CONDITION LED light up, release the
keys to change the printer to sensor adjustment setting mode.
Sensor Selection Method (Transparent

Reective)
To switch from transparent to reective sensor, ensure the CONDITION
LED is lit then hold down the MODE/REPEAT key and then press the STOP
key. Each time you press the STOP key, you switch to back and forth
between the two sensor types.
If the transparent sensor is selected, the PRINT LED lights up and the
buzzer sounds once. If the reective sensor is selected, the PRINT LED
ashes slowly and the buzzer sounds twice.

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
