Citizen CL-S521 User Manual

24
Chapter 2 Printer Operation
Setting the Media

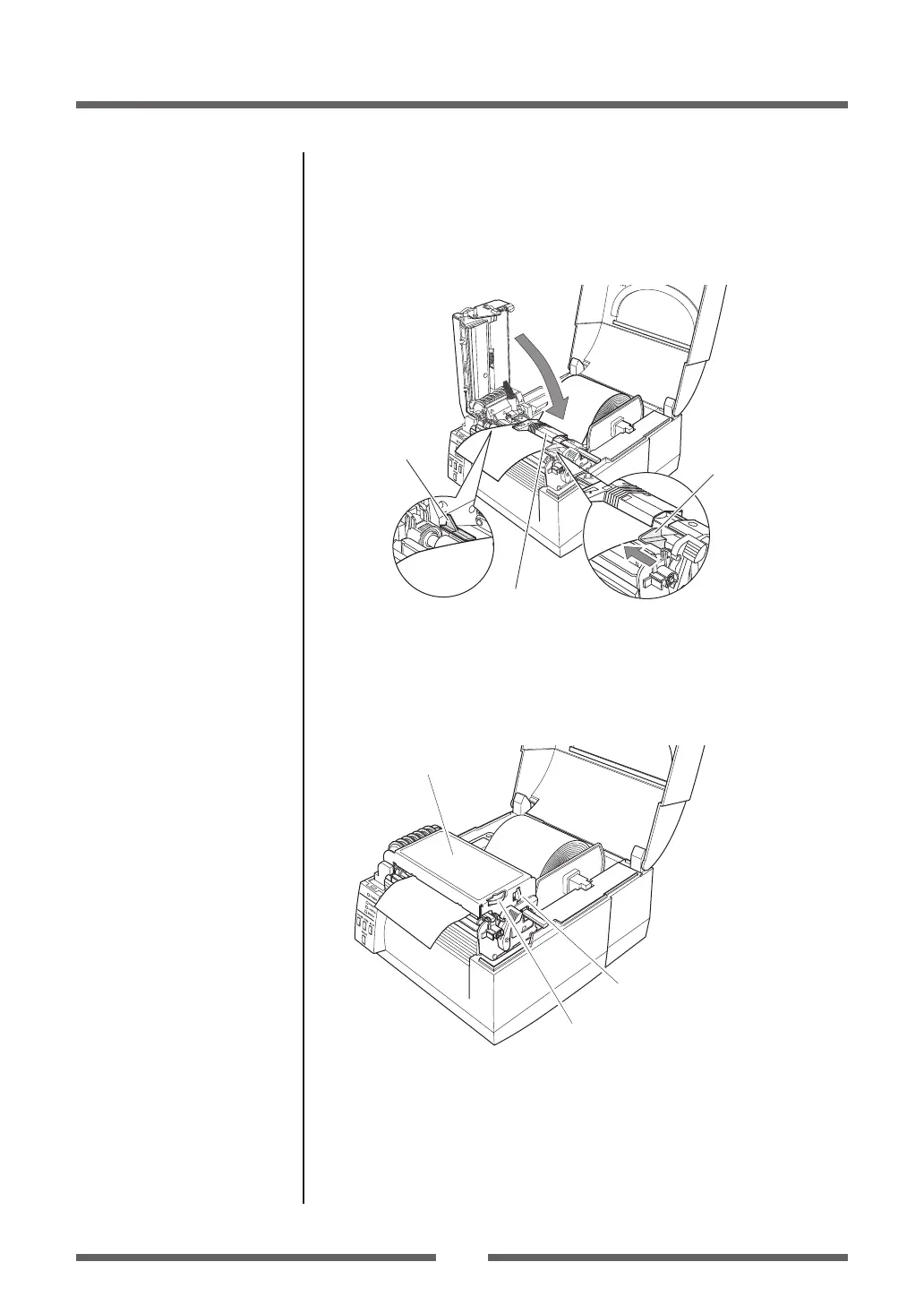

7. Align the media with the left xed media guide, align the
right movable media guide with the media width, and lower
the sensor arm.
Fixed media
guide
Sensor arm
Movable media
guide
8. Lower and lock the head unit. Align it with the width of
the media that has been set, then set the media width and
media thickness adjustment dials. See “Chapter 3 Printer
Adjustments”.
Media width adjustment
Media thickness adjustment
Head unit
9. With the power switched on, push the FEED key to feed the
media.
It will halt at the next print start position.
Media Thickness Adjustment
(p.42)
Media Width Adjustment (p.43)

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
