Citizen CL-S521 User Manual

23
Chapter 2 Printer Operation
Setting the Media

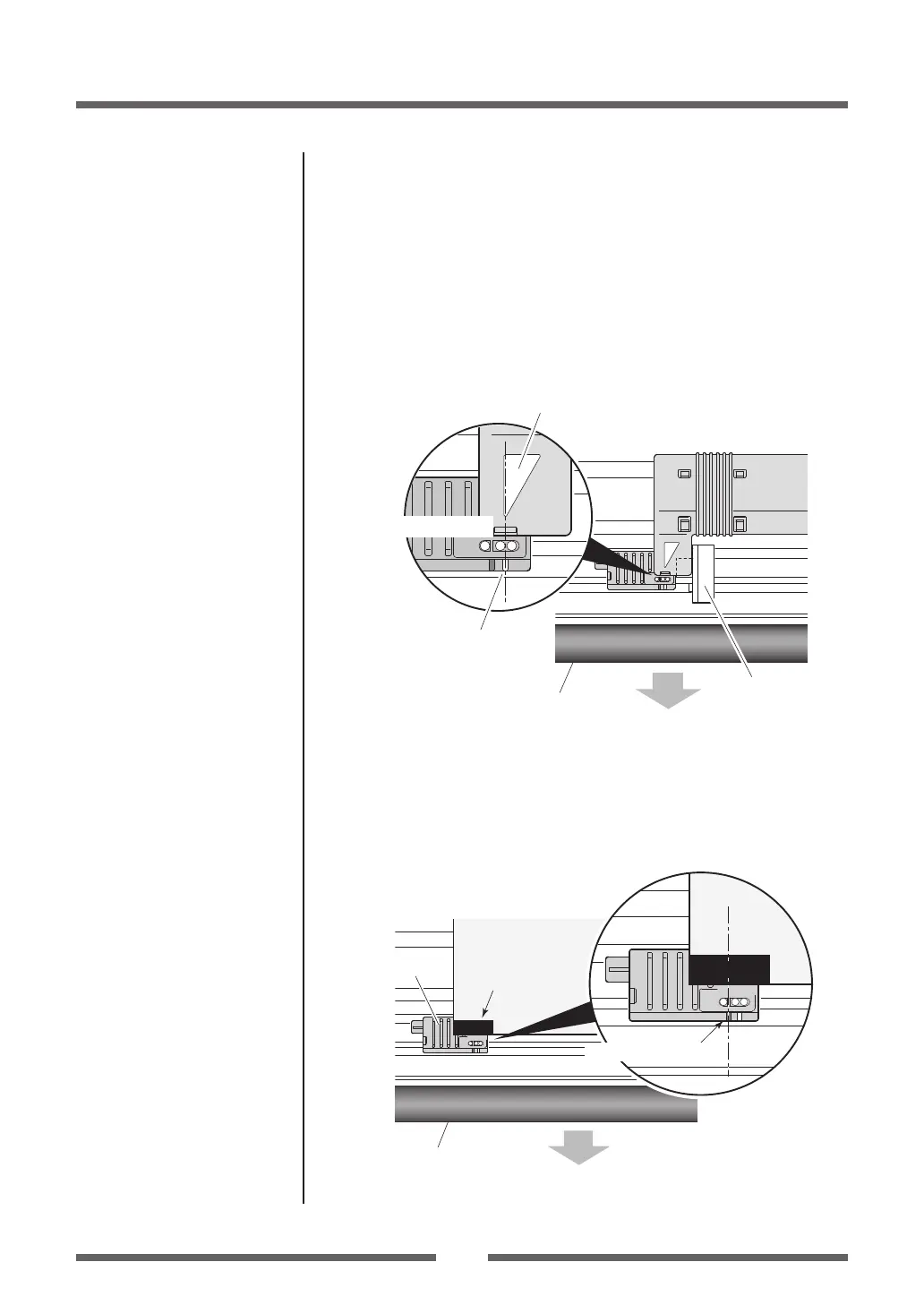

6. Setting sensor positions.
When using a transparent sensor
Move the bottom sensor close to the center of the width of the media,
then align the upper sensor marker and the bottom sensor marker
(white) using the movable media guide.
When using media that is 4 inches wide, position the upper sensor
and the bottom sensor all the way to the right (large blue-head open
lever side).
Movable
media guide
Upper sensor
Bottom sensor
Transparent
sensor marker
Upper sensor marker
Front
Aligned with the marker
Platen
When using a reective sensor
Adjust the position of the sensor so that the reective sensor marker
of the bottom sensor is at the center of the black mark of the media
as shown below.
Front
Black mark
Media
Bottom sensor
Reective sensor marker
Black mark
Platen
Adjusting the Reective sensor
(p.41)
Sensor Selection Method
(Transparent

Reective) (p.39)
Adjusting the Transparent sensor
(p.40)

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
