Chapter 2 Printer Operation
Setting the Media
Installing the Media

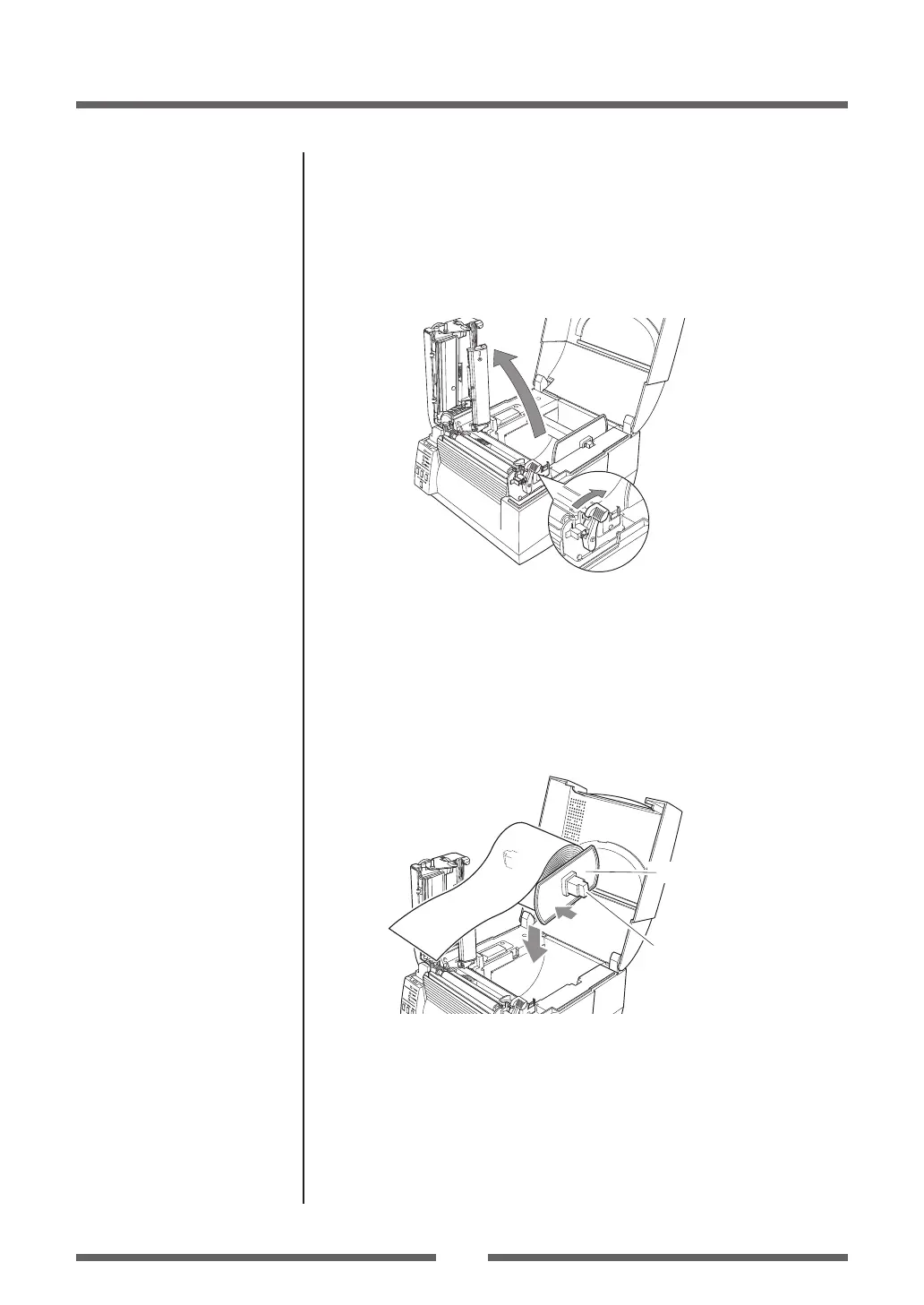

1. Push the large blue-head open lever to release the head
unit and sensor arm. It can be opened to the position shown
below by lifting the head unit by hand.
Large blue-head open lever
2. Firstly, slide the two black plastic parts of the media holder
assembly together. Ensure correct alignment of the guide
with the bar as it can only be installed in one direction.
3. Slide the roll of media over the media bar. The media guide
must be on the right side of the roll of media (as viewed from
the front of the printer) with the ribbed surface of the media
guide touching the media roll as shown in the illustration.
Media holder bar
Media holder guide
4. Set the media roll and media holder in to the printer as shown
above. It is advisable to pull a length of media forwards and
through the mechanism ready for later positioning.
5. Move the media roll so it is touching the leftside of the
housing. Then slide the black media guide so it is touching
the media on the right side. Do not try to hold the media
too tightly with these guides as it will cause the printer to
jam during printing.
