Citizen CL-S521 User Manual

43

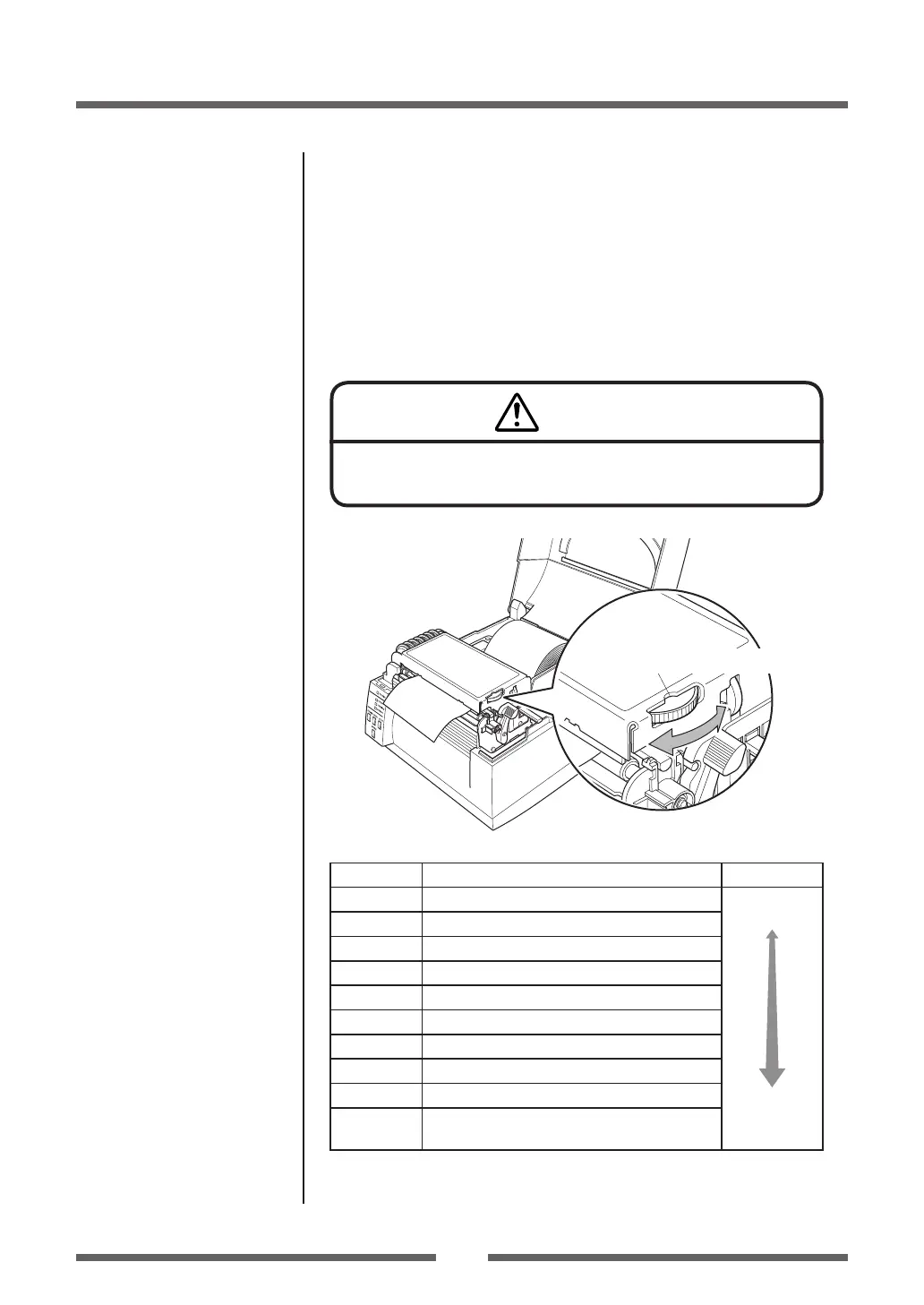

Chapter 3 Printer Adjustments
Media Width Adjustment
The head pressure varies according to the width of the media being printed.
The head pressure balance must be adjusted according to media width so
that constant head pressure is applied to the head. With this printer, it can
be adjusted easily by turning the media width adjustment dial.
If the printing is blurred or lightly printed on one side or the media moves
in a zigzag pattern adjust the head pressure balance.
After making an adjustment, conrm the output quality with a test print.
9
Media width adjustment dial
Dial position Media width mm (inches) Head pressure
0 19.5 to 23.0 mm (0.77 to 0.90)
Low
High
1 23.0 to 30.0 mm (0.90 to 1.18)
2 30.0 to 39.0 mm (1.18 to 1.53)
3 39.0 to 49.0 mm (1.53 to 1.92)
4 49.0 to 62.0 mm (1.92 to 2.44)
5 62.0 to 76.0 mm (2.44 to 2.99)
6 76.0 to 88.0 mm (2.99 to 3.46)
7 88.0 to 99.0 mm (3.46 to 3.89)
8 99.0 to 108 mm (3.89 to 4.25)
9
108 to 118 mm (4.25 to 4.65)
(setting when shipped)
The following values are criteria.
When using narrow media, be sure to MAKE this adjustment. (If you
do not, the head may be damaged by jamming, etc.)
Caution
Installing the Media (p.24)
Self Print Mode (p.26)

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
