Citizen CL-S521

21
Chapter 2 Printer Operation
Menu Setting Table (p.32)

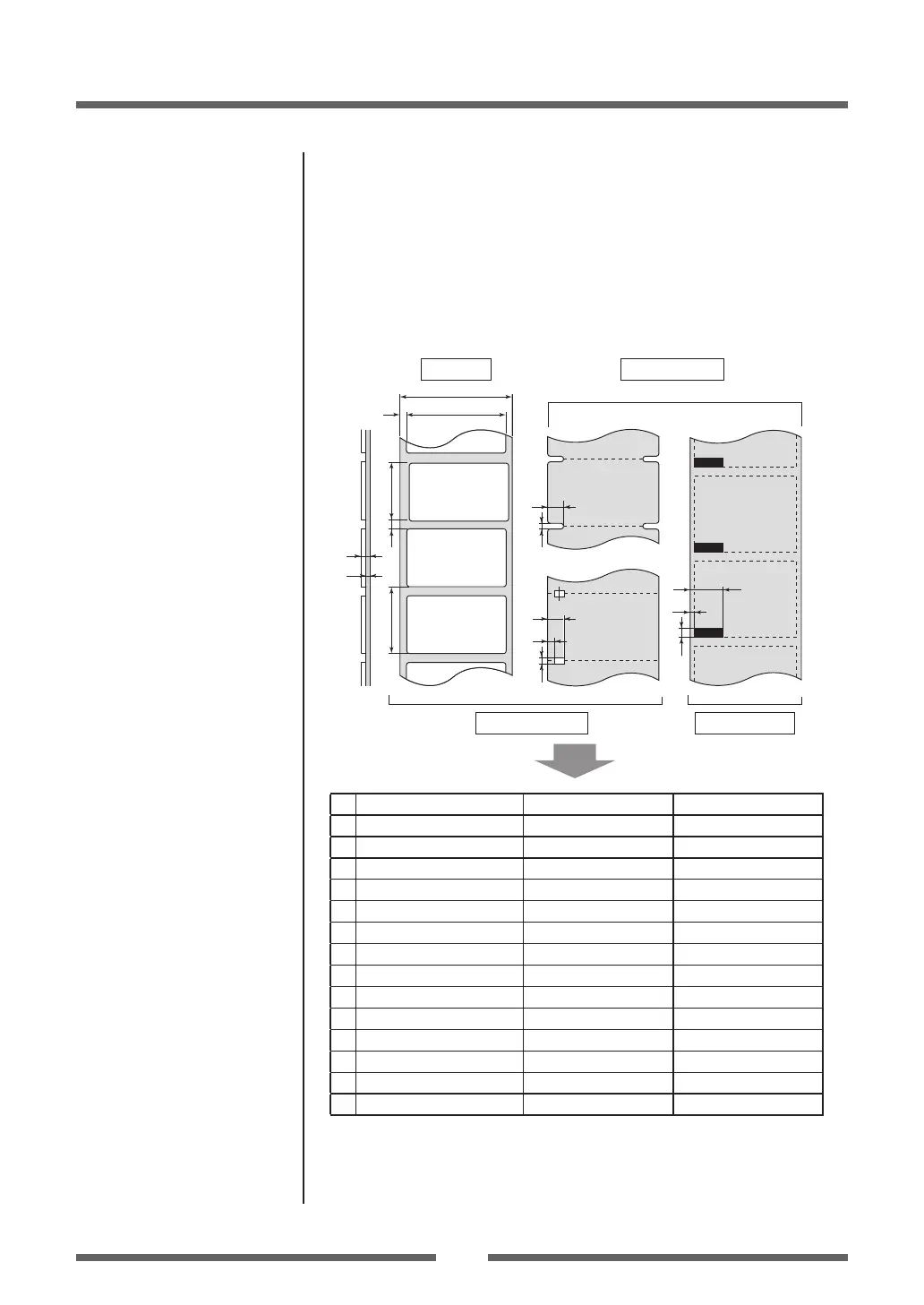

Setting the Media
Media Sizes
The position of label and tag media is sensed by either a transparent
sensor or a reective sensor.
Transparent sensor: Detects the gaps between label media and notches
of tag media
Reective sensor: Detects the black mark
A
I
I
G
H
D
KK
F E
B
Notch detection Black mark detection
J
L
N
M
Transparent sensor
Continuous media
Label
Label
Label
Printed area
Reective sensor
Media direction
Label media
C
Min. value mm (inches) Max. value mm (inches)
A Label width 19.50 (0.77) 118.00 (4.65)
B Liner width 19.50 (0.77) 118.00 (4.65)
C Label left edge position 0 (0) 2.54 (0.10)
D
Length of gap between labels 2.54 (0.10) 812.8 (32.00)
E Label length 6.35 (0.25) 812.8 (32.00)
F Label pitch 6.35 (0.25) 812.8 (32.00)
G Liner thickness 0.06 (0.0025) 0.125 (0.0049)
H Total media thickness 0.06 (0.0025) 0.25 (0.01)
I
Position of right edge of notch 3.60 (0.14) 60.80 (2.39)
J
Position of left edge of notch 0 (0) 57.20 (2.25)
K Notch length 2.54 (0.10) 17.80 (0.70)
L Right edge of black mark 15.00 (0.59) 66.50 (2.62)
M Left edge of black mark 0 (0) 51.5 (2.02)
N Black mark width 3.18 (0.125) 17.80 (0.70)
* Use a transparent sensor for label media gaps and media with black marks.
*

Use a transparent sensor for fan fold media.
* If the label pitch is 1 inch or less, set the Small Media Adjustment menu to ON
and match it to the label that uses the value of the Small Media Length menu.
