Citizen CL-S521 User Manual

30
Chapter 2 Printer Operation
Mode Settings

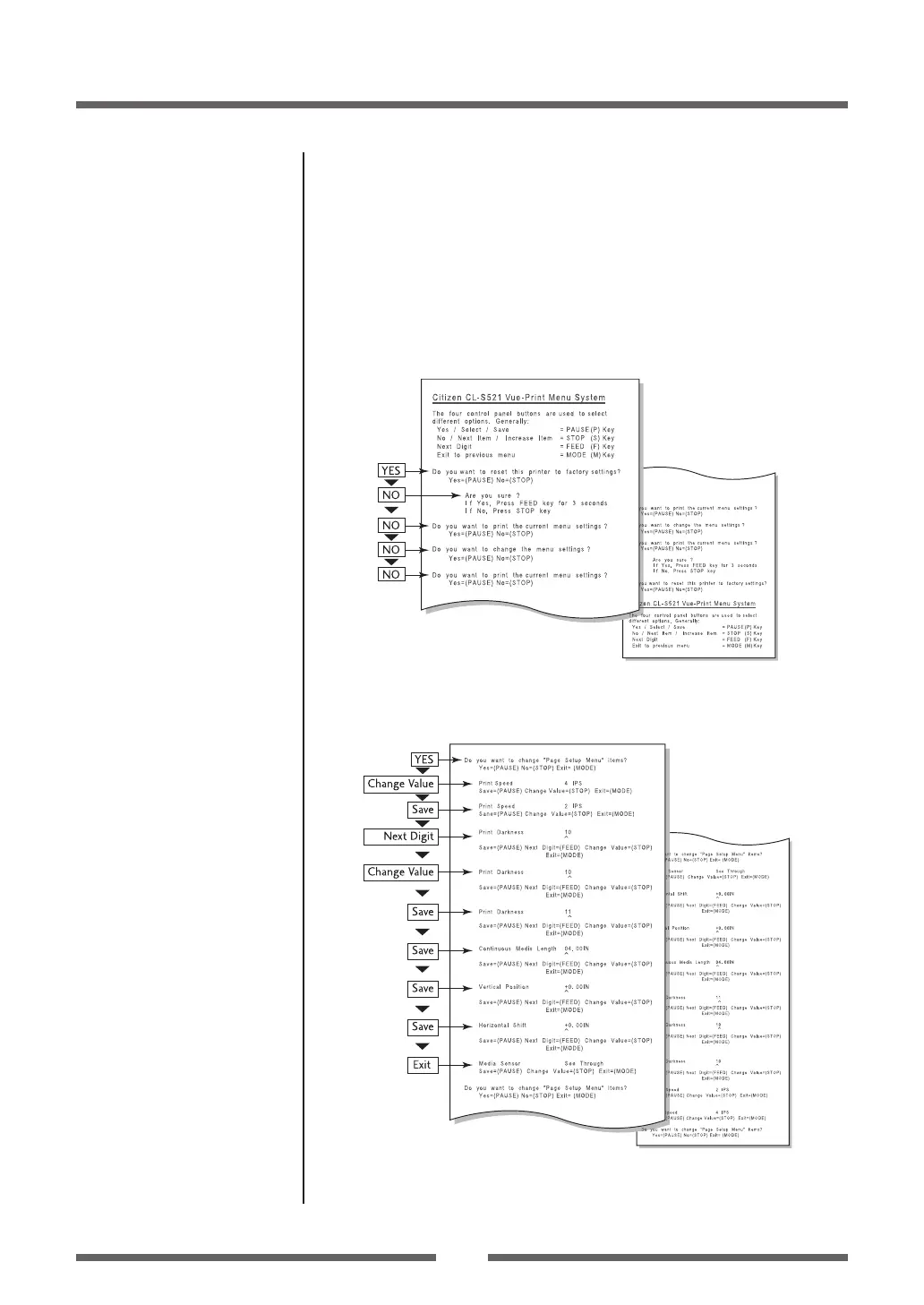

Shown below is a sample menu output from the VuePrint menu system.
This particular example is changing the print speed and print darkness
then continues through the remainder of the “Print Setup” menu.
The actual output from the printer is “vertically reversed” due to the way
the printer outputs the menu options. Please look at the example below
to see how the output changes.
Printing during top menu setting
<Example of CL-S521 Datamax® emulation selected>
Printing during sub menu setting
<Example of CL-S521 Datamax® emulation selected>
Menu Setting Flow Chart (p.28)
Menu Setting Flow Chart (p.28)

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
