Setup
13

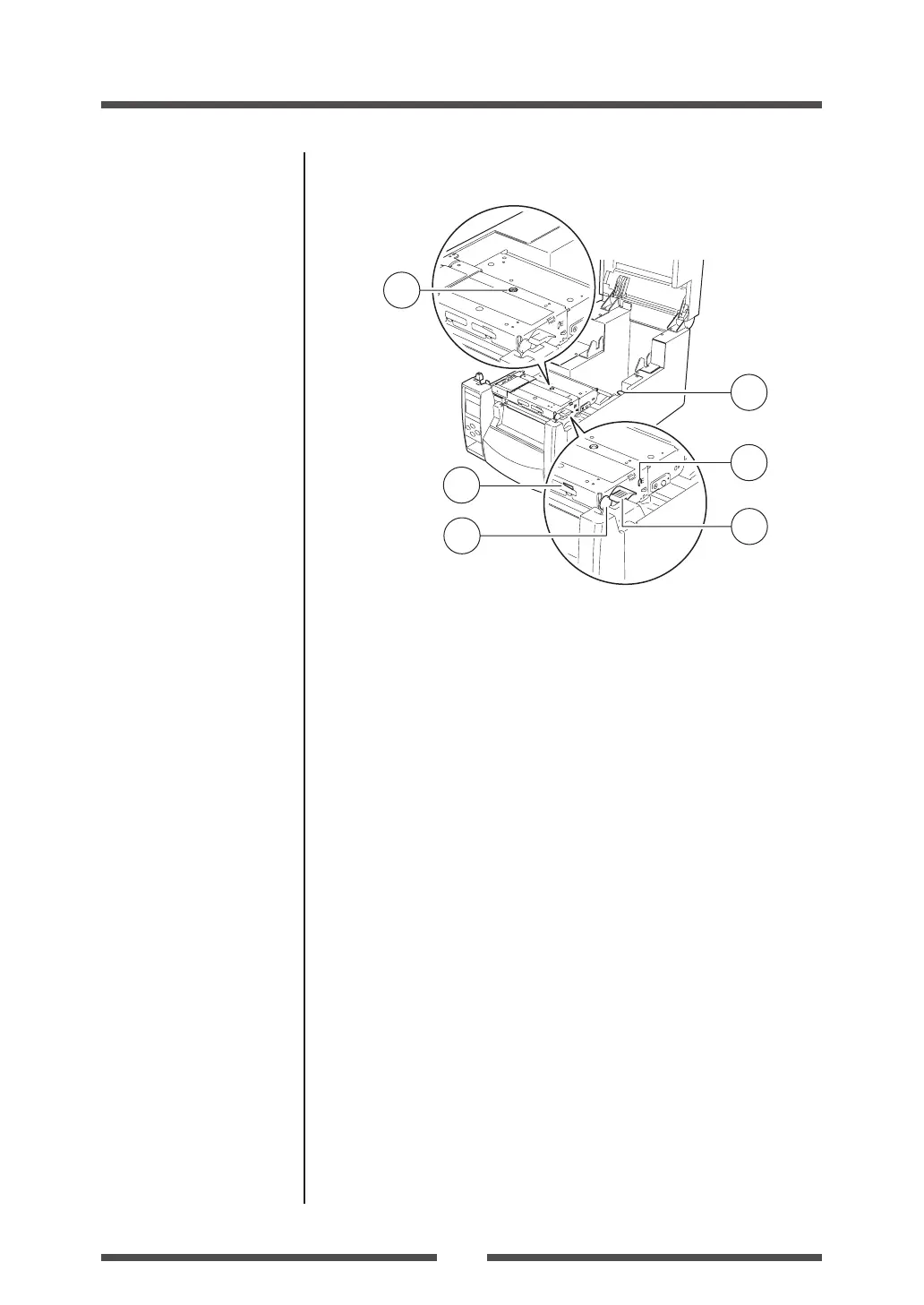

Part Names and Functions
3
2
5
4
6
1
1
Media thickness adjustment screw
It is adjusted to match the thickness of the media.
2
Media width adjustment indicator
3
Media width adjustment knob
It is adjusted to match the width of the media.
4
Media thickness adjustment indicator
5
Head open lever
The head unit can be raised to install media by pushing this lever.
It locks the head unit during printing.
6
Damper arm open lever
The damper arm can be raised to install media by pushing this lever.
Media Width Adjustment (p.46)
Media Thickness Adjustment
(p.45)
