Media Sizes (p.22)
Setting the Media
Installing the Media

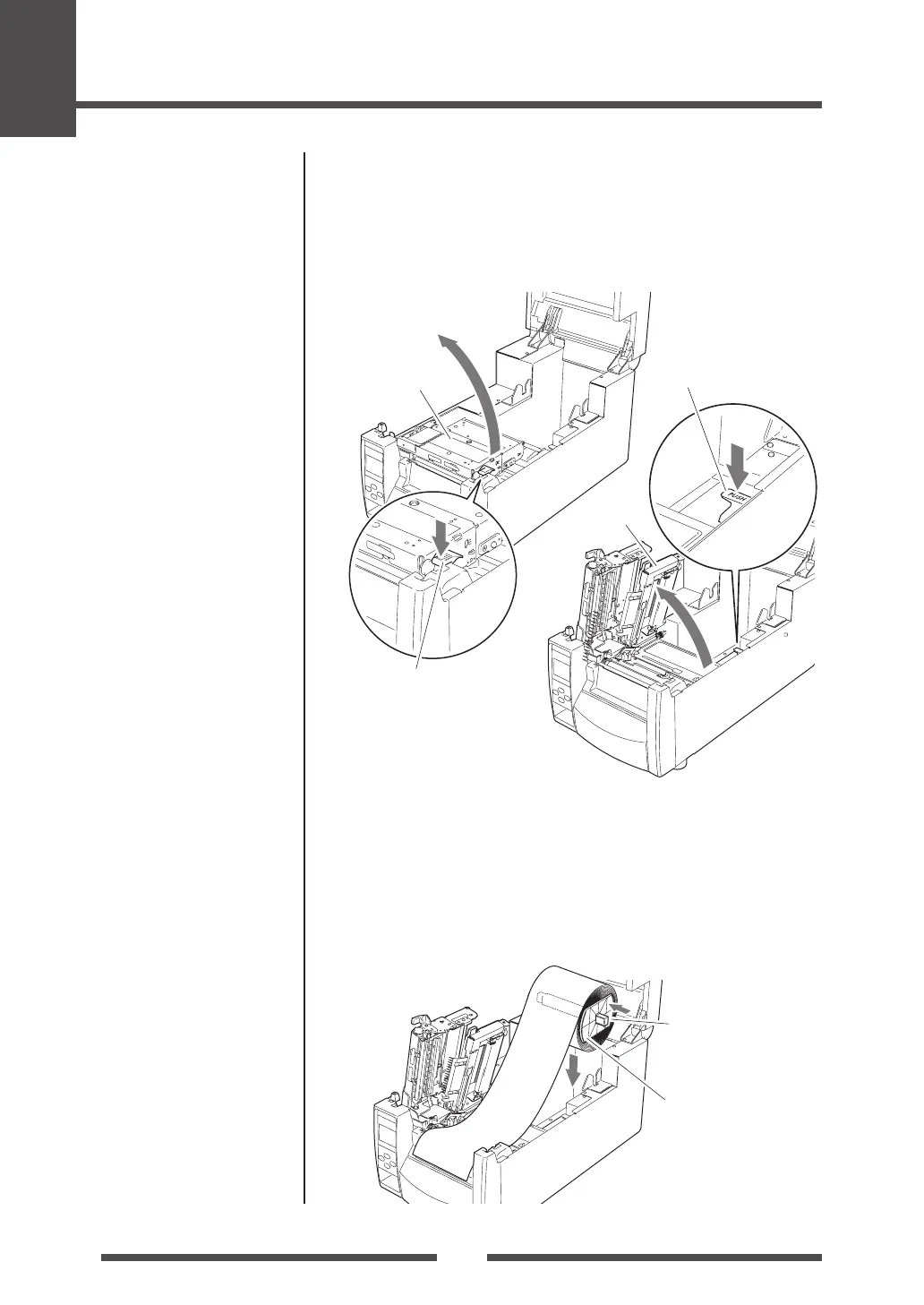

Push the large blue head-open lever to release the head unit, 1.
and then lift the damper arm by hand as shown below.
Damper arm
Large blue-head open lever
Damper arm open lever
Head unit
Firstly, slide the two black plastic parts of the media holder 2.
assembly together. Ensure correct alignment of the guide
with the bar as it can only be installed in one direction.
Slide the roll of media over the media bar. The media guide 3.
must be on the right side of the roll of media (as viewed from
the front of the printer) with the flat surface of the media
guide touching the roll.
Media holder bar
Media holder guide
