Sensor Adjustments and Calibration
Adjusting the Reective sensor
The reective sensor is selected.1.

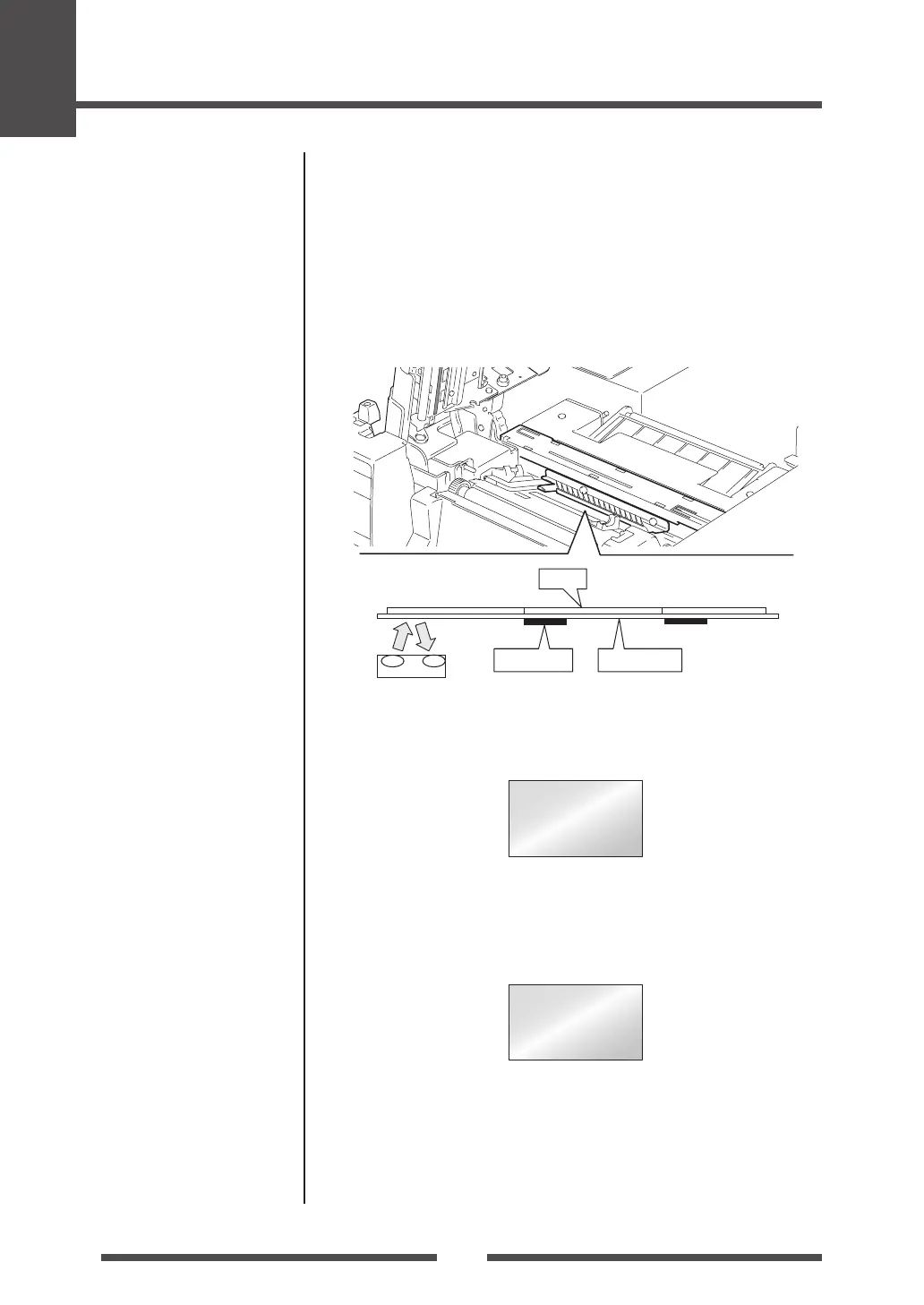

With the reective sensor selected, install the label media so 2.
that it is between the platen roller and the media sensor.
Be careful that black mark and media gap do not pass the
media sensor. Then close the damper arm and the printhead.
Black mark
Label
Liner media
Bottom sensor
If the Pause Key is pressed then released while the MENU key 3.
is continually pressed, the sensor is automatically adjusted.
Sensor Cal Mode
Executing
When automatic adjustment stops normally, "Succeeded" is 4.
displayed by the LCD. If it stops abnormally (adjustment is
impossible), ERROR LED ashes and "Failed" is displayed on
the LCD.
Sensor Cal Mode
Succeeded
If the Cancel (STOP) key is pressed, the Printer completes 5.
sensor adjustment and the printer restarts.
Quick Sensor Selection Method
(Transparent

Reective)
(p.42)
