Parallel port status signals when an error occurs
The status of a signal line will not be changed in bi-directional mode such
as nibble or ECP mode.
Error Change in the status of a signal line in compatible
mode
Paper end Busy : L

H
PError : L

H
Select : H

L
nFault : H

L
Error other than paper end
•Headopen
•Other
Busy : L

H
PError : L

unchanged
Select : H

L
nFault : H

L
Conditions for Busy •Receivebuerfull
•Databeingread
•Error

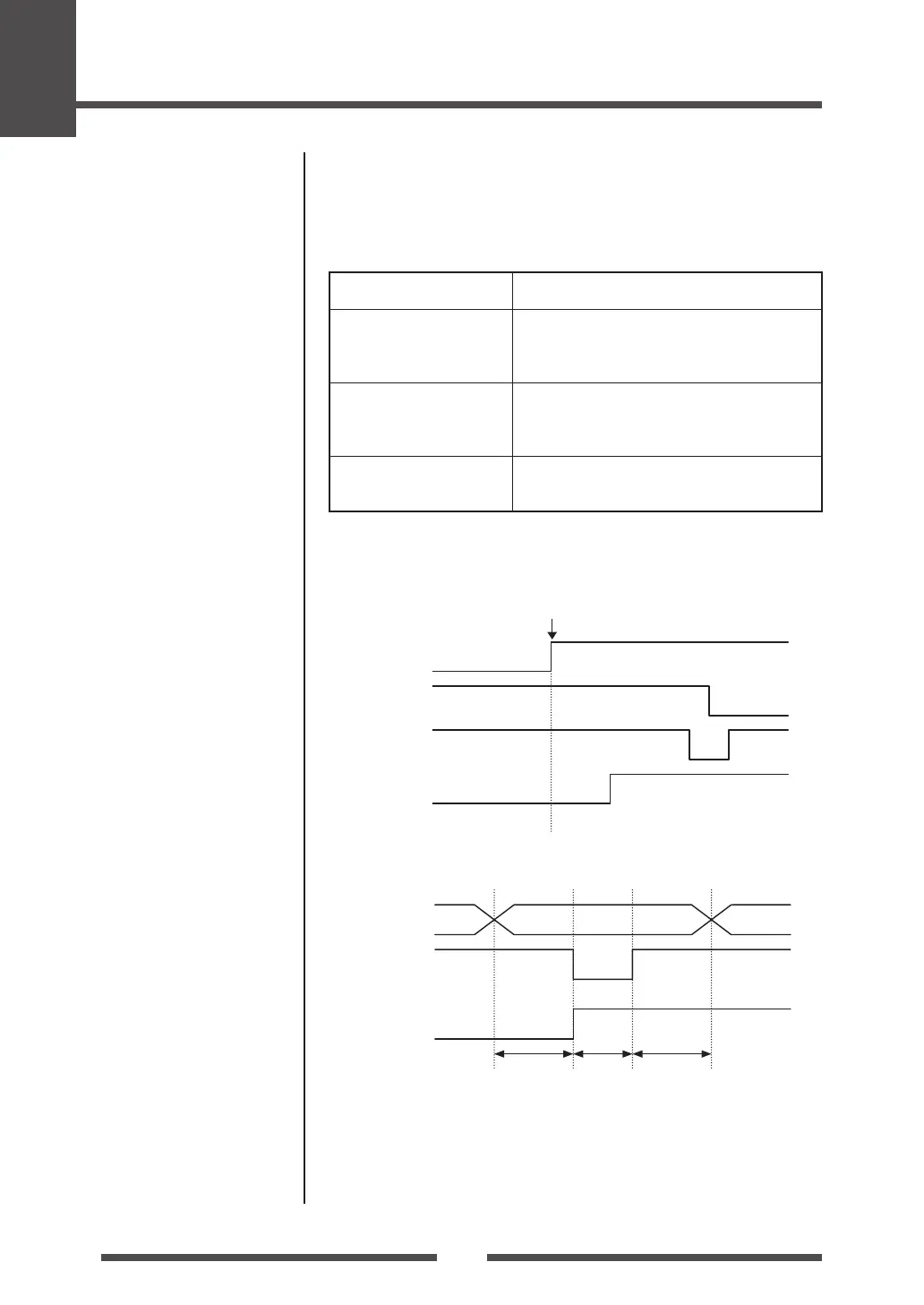

Compatible timing specication
[When power is on] (Time it goes o-line)
Reset
BUSY
*ACK
SELECT
PowerOn
[While receiving data]
Data0-7
*Strobe
BUSY
0.5µs 0.5µs 0.5µs
Note: Busy rises when *Strobe signal starts, and data is latched with
*Strobe signal starts.
