Citrix ADC MPX
Power Supply 750 W AC 750 W DC
Warning
(OVP/UVP/OCP/OTP/Fan)
‑ ‑
Note
Power Supply Unit ON‑Green
Power Supply Unit OFF‑ No Color
There is no other function other than ON or OFF for the module LEDs. A continuous beep sound
occurs if a cable or module is unplugged.
Ports
Ports are used to connect the appliance to external devices. Citrix ADC appliances support the follow‑
ing ports:
• RS232 serial ports
• 10/100/1000Base‑T copper Ethernet ports
• 1 GB copper and fiber SFP ports
• 10 GB fiber SFP+
• 25 GB SFP 28
• 40G QSFP+
• 50 GB QSFP28
• 100 GB QSFP28
All Citrix ADC appliances have a combination of some or all of these ports. Cards might be vertical
or horizontal depending on the platform. The number of ports per card varies across platforms. For
better fault tolerance, create link aggregated groups (LAGs) on independent cards. Typically, cards

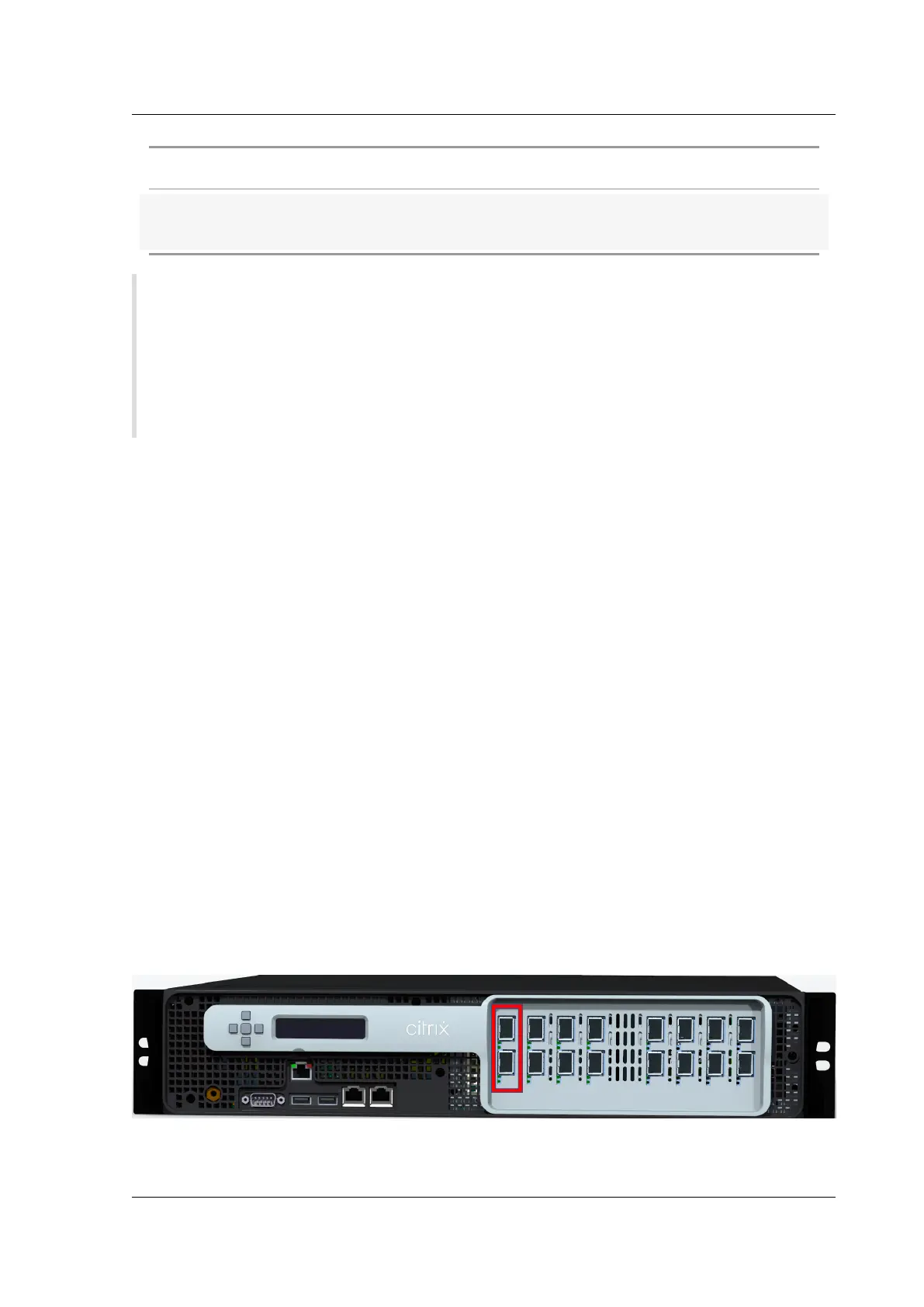

are vertical on 2U appliances and horizontal on 1U appliances as seen in the following sample illus‑
trations.
