215
AXLES
SUSPENSION
STEERING
FEATURES OF ELECTRIC POWER STEERING
Engines: HFX - KFV - KFU - NFU - 8HX - 8HW - 8HV - 8HY

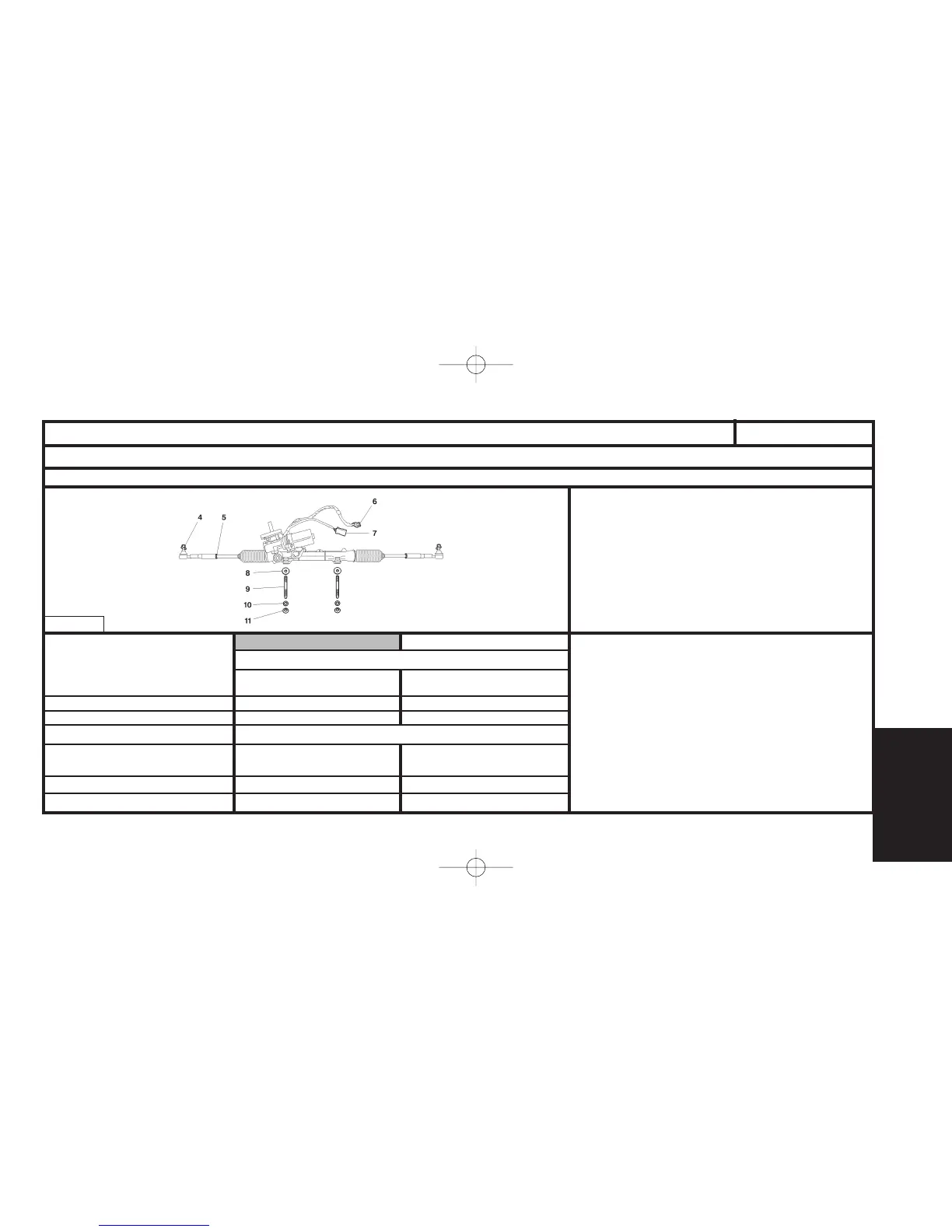

Steering mechanism
Tightening torques (m.daN).
(4) Ball-joint fixing on pivot : 3,5 ± 0,3
(5) Steering rod lock-nut : 5 ± 0,5
(8) Threaded washer
(9) Stud : 0,8 ± 0,1
(10) Flat washers
(11) Fixing of mechanism on subframe : 8 ± 0,8
Connectors.
(6) Supply of electric assistance motor
(7) Torque sensor signals
C3 Pluriel
C3
TU3JP - TU5JP4 - DV4TD
TU3JP (BVA) - ET3J4
DV4TD
Electric motor 60 A 65 A
Steering rack travel 2x72 2x64
Steering ratio 45,6/1
Number of rotations of
steering wheel
3,2 2,8
Inner angle of lock 38° 32°30’
Outer angle of lock 32°24’ 28°42’
B3EP13JD
C3 - C3 PLURIEL
