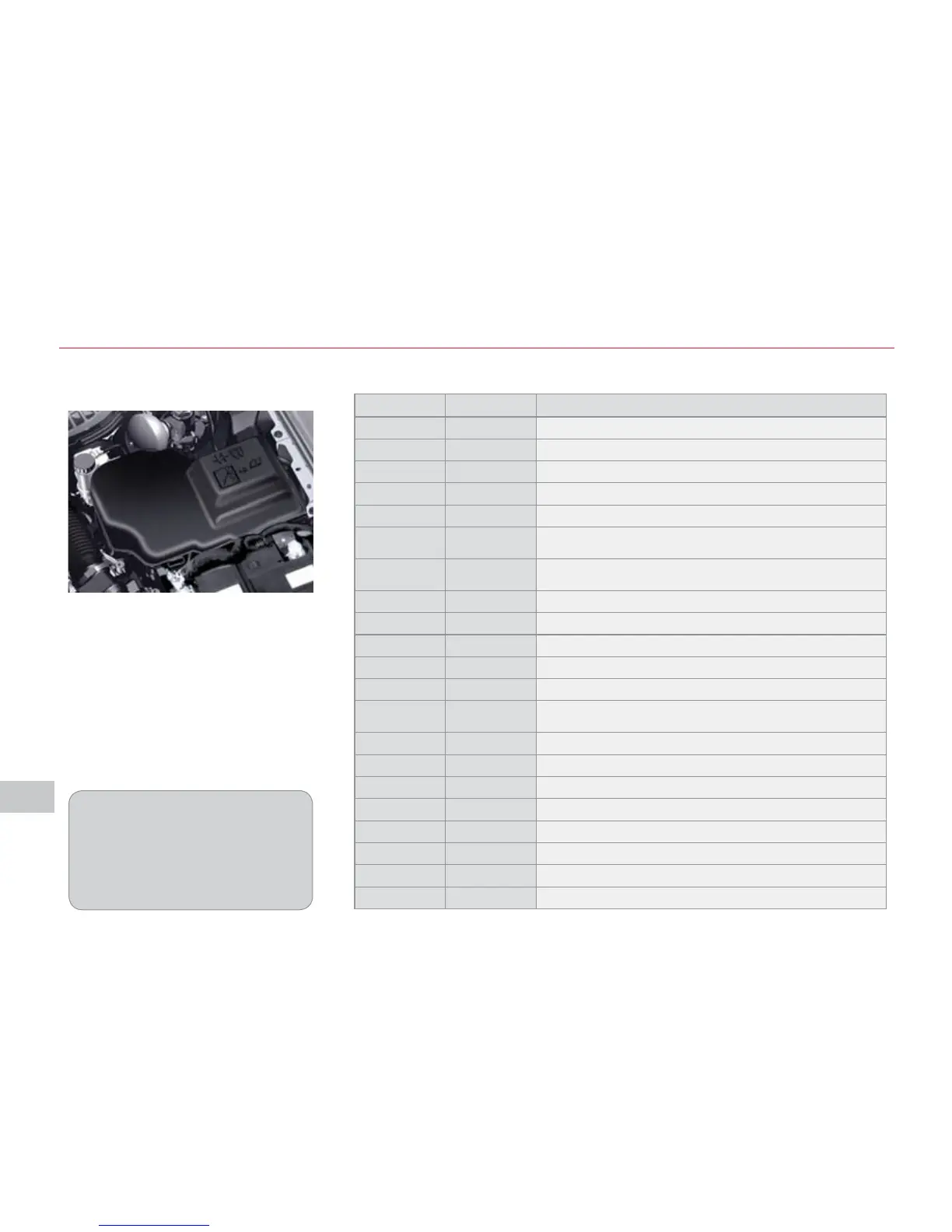

Fuses under the bonnet
After a repair, take care to close
the cover correctly.
Any repairs on the MAXI fuses
(that give additional protection)
located in the fuseboxes, must
be left to a CITROËN or a quali-
fi ed workshop.
Access to the fuses
) Undo each screw by a 1/4 turn.
) Change the fuse.
Table of fuses
Fuse N° Rating Function
F1 20 A Engine control unit
F2 15 A Horn
F3 10 A Screen wash pump
F4 10 A Headlamp wash pump
F5 15 A Engine actuators
F6 10 A
Air fl ow meter - Directional headlamps -
Diagnostic socket
F7 10 A
Automatic gearbox lever lock -
Power steering
F8 25 A Starter motor
F9 10 A Clutch switch - Stop switch
F10 30 A Engine actuators
F11 40 A Air conditioning blower
F12 30 A Wipers
F13 40 A
BSI supply
(ignition on)
F14 30 A -
F15 10 A Right-hand main beam
F16 10 A Left-hand main beam
F17 15 A Right-hand dipped beam
F18 15 A Left-hand dipped beam
F19 15 A Engine actuators
F20 10 A Engine actuators
F21 5 A Engine actuators
