SM
-
A20758
-
A/3
3
.
USAGE
35
2020
-
10
-
06
Operation
w
hile commu
nication err
or
occurred se
tti
ng

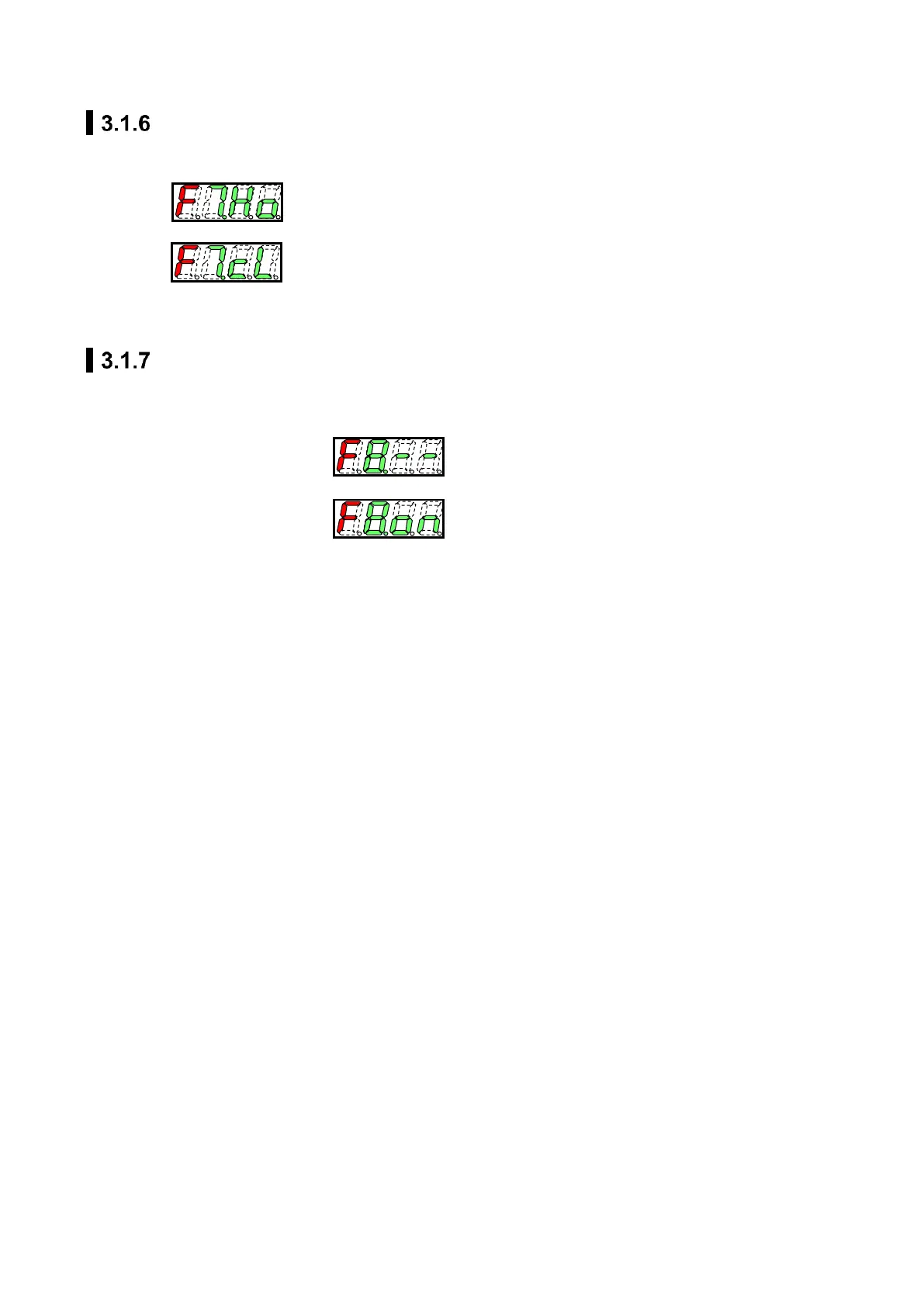

The F7 scree
n shows wh
ether the operation
while comm
unication err
or occurred sett
i
ng is its set
value.
HOLD:
CLEAR:
Control stop funct
ion at zero input sig
nal
The F8 scree
n shows wh
ether the control sto
p function at z
ero input signa
l is enabled or
disable
d.
When the
function is d
isabled:
When the
function is en
abled:
42
44
Table of Contents
Preface
2
Safety Information
3
Precautions on Product Use
4
Precautions on Design and Selection
4
Table of Contents
7
Contents
8
Product Overview
9
Part Name
9
Body
9
Names and Functions of Display and Operation Panel
11
Functions
12
Model Number Indication
14
Specifications
16
Communication Specifications
22
General
22
On Demand Data
23
Parameter and Commands
24
Process Data in
27
Process Data out
28
Observation
28
Diagnosis
29
Dimensions
30
Internal Structure
32
Installation
34
Mounting
34
Piping
36
Seal Material
36
Wiring
37
M12 Connector
38
Cable Connection
39
Usage
40
Checking the Set Value (RUN Mode)
40
Input Signal Type Setting
40
Automatic Power off
41
Switch Output
41
Proportional Value Change
42
Unit Setting
42
Operation While Communication Error Occurred Setting
43
Control Stop Function at Zero Input Signal
43
How to Set (Setting Mode)
44
Setting Ranges
44
Key Lock
45
Input Signal
45
Automatic Power off
47
Switch Output
48
Proportional Value Change Setting
50
Unit Change (KA Type)
52
Operation While Communication Error Occurred Setting
53
Control Stop Function at Zero Input Signal
54
Factory Setting Mode (Initialization)
55
Control Procedure Using IO-Link Communication
56
Normal Mode
56
Preset Input
58
Direct Memory Input
60
Monitoring Overactive State of Solenoid Valve
61
Acquired Data
61
How to Obtain Data
62
Maintenance and Inspection
63
Periodic Inspection
63
Troubleshooting
64
Problems, Causes, and Solutions
64
Error Code
66
Optional Part Model Number
67
References
69
Operating Principle of Digital Electro-Pneumatic Regulator
69
Operating Principle
69
About Overactive State
71
Warranty Provisions
72
Warranty Conditions
72
Warranty Period
72
Other manuals for CKD EVD-1000 Series
Manual
27 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the CKD EVD-1000 Series and is the answer not in the manual?
Ask a question
