CKD EVD-1000 Series User Manual

SM-A20758-A/3 3. USAGE
44 2020-10-06
Unit change (KA type)
◼ How to operation (Key operation)

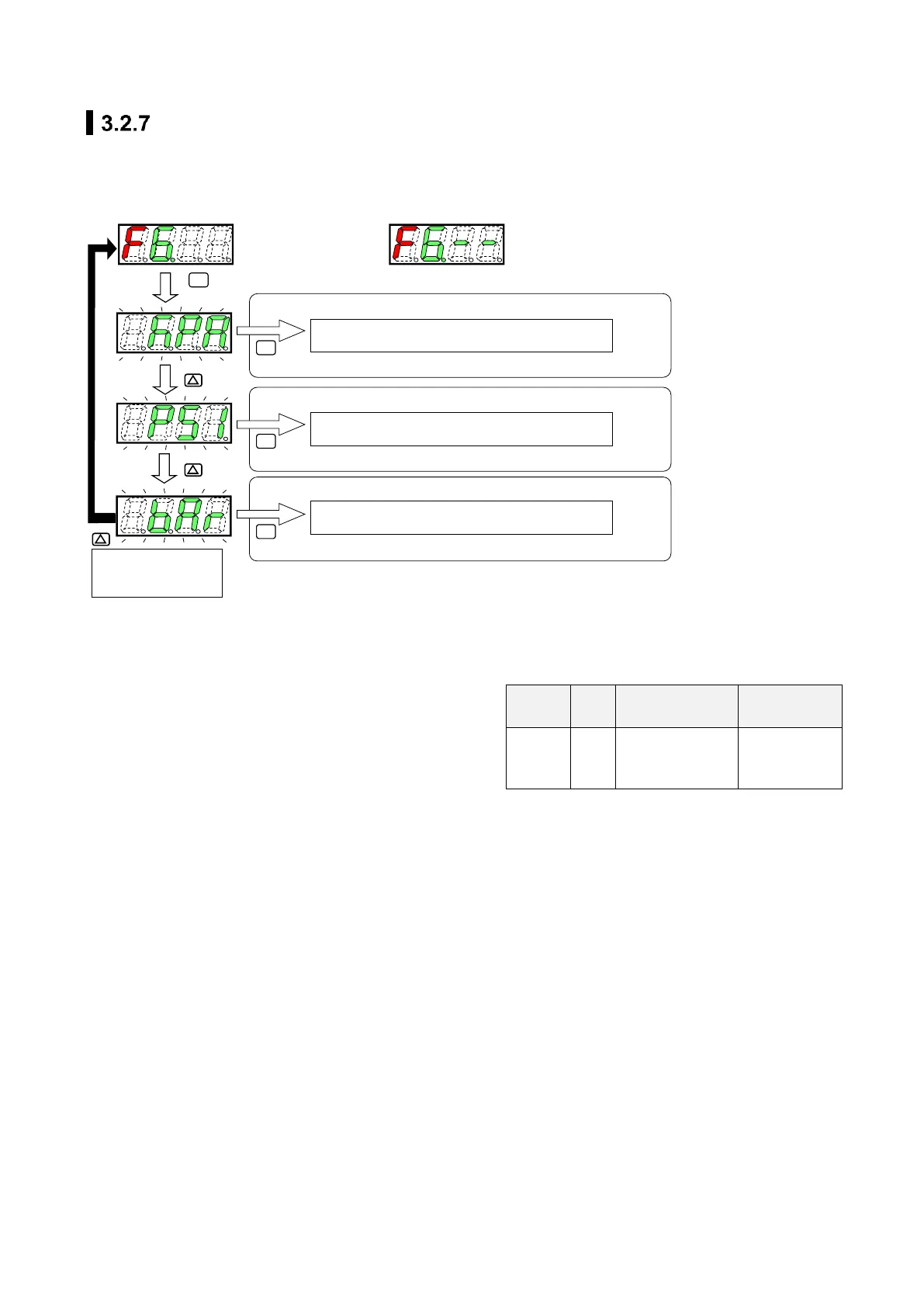

In the F6 screen, press and hold the [SET] key at least two seconds to switch to the setting mode.
◼ How to operation (IO-Link communication)
<Parameter settings>
• Unit conversion
Write a desired unit "0: kPa",
"1: psi" or "2: bar" to Index:0x0118.
* When "Unit change none" is selected, only "0: kPa" is writable.
Writing any other value results in a write error.
For Bar setting
For PSI setting
The setting mode is
canceled and returns to
screen F6.
* For domestic models, data is displayed
on the left and data cannot be set.
SET
For KPa setting
*Factory setting
After the data is confirmed, the setting mode is canceled and
returns to screen F6.
SET
SET
SET
At least 2 seconds
At least 2 seconds
At least 2 seconds
At least 2 seconds
After the data is confirmed, the setting mode is canceled and
returns to screen F6.
After the data is confirmed, the setting mode is canceled and
returns to screen F6.
Index
Sub
Index
Item
値
0x0118
0
Unit change
0: kPa
1: psi
2: bar
Parameter and Command
