CI Man u al Page 13
RETURN TO NORMAL MODE
Step 16S – Set Low Salt Warning using ▲ or ▼. If value is set to:
• oFF, no low salt level warning will appear for the user; or
• a specifi c value, “FILL SALT” will fl ash on the display when the
calculated remaining kg of salt falls below that level. Allowable values
range from 5 to 400 Kg in 5 Kg increments.
Press NEXT to exit OEM Softener System Setup. Press REGEN to return
to previous step.
Step 12S – Set Relay 1 Deactivate Time using ▲ or ▼.
• If Set Time on is selected in Step 10S the relay will deactivate after the time set has expired.
Ranges from 1 second to 200 minutes.
• If Set L on or Set L Softening Regen on is selected in Step 10S the relay will deactivate after the
time set has expired or after the meter stops registering fl ow, whichever comes fi rst. Ranges from 1
second to 20 minutes.
Press NEXT to go to Step 13S. Press REGEN to return to previous step.
STEP 12S
STEP 13S
Step 13S – Set Relay 2 operation using ▲ or ▼. The choices are:
• Set Time on: Relay activates after a set time at the beginning of a
regeneration cycle and then deactivates after a set period of time. The
start of regeneration is defi ned as the fi rst backwash cycle or Dn brine
cycle, whichever comes fi rst.
• Set L Softening on: Relay activates after a set volume has been used
while in service, then deactivates after the meter stops registering fl ow and the set time period has
expired.
• Set L Softening Regen on: Relay activates after a set volume has been used while in service or
during regeneration, then deactivates after the meter stops registering fl ow and the set time period
has expired.
• Error: Relay closes whenever the control enters the Error Mode, and immediately deactivates when
the error mode is exited.
• Set Off: If set to Off, Steps 14S and 15S will not be shown.
Press NEXT to go to Step 14S. Press REGEN to return to previous step.
Step 14S – Set Relay 2 Actuation Time or Liters using ▲ or ▼. The choices are:
• Relay Actuation Time: After the start of a regeneration the amount of time that should pass prior to
activating the relay. The start of regeneration is defi ned as the fi rst backwash cycle or Dn brine/Up
brine cycle, whichever comes fi rst. Ranges from 1 second to 200 minutes.
• Relay Actuation Liters: Relay activates after a set number of Liters has passed through the meter
when the valve is in the Service mode. Ranges from 1 to 200 Liters.
Press NEXT to go to Step 15S. Press REGEN to return to previous step.

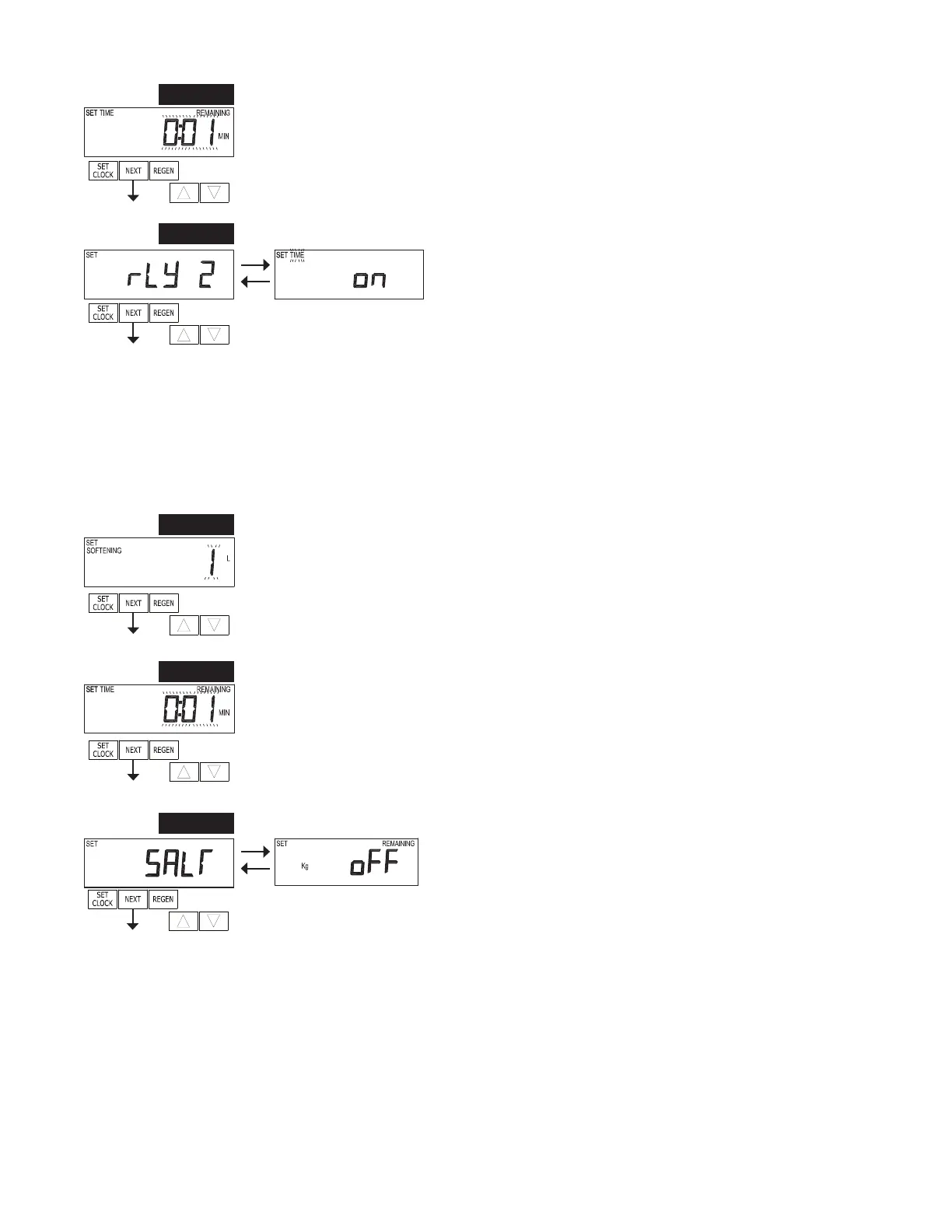

STEP 14S
Step 15S – Set Relay 2 Deactivate Time using ▲ or ▼.
• If Set Time on is selected in Step 13S the relay will deactivate after the time set has expired.
Ranges from 1 second to 200 minutes.
• If Set L on or Set L Softening Regen on is selected in Step 13S the relay will deactivate after the
time set has expired or after the meter stops registering fl ow, whichever comes fi rst. Ranges from 1
second to 20 minutes.
Press NEXT to go to Step 16S. Press REGEN to return to previous step.
STEP 15S
STEP 16S
