Page 16 CI Man u al

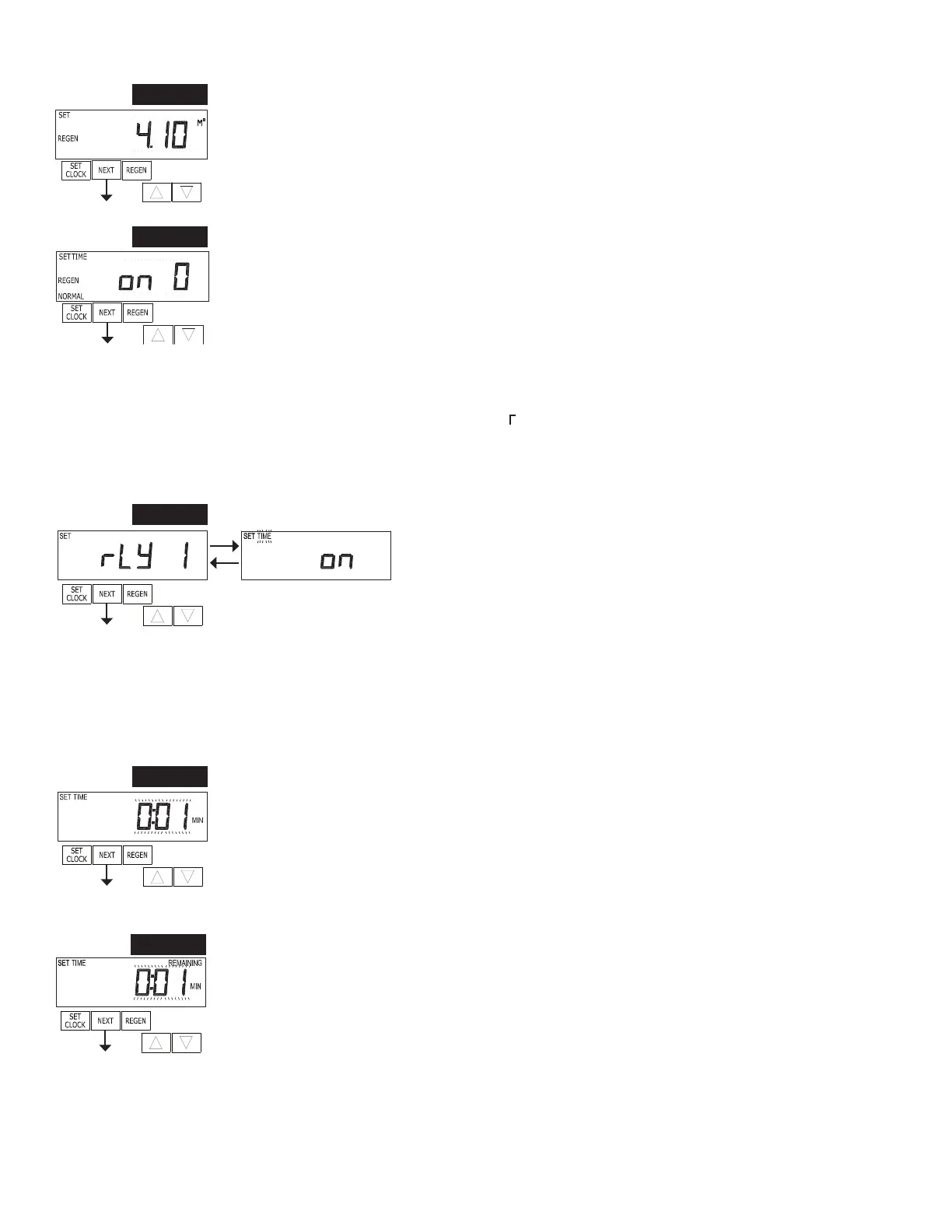

Step 7F – Set Volume Capacity using ▲ or ▼. If value is set to:
• oFF regeneration will be based solely on the day override set (see Installer Display/Settings Step
4I); or
• a number, regeneration initiation will be based off the value specifi ed (in M
3
).
See Setting Options Table for more detail. Press NEXT to go to Step 8F. Press REGEN to return to
previous step.
Step 8F – Set Regeneration Time Options using ▲ or ▼. If value is set to:
• NORMAL means regeneration will occur at the preset time;
• on 0 means regeneration will occur immediately when the volume capacity reaches 0 (zero); or
• NORMAL + on 0 means regeneration will occur at one of the following:
— the preset time when the volume capacity falls below the reserve or the specifi ed number of
days between regenerations is reached whichever comes fi rst;
or
— immediately after 10 minutes of no water usage when the volume capacity reaches 0 (zero).
“NORMAL” is the default if Step 4CS is set to ALT A or ALT B, and “NORMAL + on 0” is not
available.
On 0 is the default if Step 2CS is set to 1.0 , and NORMAL + on 0 is not available.
This step will not appear if Step 7F is set to “oFF”.
See Setting Options Table for more detail. Press NEXT to go to Step 9F. Press
REGEN to return to previous step.
STEP 9F
Step 9F – Set Relay 1 operation using ▲ or ▼. The choices are:
• Set Time on: Relay activates after a set time at the beginning of a
regeneration cycle and then deactivates after a set period of time. The
start of regeneration is defi ned as the fi rst backwash cycle or Dn brine
cycle, whichever comes fi rst.
• Set L Filtering on: Relay activates after a set volume has been used
while in service, then deactivates after the meter stops registering fl ow and the set time period has
expired.
• Set L Filtering Regen on: Relay activates after a set volume has been used while in service or
during regeneration, then deactivates after the meter stops registering fl ow and the set time period
has expired.
• Set Off: If set to Off, Steps 10F and 11F will not be shown.
Press NEXT to go to Step 10F. Press REGEN to return to previous step.
STEP 8F
STEP 7F
Step 10F – Set Relay 1 Actuation Time or Liters using ▲ or ▼. The choices are:
• Relay Actuation Time: After the start of a regeneration the amount of time that should pass prior
to activating the relay. The start of regeneration is defi ned as the fi rst backwash cycle or Dn brine
cycle, whichever comes fi rst. Ranges from 1 second to 200 minutes.
• Relay Actuation Liters: Relay activates after a set number of Liters has passed through the meter
when the valve is in the Service mode. Ranges from 1 to 200 Liters.
Press NEXT to go to Step 11F. Press REGEN to return to previous step.
STEP 10F
Step 11F – Set Relay 1 Deactivate Time using ▲ or ▼.
• If Set Time on is selected in Step 9F the relay will deactivate after the time set has expired. Ranges
from 1 second to 200 minutes.
• If Set L on or Set L Filtering Regen on is selected in Step 9F the relay will deactivate after the
time set has expired or after the meter stops registering fl ow, whichever comes fi rst. Ranges from 1
second to 20 minutes.
Press NEXT to go to Step 12F. Press REGEN to return to previous step.
STEP 11F
To Next Page
