WS1CS & WS1.25CS Manual Page 11
STEP 1F
STEP 2F
STEP 4F
STEP 5F
STEP 6F
STEP 3F
STEP 7F
RETURN TO
NORMAL
MODE
OEM Filter System Setup
This is a quick reference setup procedure. See OEM Filter System Setup Detail for more
information on available settings.

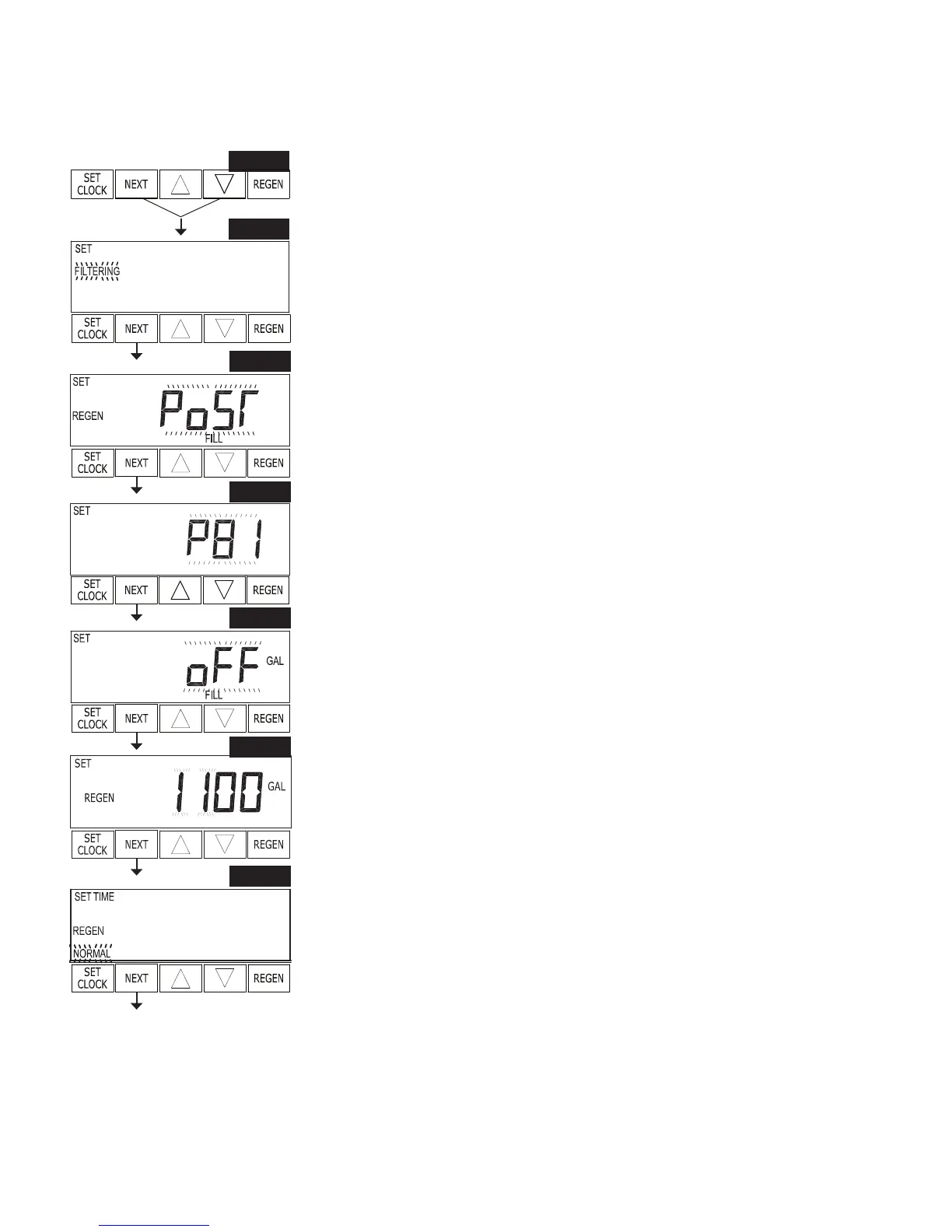

STEP 1F – Press NEXT and ▼ simultaneously for 3 seconds. If screen in step 2F does not
appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and
SET CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds.
STEP 2F – Choose Filtering using ▼ or ▲. Press NEXT to go to step 3F. Press REGEN to
exit OEM Filter System Setup.
STEP 3F – Set Refi ll option using ▼ or ▲:
• “PoST” to refi ll the brine tank after the fi nal rinse; or
• “PrE” to refi ll the brine tank two hours before the regeneration time set.
Press NEXT to go to step 4F. Press REGEN to return to previous step.
STEP 4F – Program code: Enter the desired program code from Table 2, Table 5 or Table 6.
Prior to selecting a Program Code, verify the correct valve body, main piston, regenerant
piston, and stack are being used, and that the injector or injector plug(s) are in the correct
locations. See Compliance Table in WS1 and WS1.25 Drawings and Service Manual. Press
NEXT to go to Step 5F. Press REGEN to return to previous step.
STEP 5F – Enter “oFF” if regenerant is not used (i.e. backwash only) or enter the refi ll
volume (in gallons) using ▼ or ▲. Press NEXT to go to step 6F. Press REGEN to return to
previous step.
STEP 6F – Set Gallons Capacity using ▼ or ▲:
• “oFF” (regeneration based on day override); or
• number of gallons (20 to 50,000).
See Setting Options Table for more detail. Press NEXT to go to step 7F. Press REGEN to
return to previous step.
STEP 7F – Set Regeneration Time Option using ▼ or ▲:
• “NORMAL” means regeneration will occur at the preset time;
• “on 0” means regeneration will occur immediately when the gallons capacity reaches
0 (zero); or
• “NORMAL + on 0” means regeneration will occur at one of the following:
• the preset time when the specifi ed number of days between regenerations is
reached; or
• after 10 minutes of no water usage when the gallon capacity reaches 0 (zero).
This display will not appear is Step 6F is set to oFF. See Setting Options Table for more
detail. Press NEXT to exit OEM Filter System Setup. Press REGEN to return to previous
step.
